AVIAO PHX PC9 PILATUS 46-55 EP PMMA1750

Ref: 221962

Estoque: Indisponível

R$ 2.394,99

Comprar

Excels at exciting aerobatics!

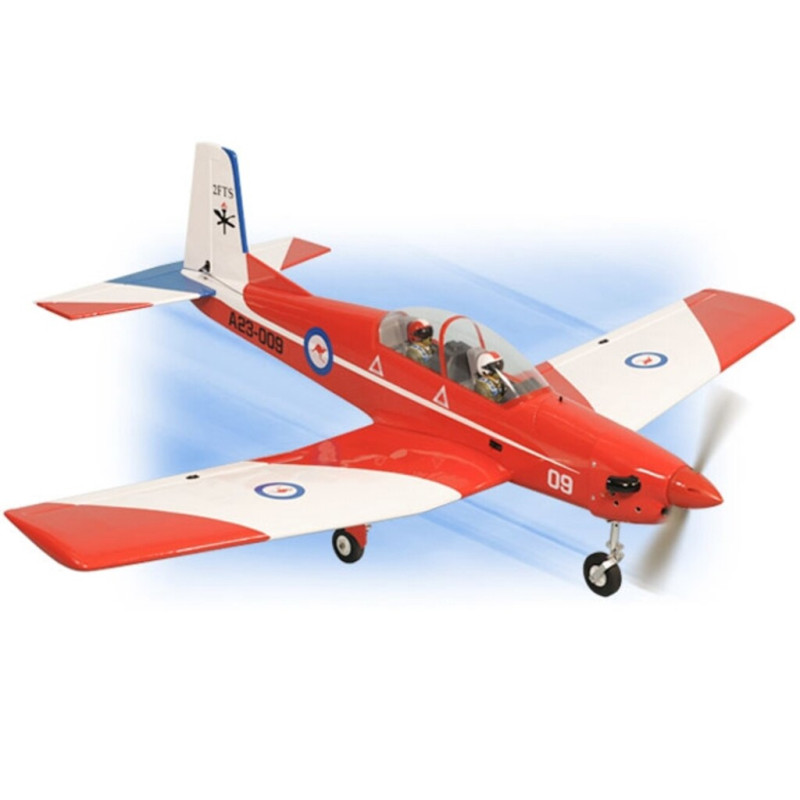

The 58.6" span PC-9 Pilatus is the ideal sport aerobat, combining first-class flight characteristics with easy assembly. Features glow and electric power compatibility, high-quality film covering, retracts and CNC struts, two pilot figures, a one-piece wing with NACA airfoils and much, much more.
Compatible with glow and electric power set-ups.
Superb flight characteristics, with an accurate scale outline.
Strong, lightweight construction.
High-quality film covering.
One-piece wing with NACA airfoils.
Retracts and CNC struts included.
Removable top battery/radio hatch.
Two pilot figures.
Servo mount.
Plastic spinner.
High-quality hardware package included.

Compatible with glow or electric power.
Includes retracts and CNC struts.
Removable top battery/radio hatch.
Includes two pilot figures.

Notes from our tech department:

This is the Radio Controlled Electric or Glow Powered Almost Ready to Fly 1/7 scale PC9 Pilatus Airplane from Phoenix Model.
For Intermediate Level Fliers.

FEATURES

Construction: Balsa and ply
Wing: Two-piece with aluminum wing joiner
Aileron Control: Dual servo
Cowl: Fiberglass
Landing Gear: Retract and CNC strut gear
Wheels: Three foam
Covering: Hangar 9 UltraCote
Motor Mount: Plywood
Engine Mount: Two-piece composite
Spinner: Red plastic, 2.3" (58mm) diameter
Cockpit: Molded plastic with clear windows

INCLUDES

ARF 1/7 scale PC 9 Pilatus Airplane with Spinner
Fuel Tank
Landing Gear
Wheels
Instruction Manual

REQUIREMENTS

Radio: 6-channel
Servos: 6 standard (2-aileron, 1-elevator, 1-rudder 1-throttle if using glow engine 2-retracts
Retract Servos: 2, Futaba S3170G recommended
Receiver Battery: 4.8-6V, 800-1200mAh NiMH

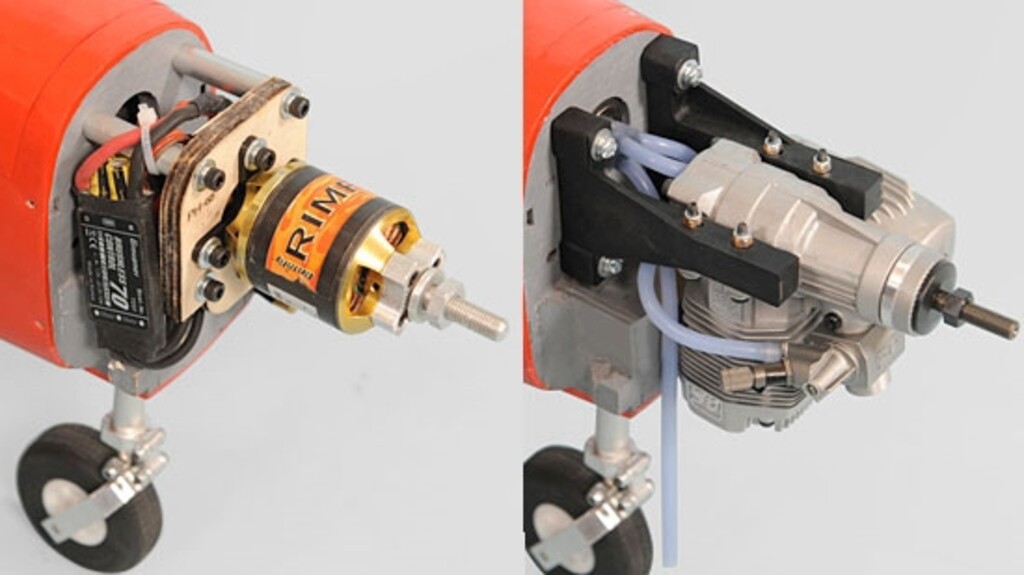

Electric Power:
Motor: Brushless outrunner, Great Planes Rimfire .46-.55 recommended
Electronic Speed Control: 50-80A
LiPo Battery: 4-6 cells 4000-5500mAh
Battery Charger: Compatible with selected LiPo LiPo charging bag Propeller to match selected motor
Glow Power:

Engine .46-.55 2-stroke or .52 4-stroke glow engine.

Fuel, glow starter and propeller to match selected engine.

Field and maintenence equipment.

SPECIFICATIONS

Wingspan: 58.6" (1490mm)
Length: 50" (1270mm)
Flying Weight: 7.05 - 7.49 lbs (3200-3400 g)
Wing Area: 604 sq in (39 sq dm)
Wing Loading: 26.87 oz/sq ft (82 g/sq dm)
Servo Mount: 0.83 x 1.6" (21 x 42mm)
Center of Gravity (CG): 3.5 - 3.9" (90 - 100mm) back from the leading edge of the wing at the fuselage side
Wing Type: Naca airfoils
Configuration: Low wing
