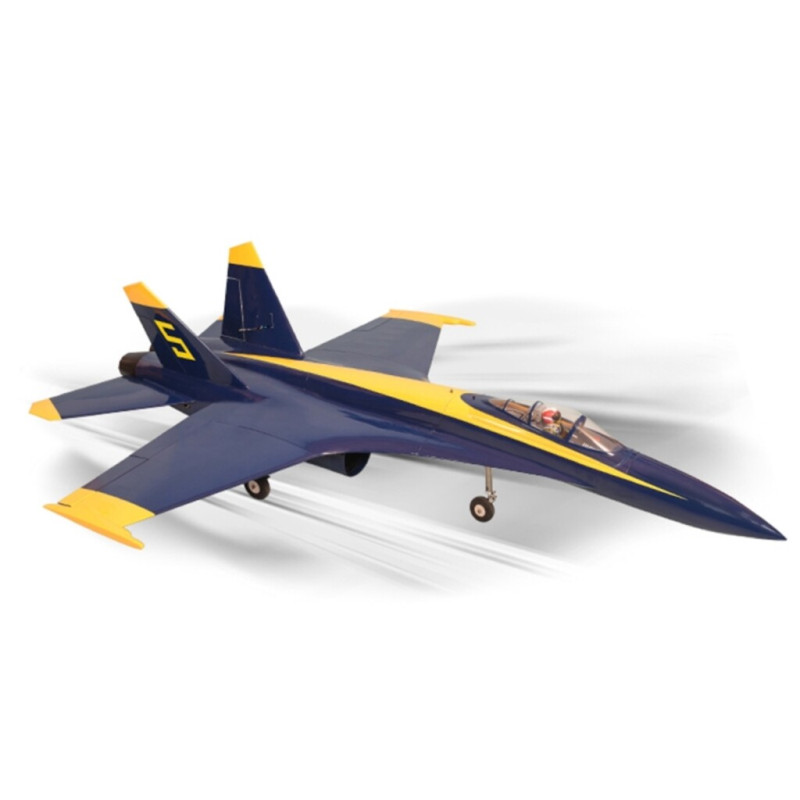

AVIAO PHOENIX THUNDER STREAK 90MM PMMA1640

FEATURES

• Construction: Balsa and light plywood

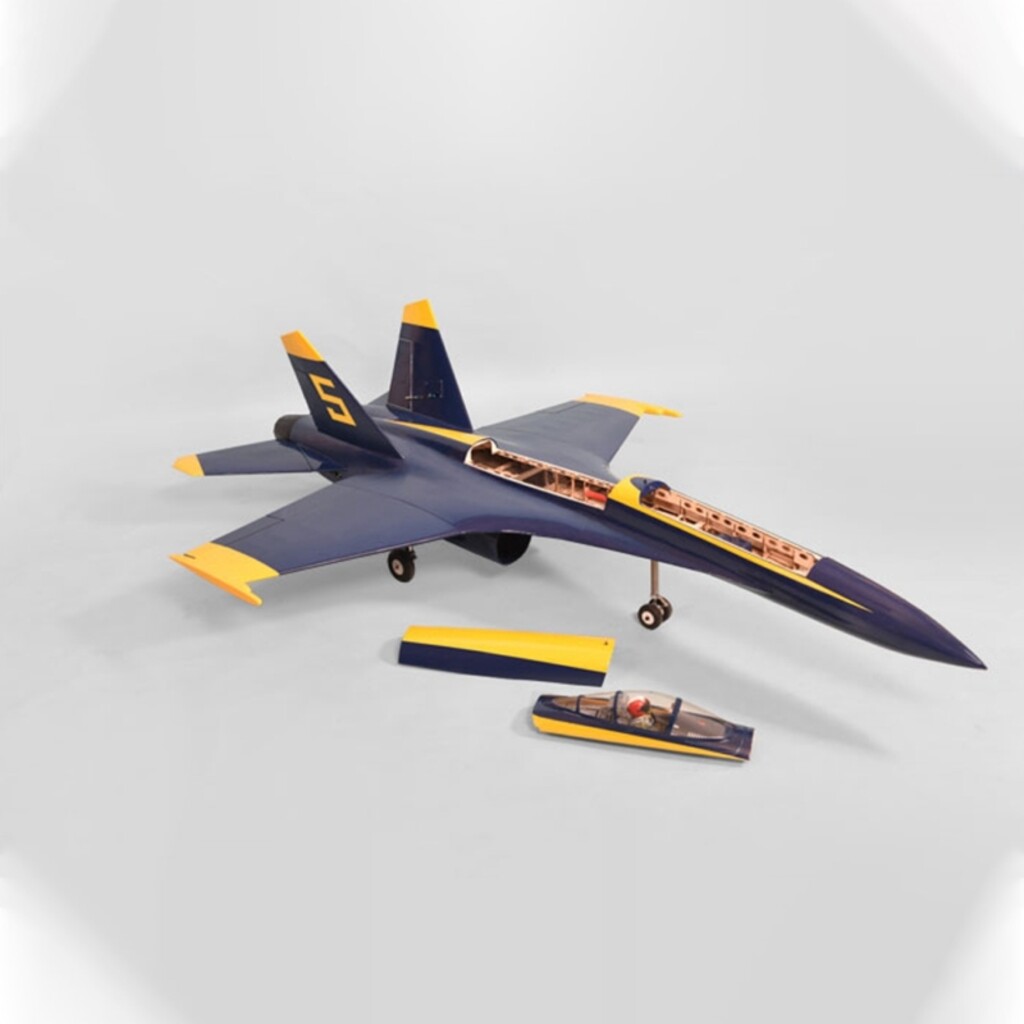

• Full-depth cockpit, instrument panel and pilot included

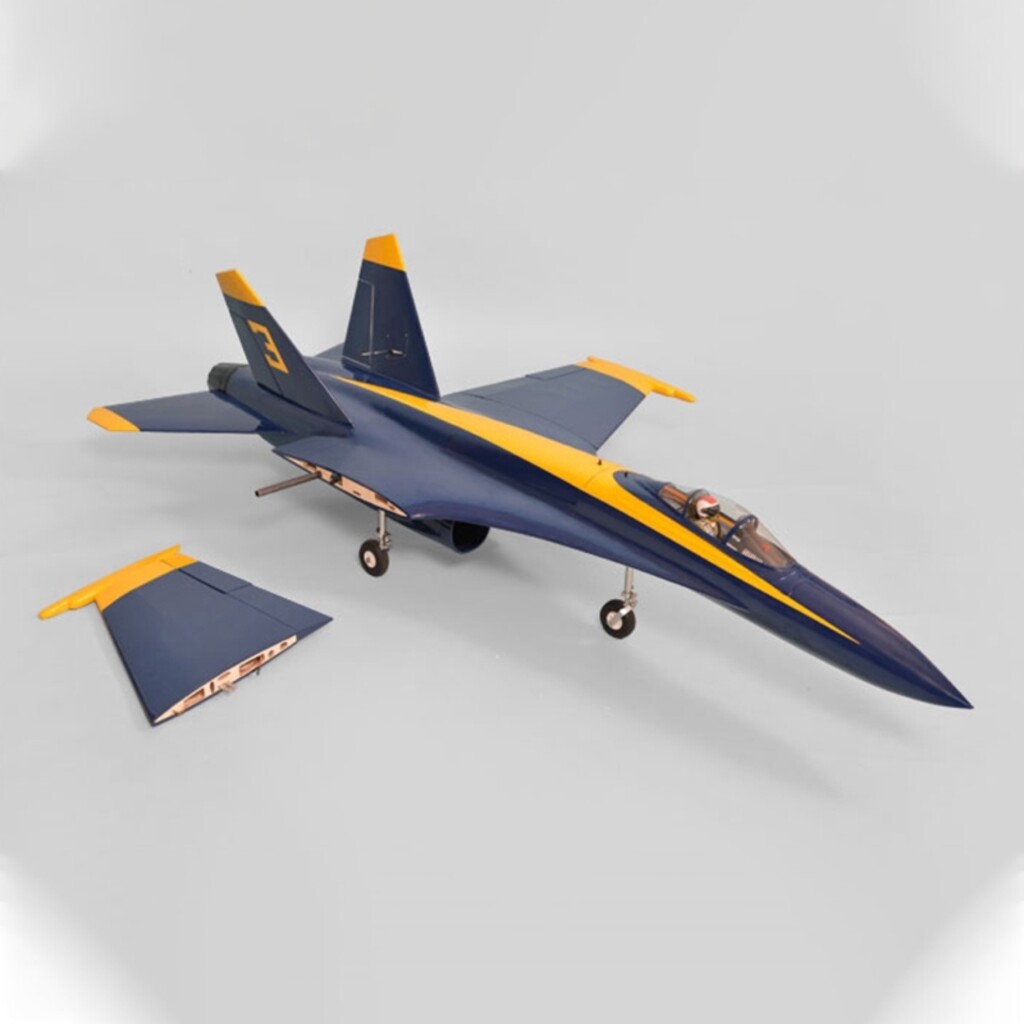

• Wing: Bolt-on two-piece, NACA airfoils
• Aileron Control: Dual servo
• Covering: High quality heat shrink covering
• Landing Gear: CNC suspension metal struts
• Wheels: --" (--mm) diameter

INCLUDES

• Thunder Streak 90mm EDF Kit with CNC Metal Struts
• Wheels
• Instrument Panel
• Cockpit and Instruction Manual

REQUIREMENTS

• Radio: 6-9 channel
• Servos: Seven mini high-torque; 2-aileron, 2-flap, 2-rudder, 1-steering nose,
• Two standard high-torque-elevator
• Lipo Battery: At least 5000mAh, 60C discharge rate
• ESC: HV 120-160 A Phoenix Castle
• EDF: 120mm, Minimum thrust 4 kg.Midi-Fan evo/
• HET 650-68-1130 WeMoTec (not carried)
• Battery Charger: Compatible with selected LiPo
• Building and field equipment

SPECIFICATIONS

• Wingspan: 45.3" (1150mm)
• Flying Weight: 11 - 11.7lbs (5000 - 5300g)
• Wing Area: 619 sq in (40 sq dm)
• Wing Loading: 40.96oz sq ft (125g sq dm)
• Center of Gravity (CG): 3.5" (90mm) back from the leading edge of the wing measured at the fuselage
• Control Throws Low Rate High Rate
• Ailerons: 8mm up/down 10% expo 10mm up/down 10% expo
• Elevators: 9mm up/down 12% expo 12mm up/down 12% expo
• Rudder: 15mm right/left 15% expo 20mm right/left 15% expo
• Flap: 15mm down 20mm down
