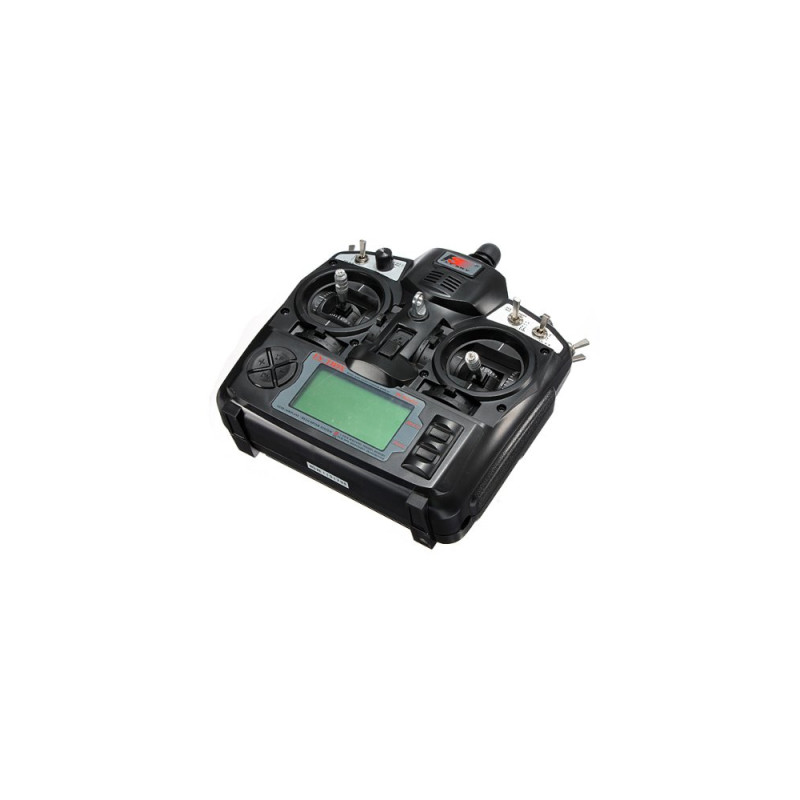

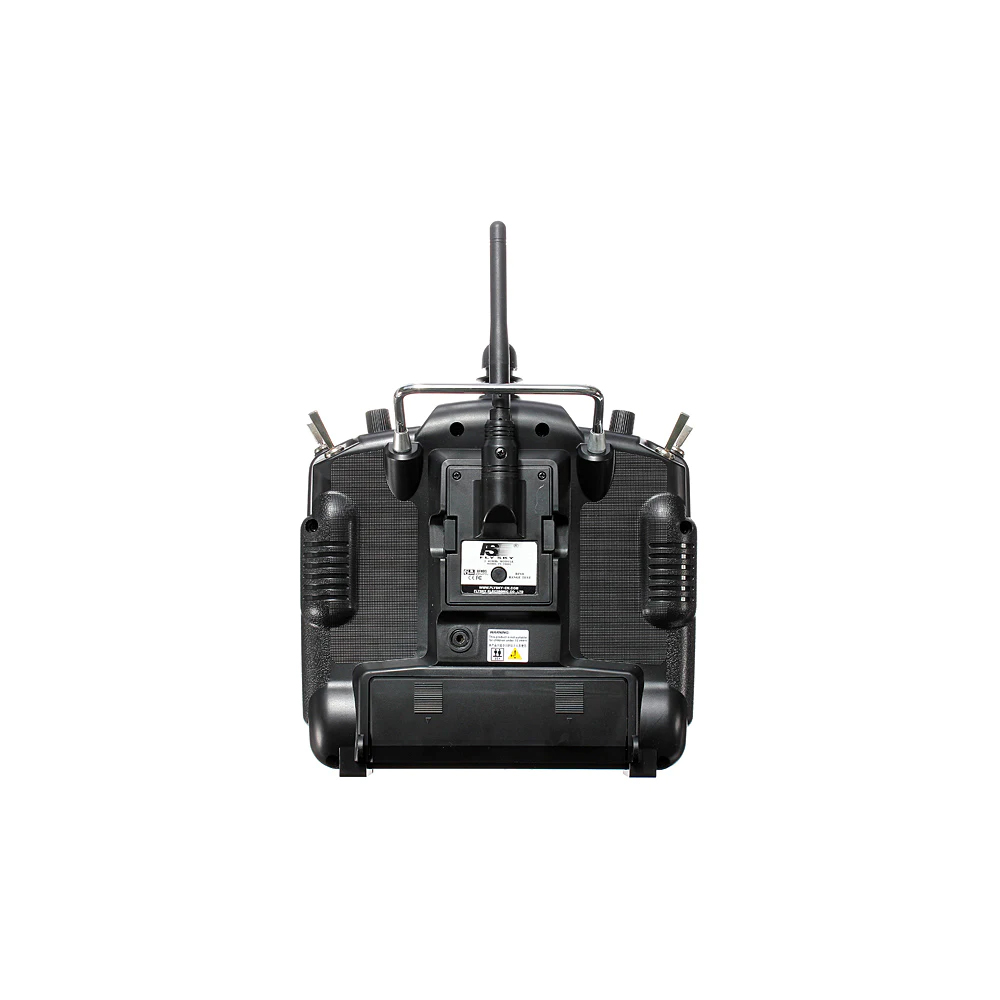

RADIO 8CH FLYSKY TH9X TX+RX 2.4GHZ

Ref: 233392

Estoque: Indisponível

R$ 857,91

Comprar

FS-Th9X has revolutionized the way people experience RC, and now this radio transmitter can stand up to the top competitions.
AFHDS (automatic frequency hopping digital system), is developed by FLYSKY for all the Radio Control model lovers and is patented by FLYSKY at home. The system is specially developed for all the Radio control models, that offers super active and passive anti-jamming capabilities, very low power consumption and high receiver sensitivity. With extreme rigorous testing by engineers and studying the markets for years, FLYSKY AFHDS is now considered to be the one of the best systems available in the market.

Specifications:

FlySky 2.4G 8CH System
Channels: 8 Channels
Model Type: glider, helicopter, airplane, also car or boat
RF Range: 2.40-2.48GHz
Bandwidth: 500Hz
Band: 160
RF Power: less than 20DB
2.4G System: AFHDS
Modulation: GFSK
Code Type: PPM/PCM
Senditivity: 1024
LCD Type: 128 x 64 dot
Low Voltage Warning: yes(less than 9V)
DSC Port: yes(3.5mm:output:PPM)
Charger Port: yes
Size: 180 x 220 x 70 mm
Power: 12VDC or 8 x 1.5AA
Weight: 670g
Mode 2 (Left Hand Throttle)

The transmitter can do:

Throttle curves
Pitch curves
Endpoint adjustments
Subtrim
Swash AFR mixes
Servo reversing
Timer
Dual rate
Exponential
Flaperons
V-Tail mixing
Elevons

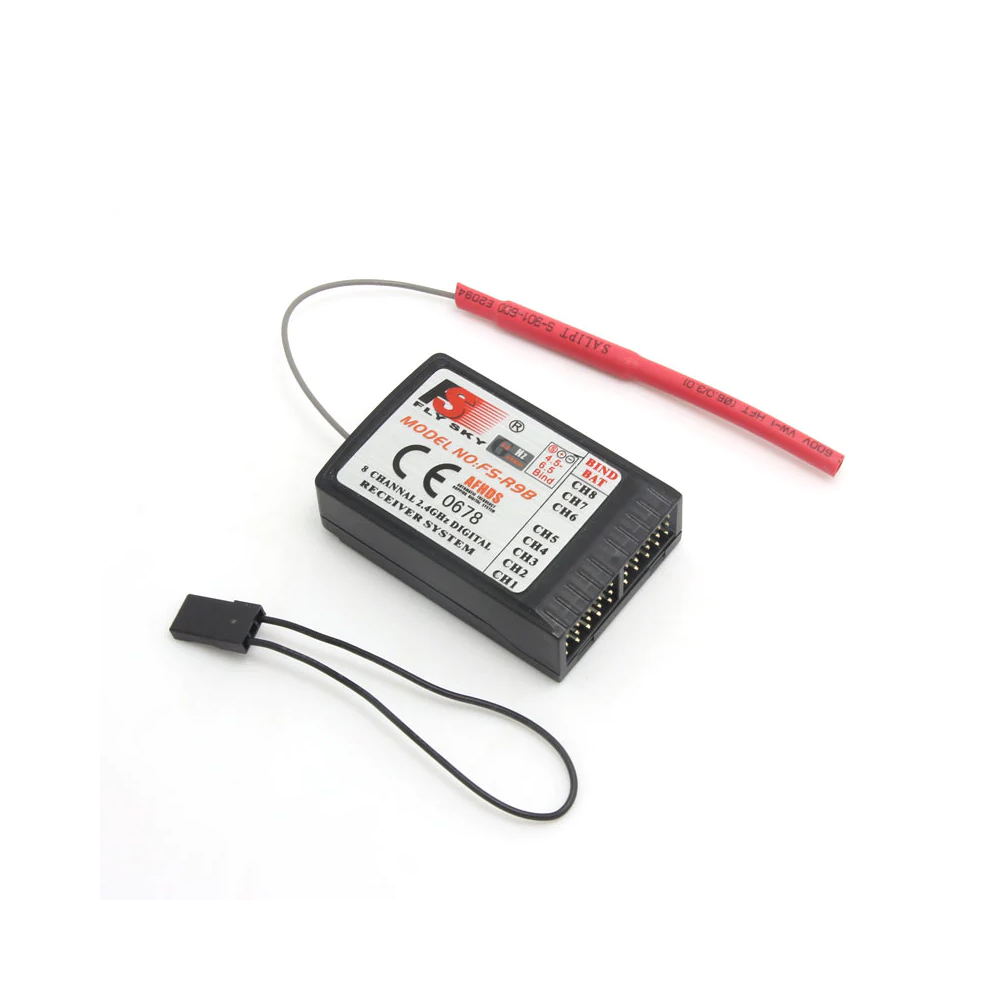

Flysky FS-R9B 2.4G Receiver:

Channels: 8channels
Modulation Type:2.4G
modulation: GFSK
Difference Frequency: No
Frequency: 2.4G
Power: 5V DC(4 x 1.5V AA)
weight: 25g
ANT length: 26mm
size: 52 x 33 x 15mm
Certificate: CE,FCC,RoHS

How to bind the RX (receiver) to the TX (transmitter):

1. Plug bind plug into BAT, turn on plane/heli, the LED light should flash (make sure power is connected to RX via ESC)
2. Hold down bind button on transmitter module while turning on the TX
3. The light should go steady now
4. Let go of bind button, turn off plane/heli, remove bind plug, turn off TX
5. Turn on TX and then turn on plane/heli
