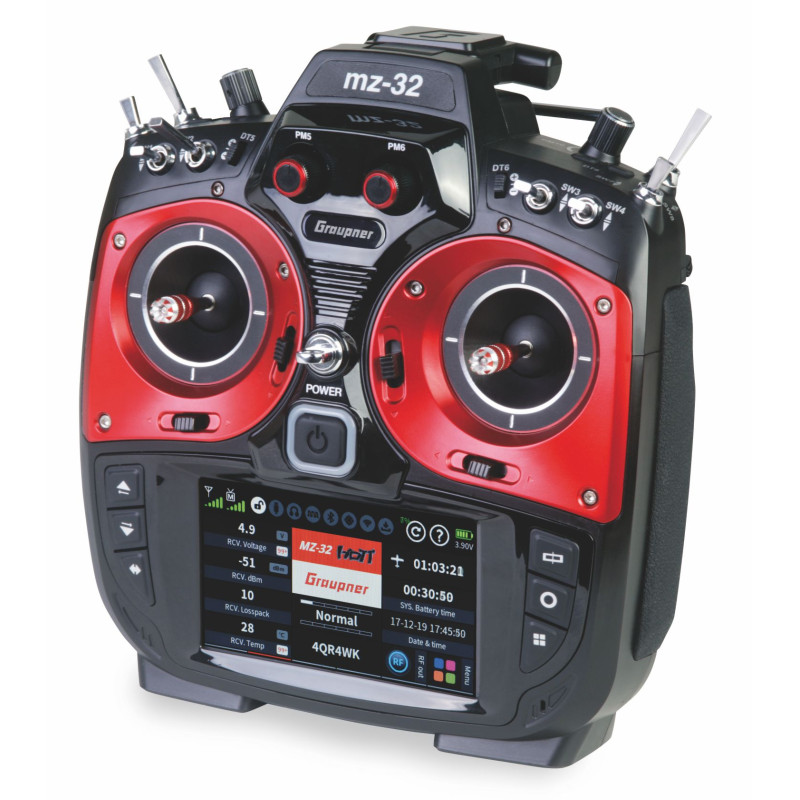

RADIO 32CH GRAUPNER MZ-32 S1024

Ref: 290197

Estoque: Indisponível

R$ 6.803,92

Comprar

THE mz-32 IS CENTERED AROUND YOU

The Graupner mz-32 is our third generation telemetry radio system that advances RC radios to a level never seen before. With its rich set of hardware and software features, the mz-32 is introducing a new level of functionality where you, the user, can control almost any part of the radio.

BE IN CONTROL WITH THE mz-32 !

The mz-32 brings you the power to design your own screens, program your own control logic, filter your own voice notifications and even design the looks of your radio.

FLY SMOOTHER AND BEYOND WITH THE mz-32

The Graupner mz-32 is the first radio on the market that provides full 32 channel functions right out of the box! It supports five different model types such as electric, gas or turbine airplanes, helicopters, multirotor, cars and even boats.

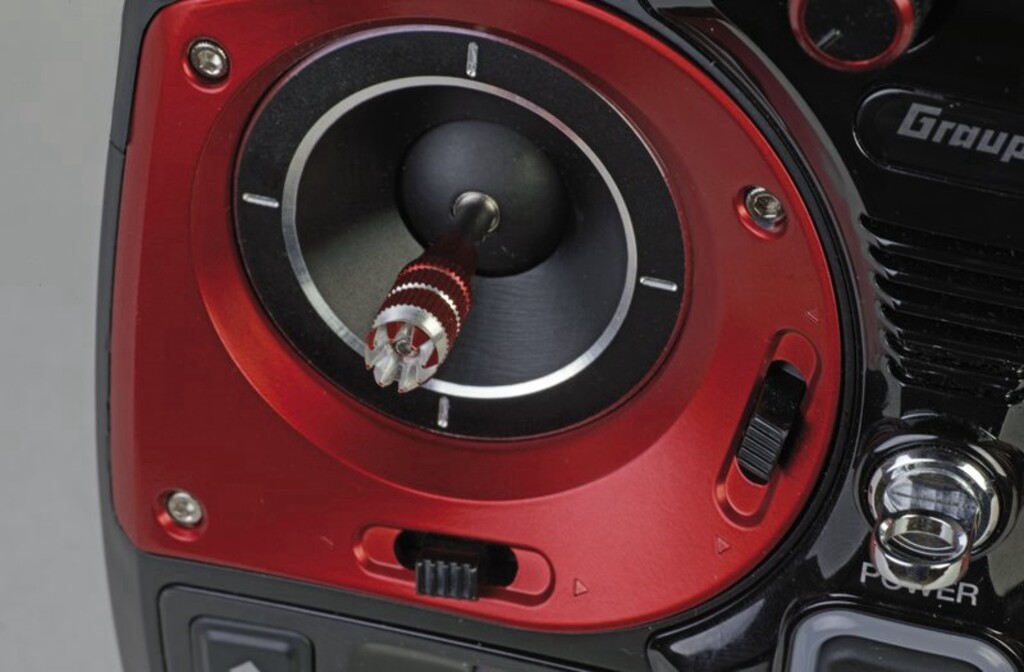

It can store and load up to 999 different user models, has 12 flight-phases and 16 curve mixers which can be set global or flight-phase dependent! The hall sensor 4096 resolution quad bearing gimbals provide the smoothest control feel a pilot can experience. The sealed gimbals can weather almost any field conditions and offer easy back-access for adjustment to fine-tune the stick tension the way you like.

The mz-32 has a dual 2.4GHz redundant RF system driving a polarized patch antenna for unmatched signal quality and extended range. The included 9000mAh LiPo battery will provide more than 10 hours of operating time, which makes a long day at the field both possible and fun!

THE mz-32 ADAPTS TO YOU

The outdoor friendly 4.3-inch state of the art TFT color touchscreen ensures convenient access to all the mz-32 functions for setting up and managing your models.The highly optimized and fast performing graphical user interface is driven by a high-performance processor making access to menus and functions fast and crisp just like on your Smartphone. The intuitive touch and tap control makes navigation around the menus fast, easy and fun!

The mz-32 is not only fast and responsive but is also fast to load. You will be using your mz-32 from power up in 10 seconds!

Designing your own screen layouts to display information or create menu shortcuts can be done on the fly by simply tapping on the screen.The mz-32 provides over hundred widgets which make up the screens that you like and fit your style for controlling your models.You can create in total six screens that better fit your needs and personal style using the tip of your finger. No programming needed! You can do it all with the mz-32.

One radio for all! German, English, French and Italian language is supported with more languages to come all in one radio!

MORE CHANNELS MORE CONTROL FOR YOU!

With 32 channels the mz-32 provides unlimited functionality and control over any model that you have. You can bind up to four 2.4GHz receivers so you can layout and distribute the channels the way you want.

For example, you can have two six-channel receivers for each wing from where you can control ailerons, flaps, landing gear, and lights. Just supply main power to the wing, and you are ready to go.

No complicated wiring or expensive hubs needed! This provides you with a level of simplicity with the benefits of RF redundancy unseen before in the industry.

Still need more channels but do not have enough switches to do what you want? The mz-32 now also provides up to 64 digital switches that can be assigned and controlled from the widget menu with a simple tap. Create as many digital switch combinations as you like for turning lights and smoke on or off, turn cranes or water guns or anything else that you need to control without using up your switches.

Switching and control options are further enhanced with Logical Switches (And, Or, Equal, Not), Control Switches, and Combination Switches. Each provides a new level of control to you depending on switch position or stick locat.

VOICES YOU WANT TO HEAR !

Need to hear what is going on? The mz-32 provides endless options to generate almost any type of system or telemetry voice notification depending on the state of your radio such as switch positions, flight phase names, warnings, vario information and endless others.

The mz-32 starts communicating with you from the moment you turn it on, informing you if a switch or control is in the wrong position for the selected model. No more surprises from collapsing landing gear, runaway motors or wrong gyro settings. The mz-32 can inform you when needed even when you forgot to bring down your landing gear or are about to run out of range or battery.

Walks of shame are now a thing of the past!

With over 600 installed voices and unlimited voice combinations, you can make almost any voice announcements or add as many as you want using our text to speech editor.

INSTANT HELP WHERE YOU NEED IT !

In need of help during setup or when something is unclear? Forget about searching through lengthy manuals or endless web searches! The mz-32 provides support right where you need. Each menu and option has its own context-sensitive answers right on the screen. Just tap the question mark and you will be instantly presented with help and assistance.

Don’t like our help screens? Make or add your own help screens with whatever makes sense to you. The mz-32 is there for you allowing you to do and have the things you like the most.

CONNECTIVITY THAT TAKES YOU FURTHER !

With integrated Bluetooth and Wi-Fi the mz-32 is ready to connect you with the rest of the world! Use your Bluetooth headset to hear voice alerts or music from the built-in music player. It's your choice!

Connect to your wireless LAN to receive notifications about newly released firmware that are instantly downloaded and installed on your radio. Your mz-32 is always up to date with the latest and greatest! The update can also be done by using the included USB cable and the latest firmware which you can always find on our website.

Graupner takes connectivity further with a micro USB port that can charge your radio, access your included 16GB micro SD memory card where screens, models, voice files, music and screen shots are stored.

You can use the USB or DSC port also as a joystick controller for games and flight simulators. Now you can practice flying your model on your favorite flight simulator with the same radio that you use at the field!

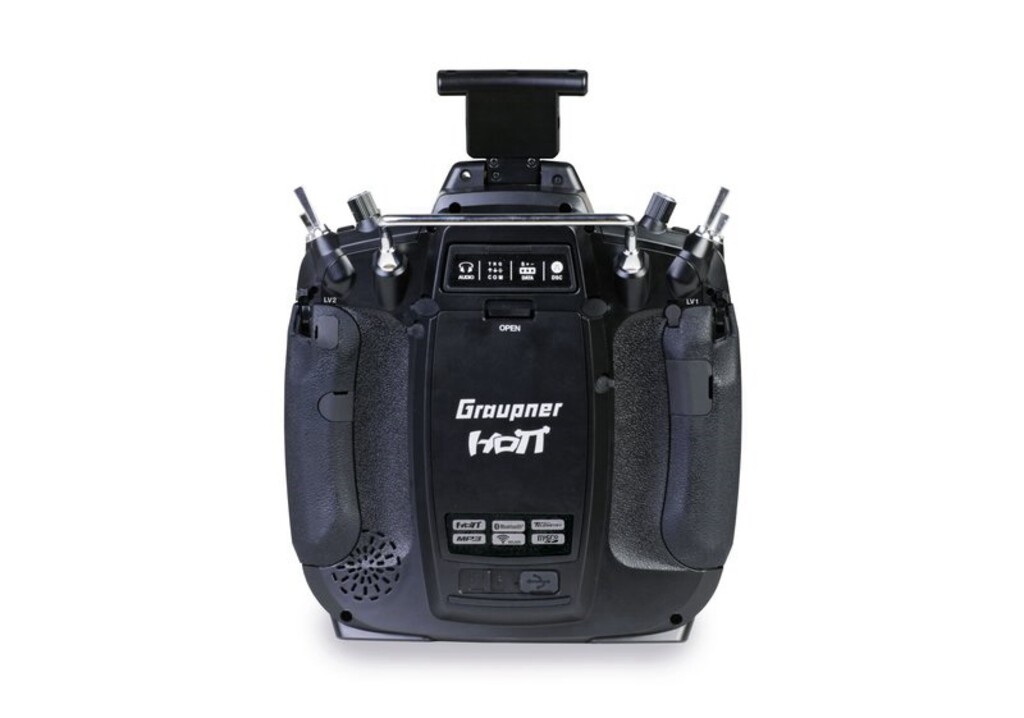

The data port on the back can be configured to output a variety of digital signal outputs like SUMD, CROSSFIRE, Smart Box, and more. Adding and using third-party modules such as long-range FPV has never been easier than with the mz-32.

All Graupner HoTT receivers now also support digital single wire output such as PPM, SUMD, and SBUS for more connectivity and better interoperability.

The built-in file manager lets you manage things like voice files, screenshots, and more from wherever you are!

SUPPORTED PROTOCOLS

HoTT-PC

Smart-Box

External Monitor

SUMD

DSMX, DSM2 (Data Output)

CROSSFIRE V1/V2

I/O SETTINGS MENU

USB TYPE SELECTION MENU

SUMD - PPM - SBUS OUTPUT

WIRELESS CONTROLLERS SETUP.

Computers, wirers, and programming boxes are things of the past! The mz-32 HoTT wireless protocol lets you do everything right on the radio! Need to set up your telemetry, flight controller or reverse the direction of your telemetry ESC or flight controller? Just use the shortcut key on the radio to access any of the receiver connected devices, and you are immediately in business. Do this at home while setting up your model or at the field to fine-tune your settings.

Enjoy the HoTT integration of third-party flight controllers and sensors like Ikon, Spirit, 3Digi, MSH-Brain, SM Modelbau and many more for easy access using only your mz-32 radio. Each of Graupner's HoTT receivers provides this functionality, and there is no need to purchase anything else to use these convenient features.

TRAIN YOUR BUDDIES

Training your family members or friends is as easy as bind and teach! The mz-32 provides a wireless and wired trainer support that can be used with any of our HoTT radios using the DSC port in the back.

You can assign control to any of the active channels depending on your student's level and model capabilities. Passing control is easily done with a flick of a switch.

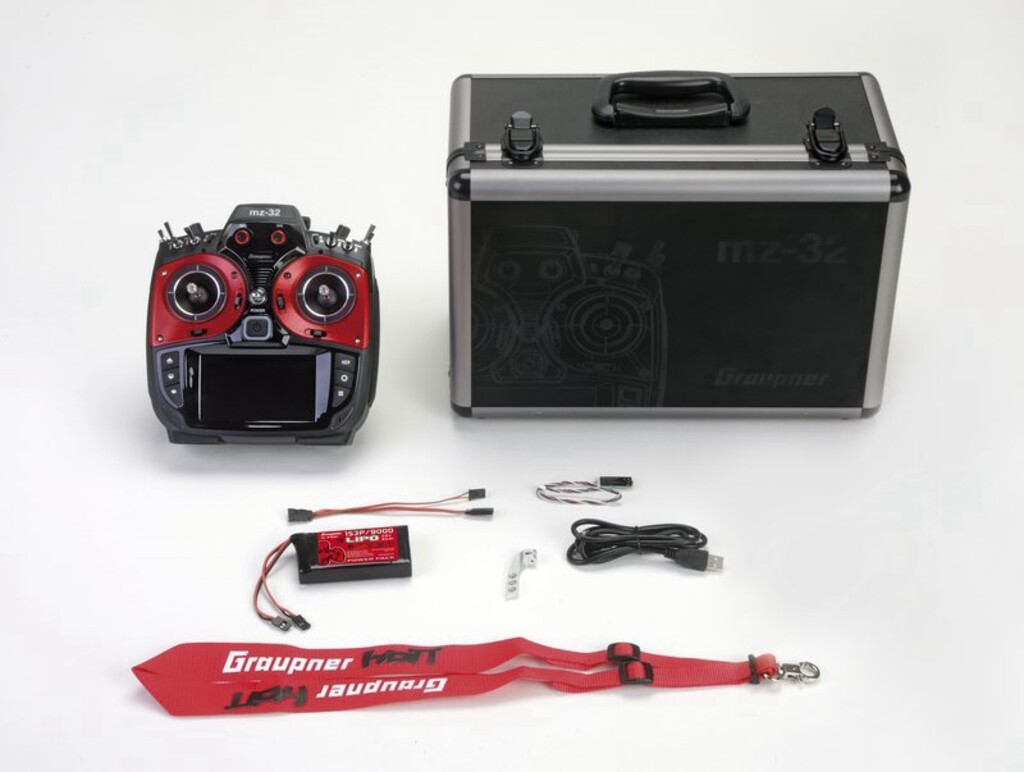

Includes

mz-32 transmitter

USB charging cable

USB update adapter

LiHV battery 9000mAh

Transmitter stand

Neck strap

Neck Strap Balancer

Aluminum radio case

RADIO 32CH GRAUPNER MZ-32 S1024
