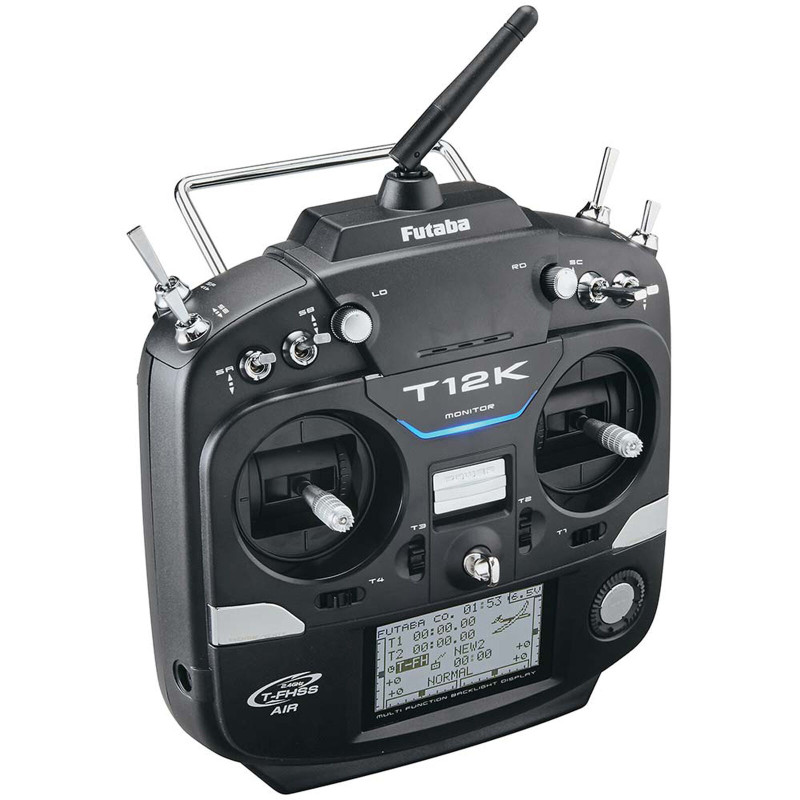

RADIO 12KA R3008SB T-FHSS AIR FUTK9280

Precise performance for every pilot.

• Channels: 14 (12 proportional, 2 switched)
• Compatible with T-FHSS and S-FHSS protocols
• Six 3-position switches, two 2-position switches, two slider levers, two rotary dials, four digital trims and two push buttons for quick, easy access.
• Headphone plug, trainer port and S.Bus plug-in.
• S.Bus2 system allows multiple servos, gyros and telemetry sensors with a minimum number of cables.
• Model types: six types of main wing with three tail types for airplanes, six swash types for helis and multi-rotor functions.
• Improved stick feel with adjustable lengths and tension.
• Dual rates and exponential.

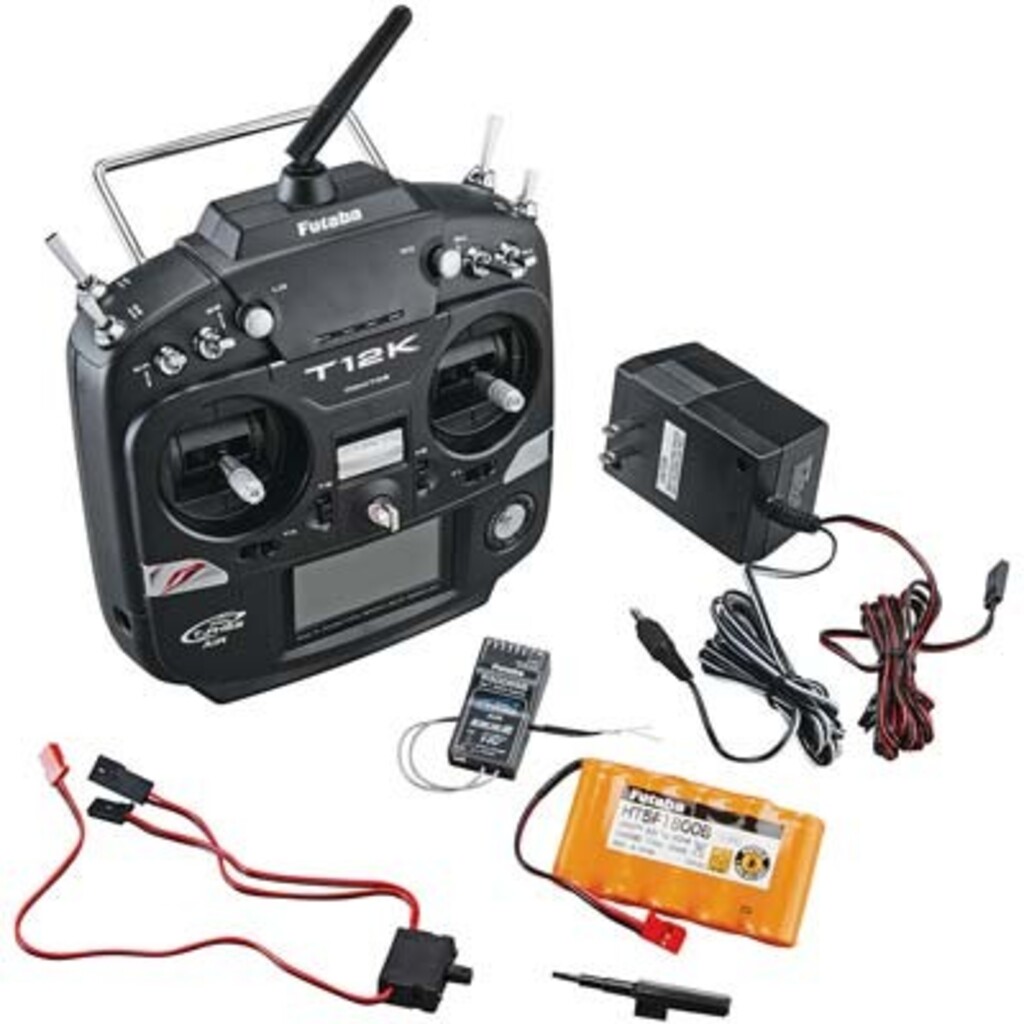

• Included 6V 1800mAh NiMH battery and charger.
• Large, backlit LCD screen with adjustable contrast for easier reading. Push/dial operation simplifies set-up.
• Micro memory card slot for storing model information and free system updates. (SD-32MB to 2GB; SDHC-4GB to 32GB, not included).
• Vibration feature alerts pilots to various alarms and timers, in addition to sound.
• 10-character model naming.
• 5 flight conditions (Helicopter and Glider model selections)
• 5 customizable programmable mixes
• Servo test and servo position display
• Fuel mixing.
• Stick calibration.
• Servo speed.
• Logic switching.

• 6 wing types.
• 3 tail wing types.
• 5 flight modes.
• Servo test and servo position display.
• Dual rates.
• Pitch curve.
• Throttle curve.
• Throttle delay.
• Aileron differential.
• Flap setting.
• Aileron to camber flaps.
• Aileron to brake flaps.
• Aileron to rudder.
• Rudder to aileron.
• Camber mix.
• Elevator to camber.
• Camber flap to elevator.
• Butterfly function.
• Trim mix.
• Air brake.
• Gyro mix.
• V-Tail.
• Ailevator (dual elevator).
• Winglet.
• Motor speed.
• Rudder to elevator.
• Snap roll.
• Multi engine functionality
• Airbrake.

• Six swash types.
• Pitch curve and pitch trim.
• Throttle curve and throttle hover trim.
• Throttle hold.
• Swash ring.
• Pitch to needle.
• Pitch to rudder (revolution mixing).
• Gyro mixing.
• Governor mixing.
• Timer settings.
• Throttle percent timer.

• Six wing types.
• Three tail wing types.

• Throttle stick position warning.
• Gyro sense.
• Flight mode.
• Throttle curve.
• Throttle delay.

• T-FHSS protocol
• Dual Antenna Diversity
• S.Bus/S.Bus 2 ports (S.Bus 2 port for bidirectional telemetry sensors)
• 8-channel PWM conventional ports
• High voltage
• Battery fail-safe
• External voltage port: 0-70V DC
• Power requirement: 4.8-7.4V
• Dimensions: 0.98 x 1.86 x 0.56 in (24.9 x 47.3 x 14.3 mm)
• Weight: 0.36 oz (10.1 g)
