RADIO 8JA 2.4GHZ AIR TX/RX FUTK8100

* Não acompanha servos e baterias.

This is the Futaba 2.4GHz S/FHSS 8JA Radio System with the R2008SB S.Bus capable Receiver.

Does not include servos.

The 8J 2.4GHz transmitter is "full range".

This is the airplane version which will default to airplane settings when powered up and has a ratcheted throttle stick.

FEATURES

Futaba S-FHSS 2.4GHz security (also FHSS compatible)

Transfers model data wirelessly to and from one 8J to another

Capable of 4 channels only in FHSS mode

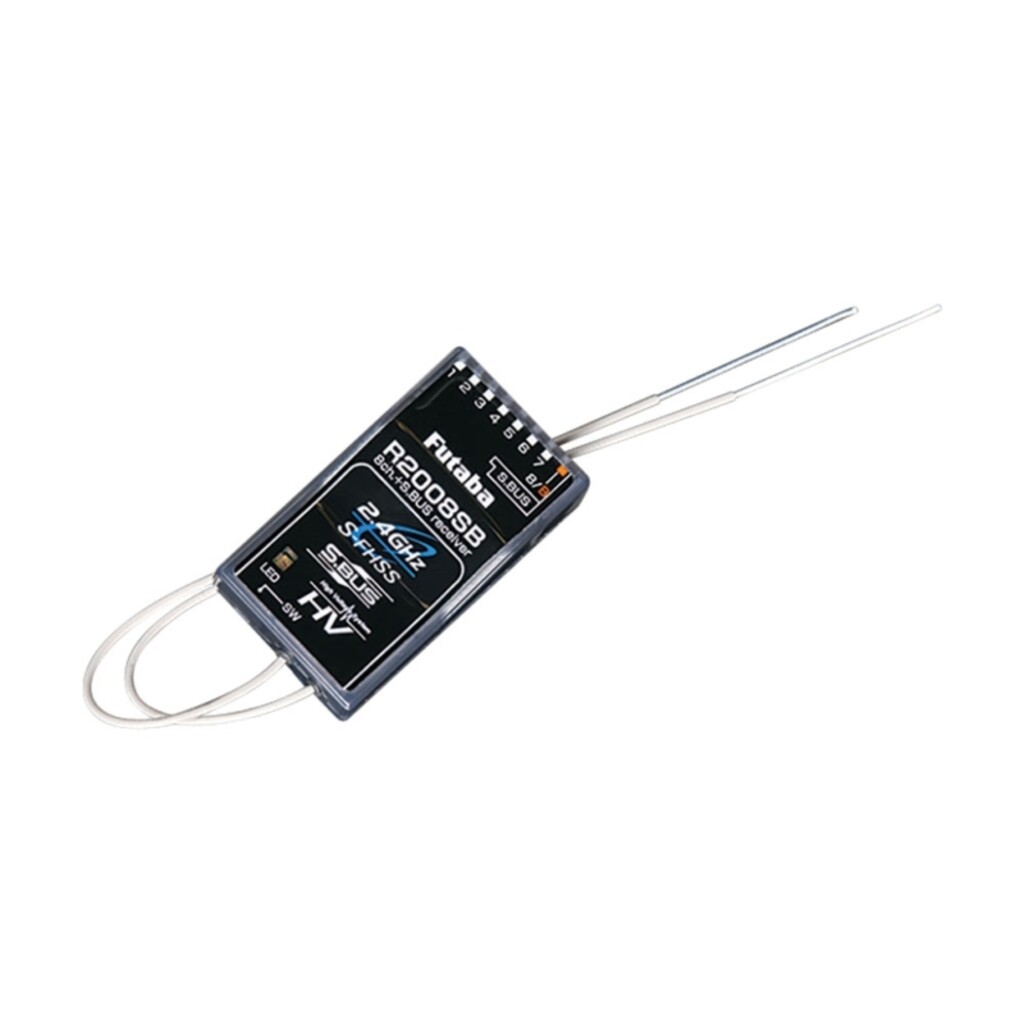

R2008SB receiver offers 8 PWM channels, S.Bus and HV capability and Dual Antenna Diversity

Airplane and helicopter modes

20 model memory with 10 character model and user naming

Large backlit LCD display (128 x 64 dot)

8 channels (one varible knob, five 2-position switches, two 3-position switches, one momentary switch and two digital levers)

Failsafe on all 8 channels

Easy jog dial and three button programming

ATL

Aux channel switch/level assignability

One year limited warranty through Hobby Services beginning at date of purchase
Airplane Mode Features;

6 Programmable Mixes Snap Roll

Flaperons with Differential Rate Elevator/Flap Mixing

Flap Trim Airbrake/Landing

Differential Ailerons Aileron/Rudder Mixing

V-Tail Mixing Flap/Elevator Mixing

Elevon Gyro Sensitivity

Ailevator Throttle Curve (five points)

Throttle Needle Mixing (five points) Throttle Delay

Idle Down (any switch selectable)

Helicopter Mode Features;

8 Swash Plate Types

5 Flight Conditions (normal, idle up 1, idle up 2, idle up 3, hold)

Throttle Curve (five points, five curves)

Throttle Hold

Hover Pitch Mixing

Hover Throttle Mixing

Gyro Sensitivity/Mixing

Governor Setting/Mixing

Hi/Lo Pitch Mixing

Offset Mixing

Condition Delay

Throttle mixing (swash>throtttle)

Throttle/Needle Mixing (5 point curve)

Swash AFR

Swash Mixing

Electronic Swash Ring

Throttle Delay

Revolution Mixing

6 Programmable Mixes

INCLUDES

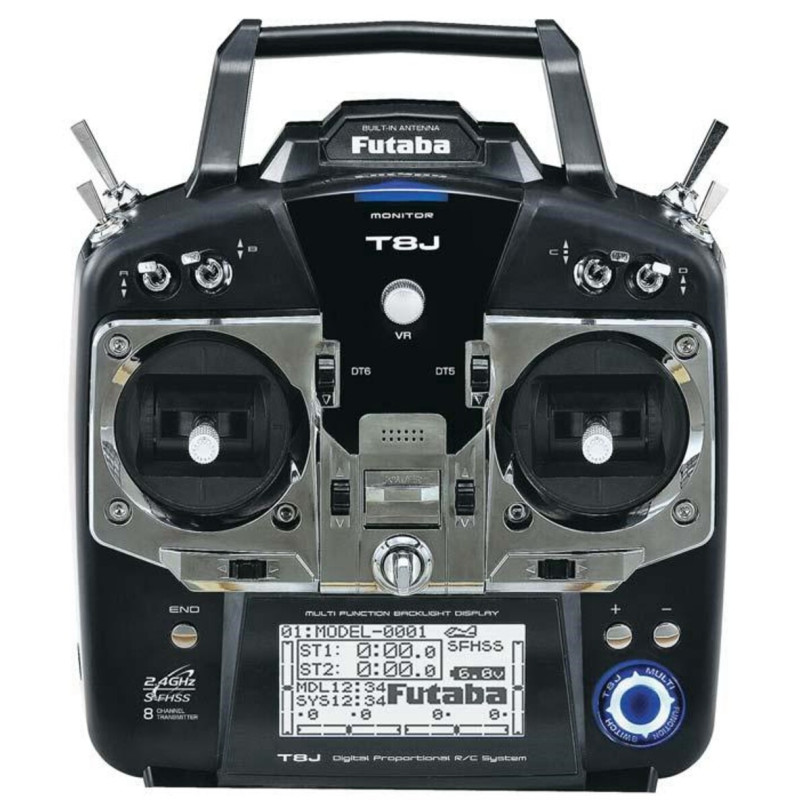

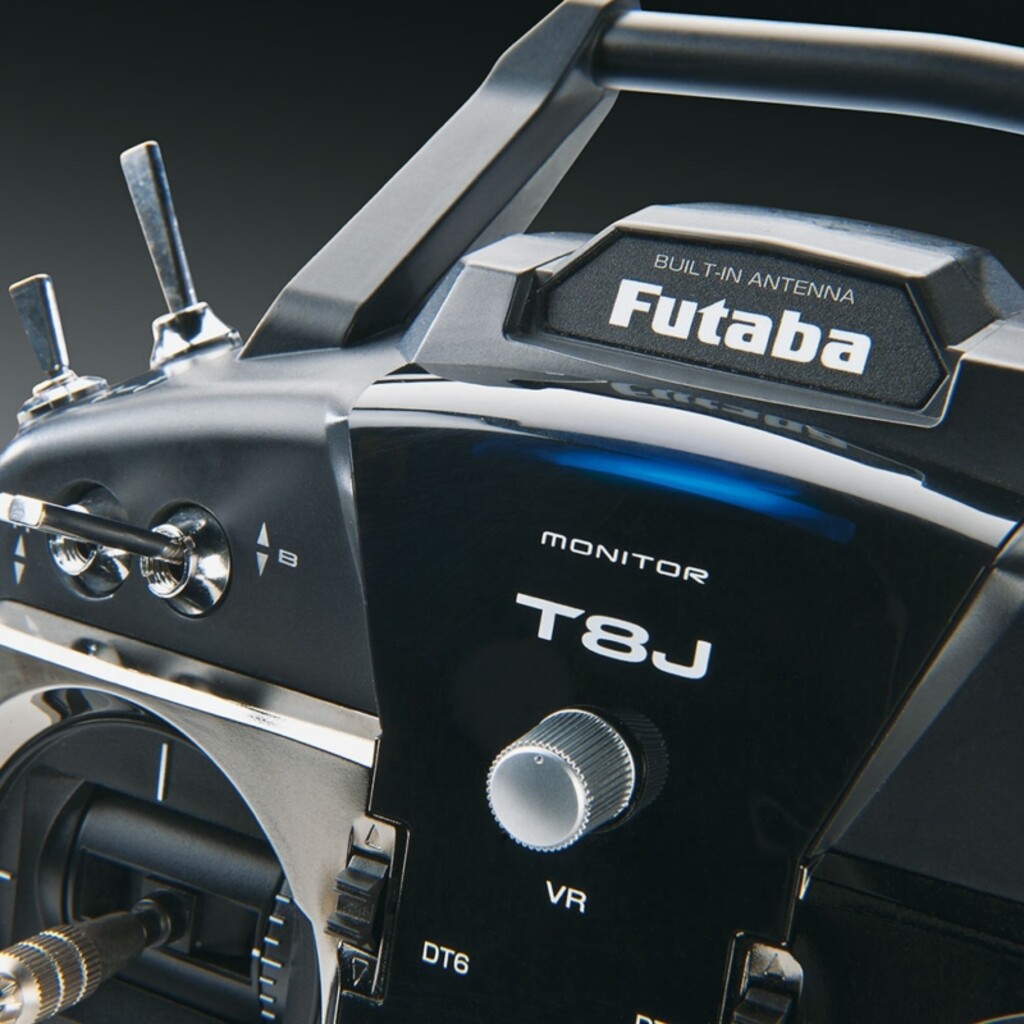

8J Transmitter

R2008SB 8-channel Receiver

Neckstrap

On/Off Switch

Instruction Manual

REQUIREMENTS

Four AA batteries for transmitter

Servos of modeler's choice
