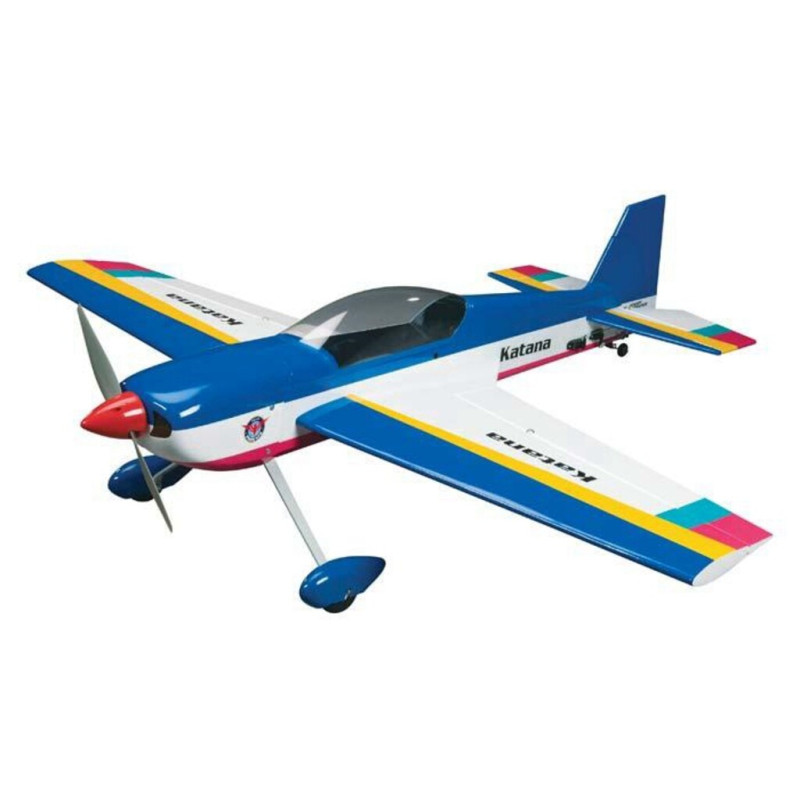

AVIAO PHOENIX KATANA EP ARF PMMA0355

Ref: 63890
Estoque: Indisponível
R$ 1.543,54
Comprar

This is the radio controlled, electric powered, almost-ready-to-fly Phoenix Models Katana Scale Aerobatic Airplane.

Recommended for Intermediate Pilots.



FEATURES:

  • Construction: Built-up balsa and plywood, prebuilt plywood motor mount
  • Covering: Pre-applied, color scheme is white, pink and blue with yellow and blue
  • Wings: Two-piece wood with aluminum joiner tube
  • Radio Compartment: Plywood reinforced
  • Cowling: Painted fiberglass
  • Canopy: Clear
  • Wheel Pants: Painted fiberglass
  • Landing gear: Pre-bent 0.14" (3.5mm) aluminum with 2-1/2" (63mm) treaded rubber main wheels and one 1" (25mm) rubber tail wheel with pre-bent 0.078" (2mm) thick wire
  • Spinner: 2.25" (57mm) red plastic
  • Building Time: Ready to fly in 6-8 hours
  • Aileron Control: Dual servo
  • Hardware: Hinges, wing bolts and all other required fasteners included



INCLUDES:

  • Prebuilt and pre-covered wings fuselage and tail section
  • aluminum main landing gear
  • tailwheel wire
  • prebuilt plywood motor mount
  • main and tail wheels
  • pre-bent pushrods
  • hardware package
  • fiberglass cowling and wheel pants
  • clear canopy
  • decals
  • photo-illustrated instructions



REQUIRES:

  • Motor: Brushless outrunner such as the Great Planes ElectriFly RimFire .32 42-50-800
  • ESC: 45A
  • Battery: 3350mAh 4S LiPo
  • Battery charger and balancer
  • Radio: Four channel
  • Servos: Five mini (2-ailerons, 2-elevator, 1-rudder)
  • Servo Extension: One 6" (152mm) for ailerons
  • Y-Harness: One for aileron servos
  • Propeller: 12x6E
  • Misc. Items: Foam rubber padding, building and field equipment



SPECS:

  • Wingspan: 49.6" (1260mm)
  • Flying Weight: 56.4 - 77.6oz (1600 -  2200g)
  • Wing Area: 598 sq in (38.6 sq dm)
  • Wing Loading: 19 oz/sq ft (58 g/sq dm)
  • Length: 49.7" (1262mm)
  • Airfoil: Symmetrical
  • Center of Gravity: 3.5" (90mm) Back from the wing's leading edge at the fuselage sides.
  • Control Throws-
  • Ailerons: Up & Down   0.79" (20mm)
  • Elevator: Up & Down   0.79" (20mm)
  • Rudder: Right & Left  2.0" (50mm)
