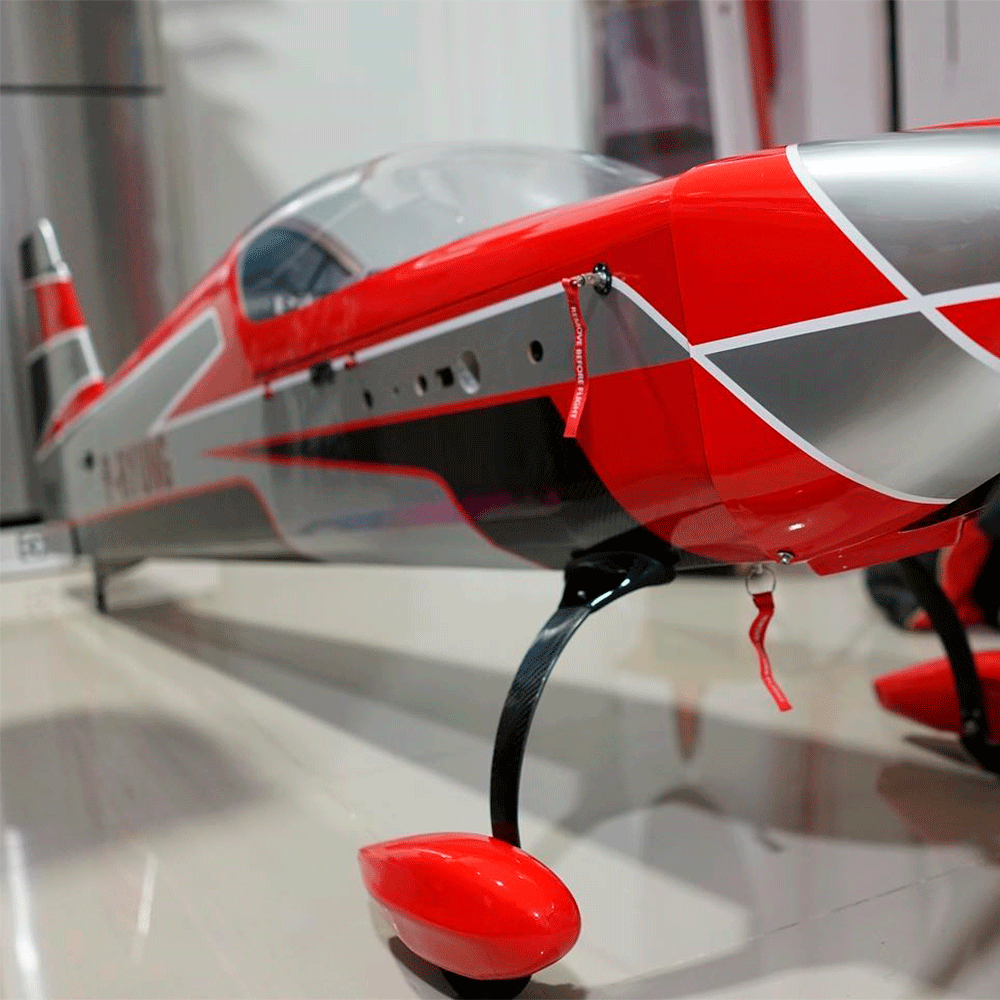

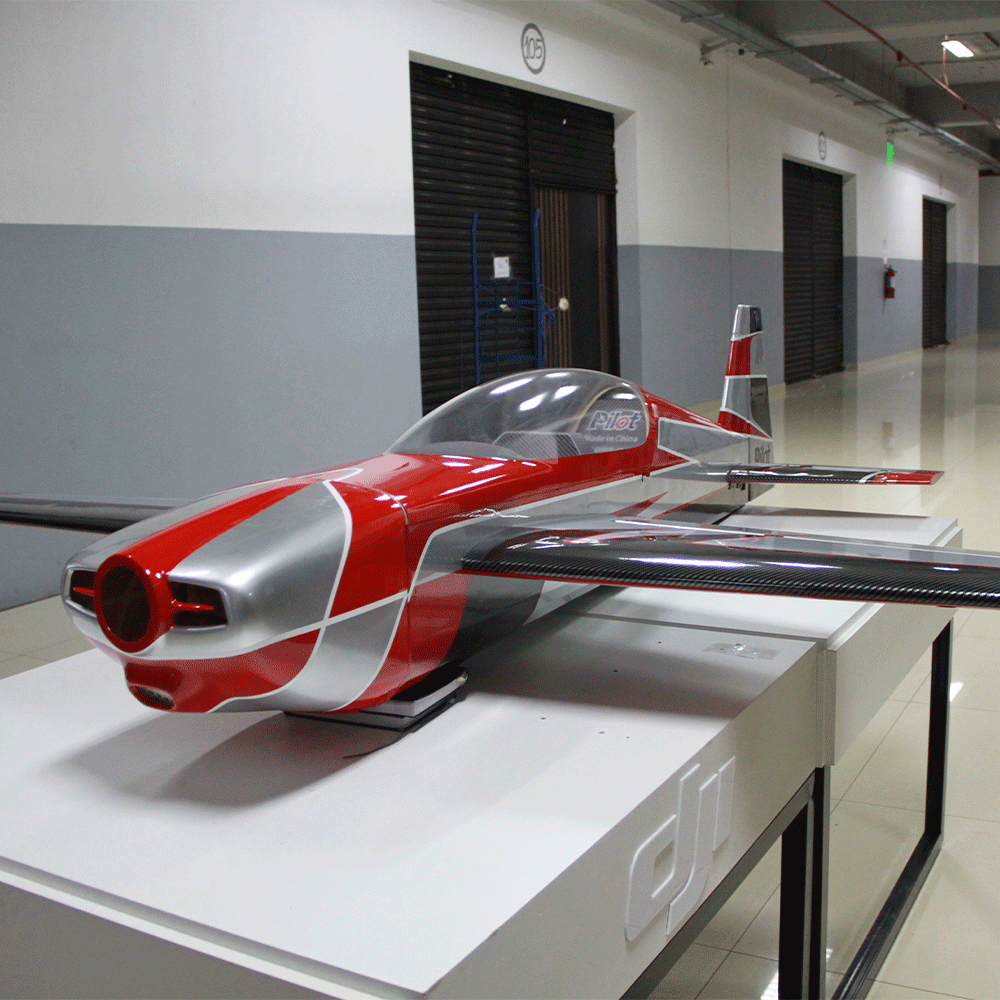

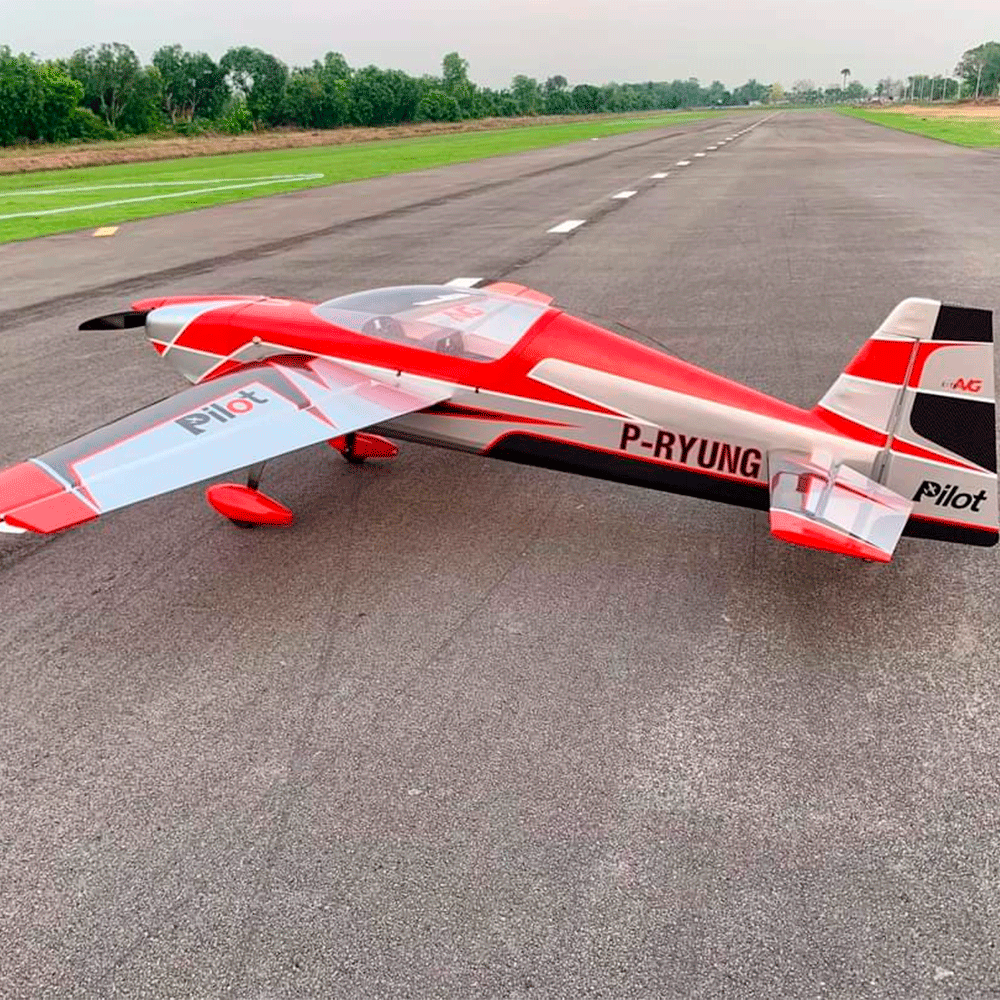

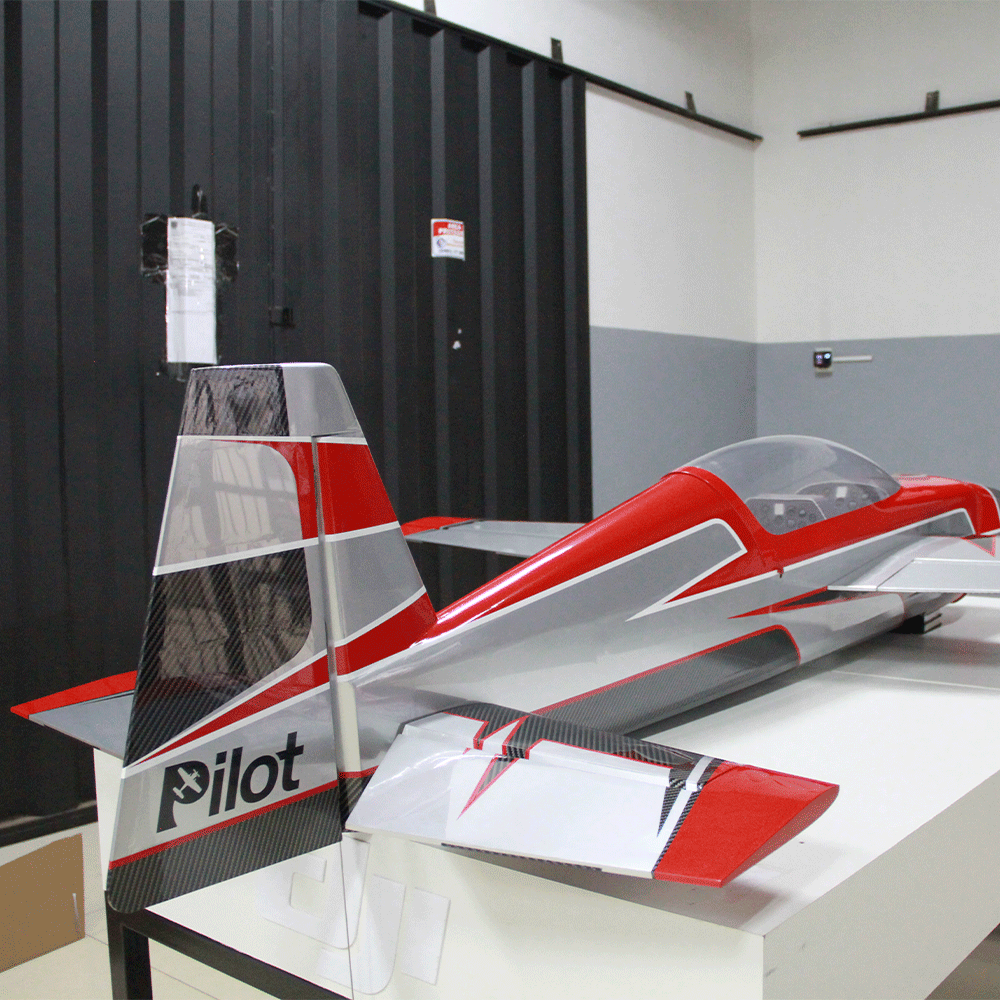

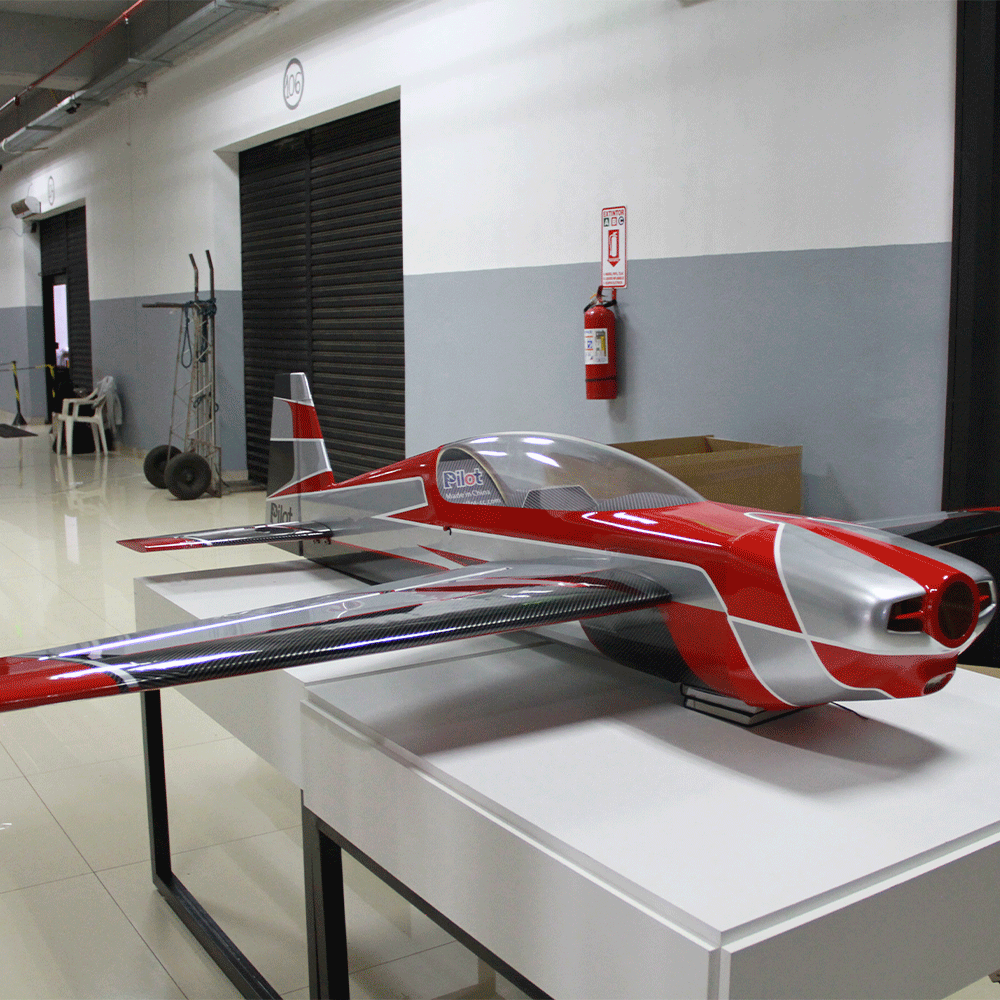

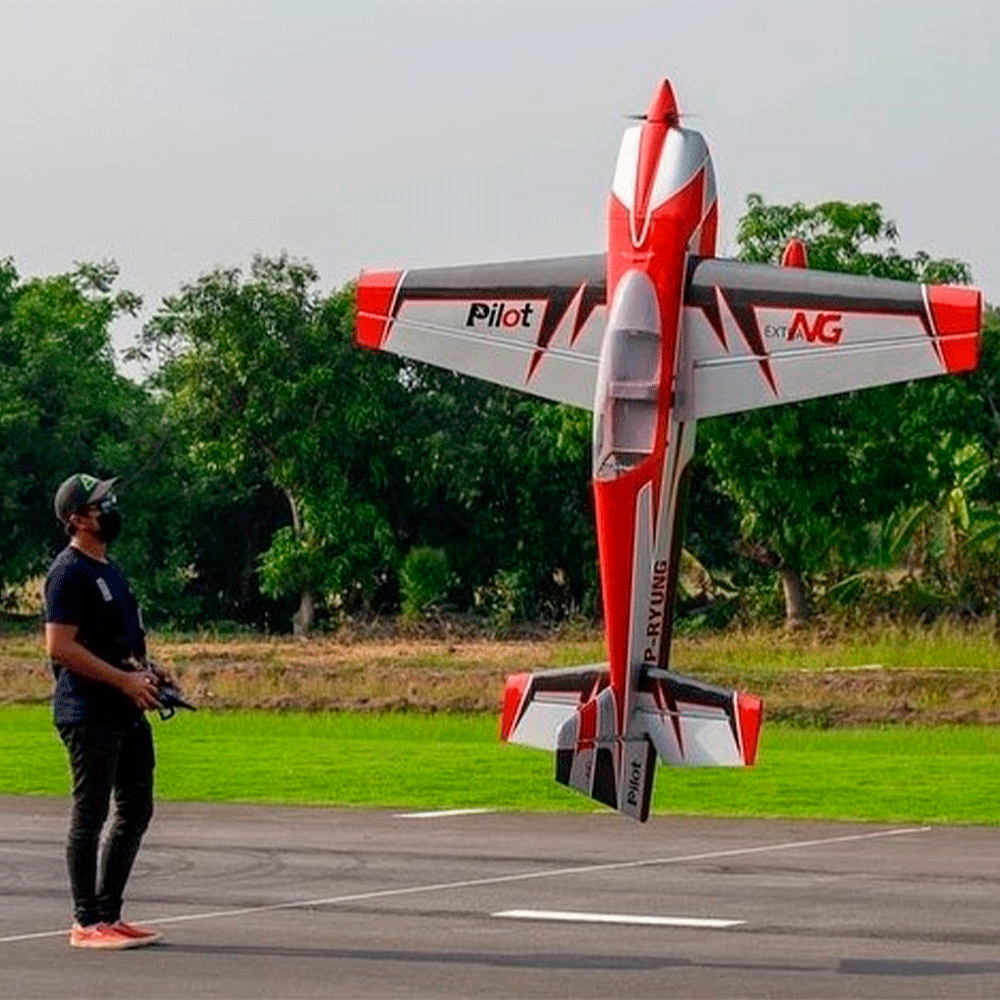

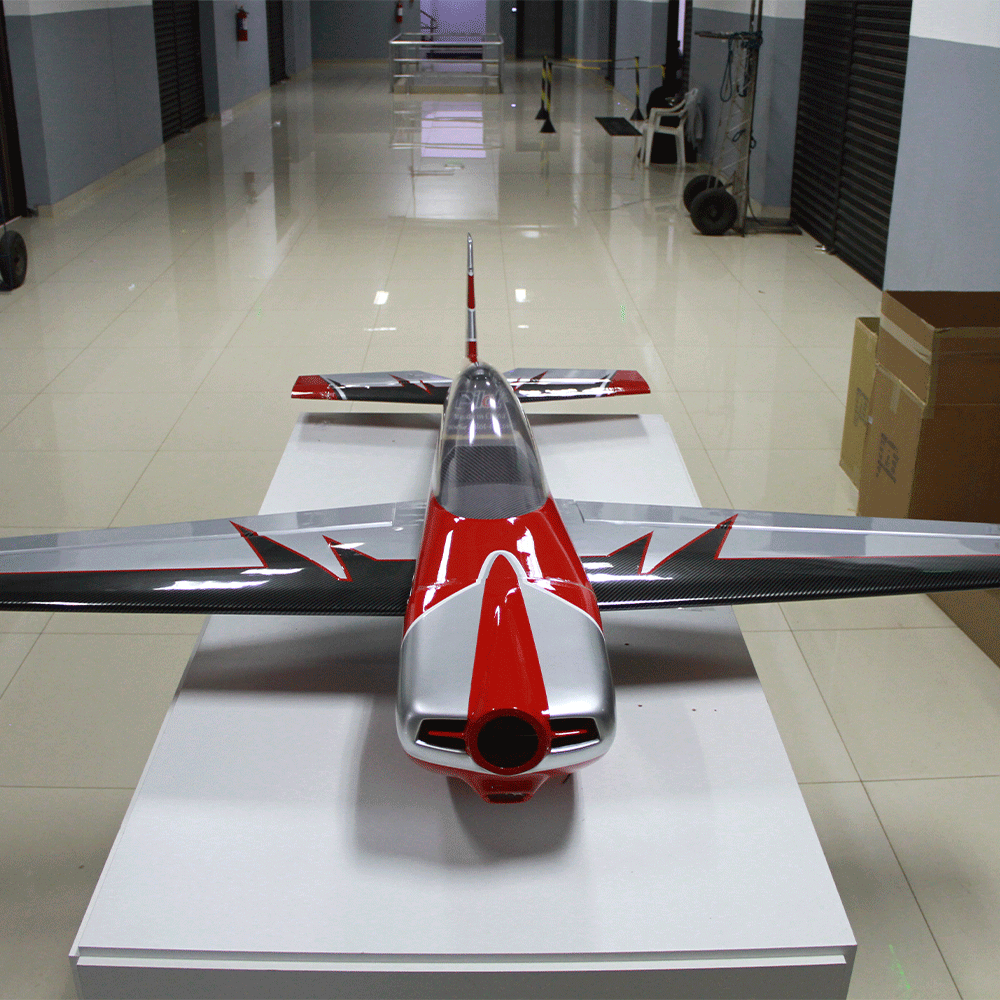

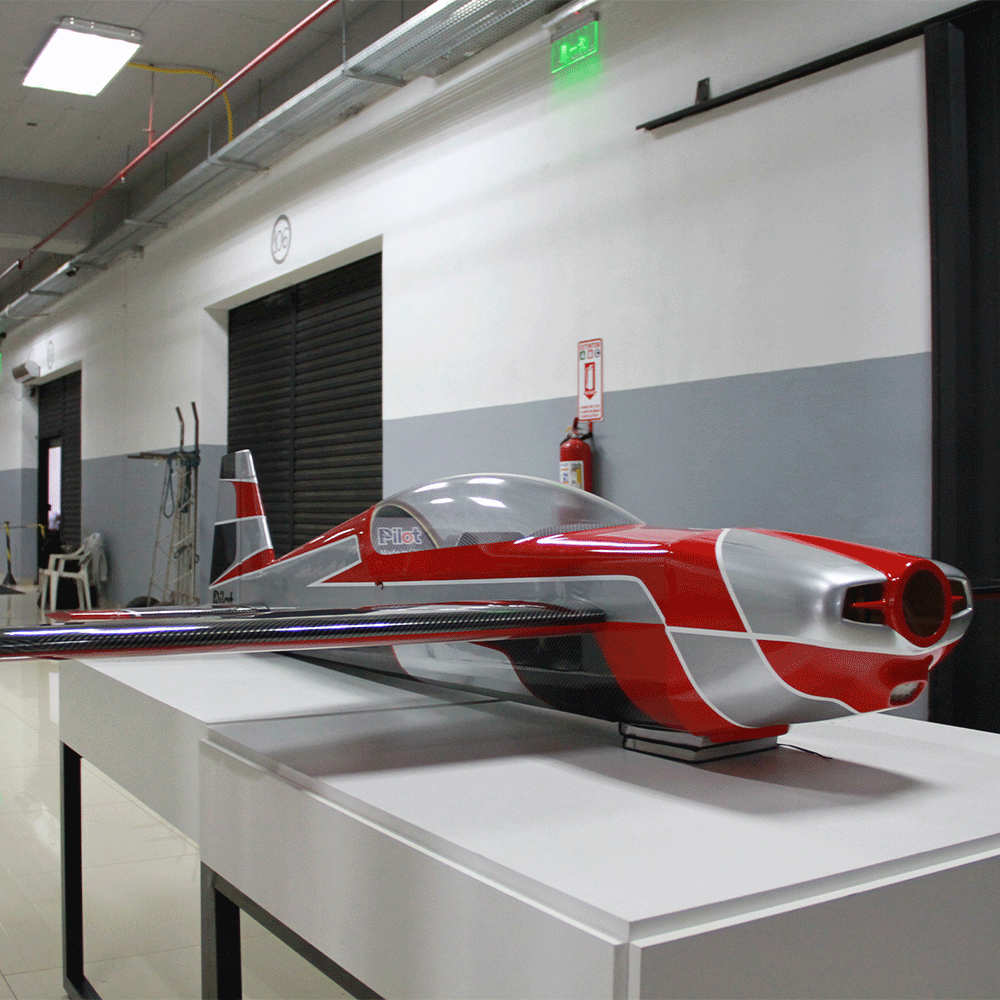

AVIAO PILOT RC EXTRA NG 90" (2.29M) 04 GRAY/RED

Ref: 386661
Estoque: Indisponível
R$ 8.249,92
Comprar

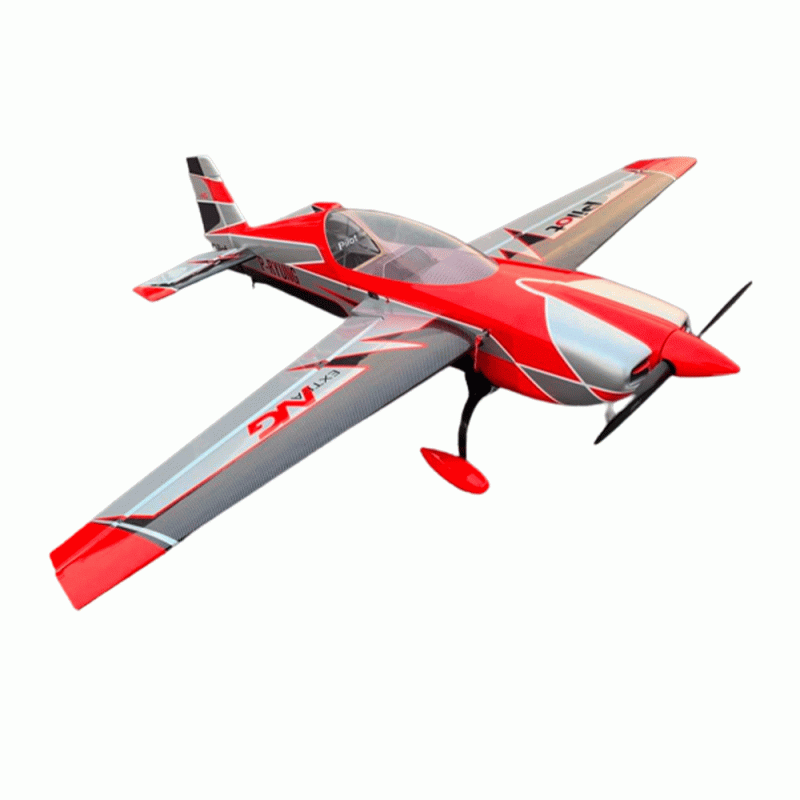

Extra NG – 90″ ( 2.29m)

A brand new design, built from a classic. In 2019 Extra Acrobatic Aircraft unveiled their latest masterpiece, and now in 2020 Pilot-RC is unveiling ours.

The Extra NG is the latest iteration of the Extra family, each version becoming more precise and more agile than ever before, and this feeds down all the way through our models.

This new design, combined with all of Pilot-RC’s latest build innovations and methods provide a high quality kit that can be built within minutes upon arrival at the flying field and relied upon for strength, agility and all round fun.

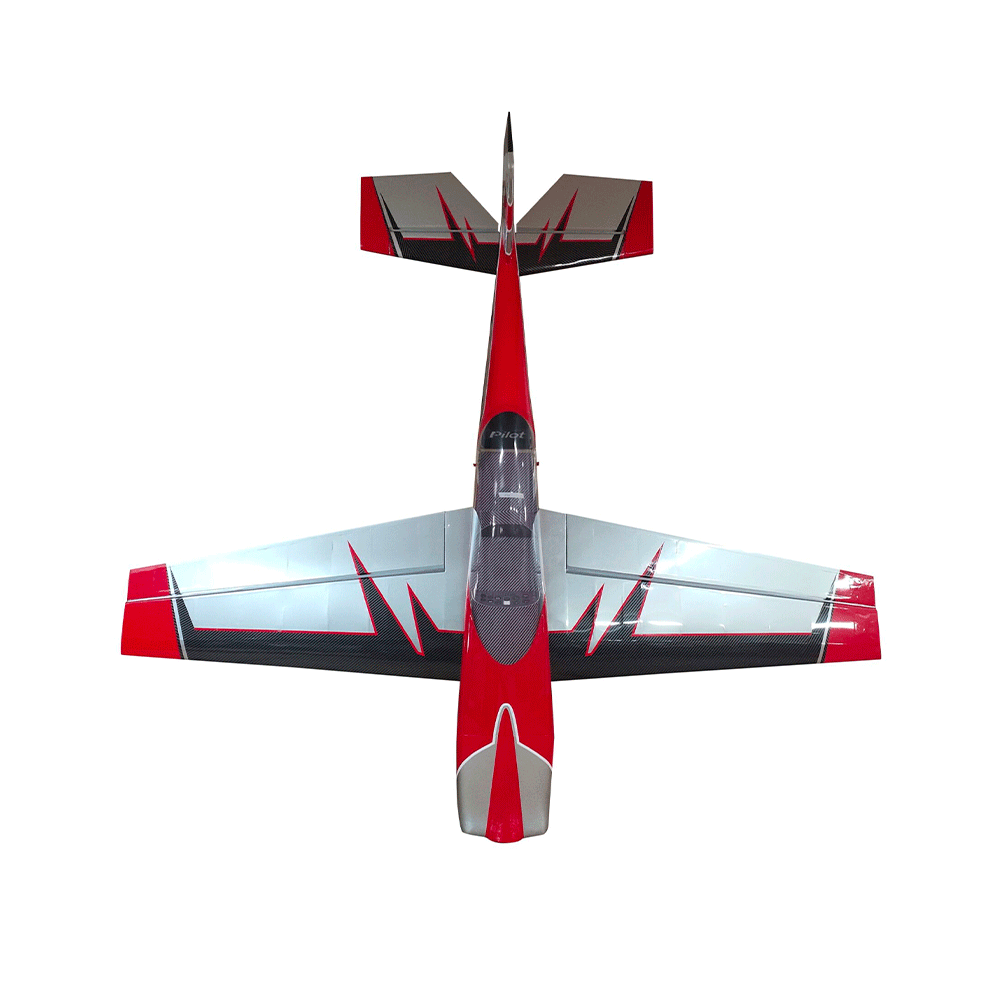

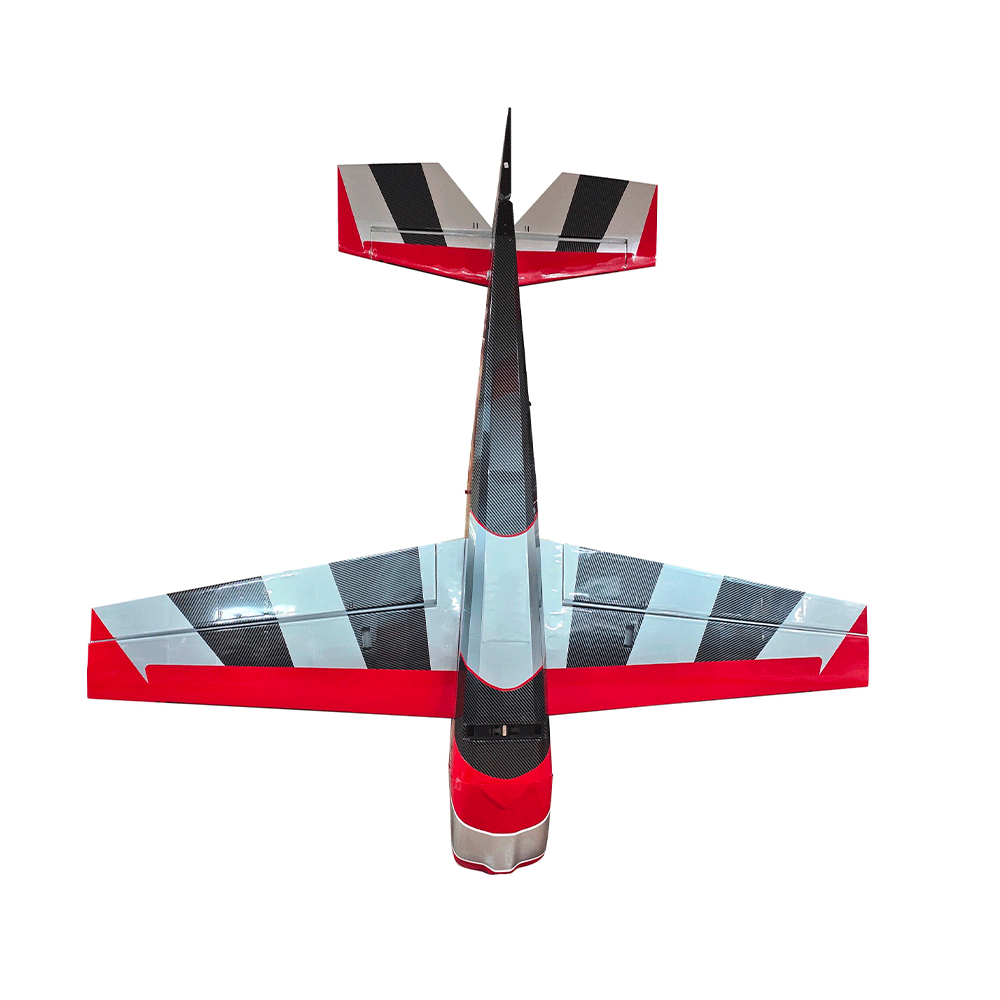

Colour scheme Extra NG 04:

References: Oracover 21-023, 21-091 & Carbon fiber effect / Ultracote HANU866, HANU881 & Carbon fiber effect



SPECIFICATIONS:

  • Model: Extra NG
  • Wingspan: 90″ (2.29m)
  • Length: 86.2″ (2.19m)
  • Wing area: 1,430″² ( 9,224cm²)
  • Weight: 20.11lbs (9.14kg)



FEATURES:

  • NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
  • NEW! Patented quick assembly system for wings, stabilizer and SFG
  • NEW! Patented quick assembly system for canopy.
  • Film covering applied over a Genuine German Oracover (Ultracote) base
  • Highly prefabricated, experienced builders can have air ready in under a day
  • Pre-installed hinges (glued and pinned)
  • Internally mounted cowling – so no visible external screws exposed (two exposed screws underneath for easy mounting)
  • Removable wings and stabs
  • Laser engraved motor mounting position
  • Easy canister installation due to open construction
  • Pull push system for Rudder servo

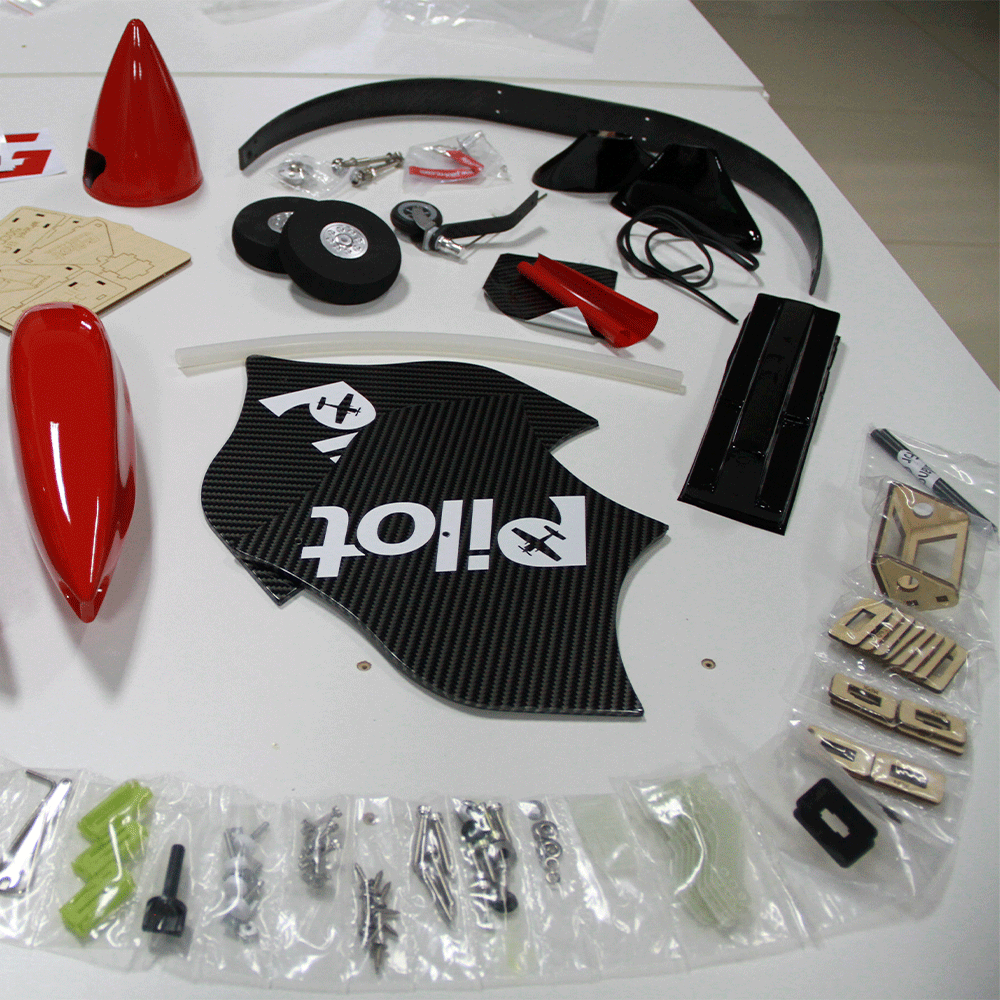

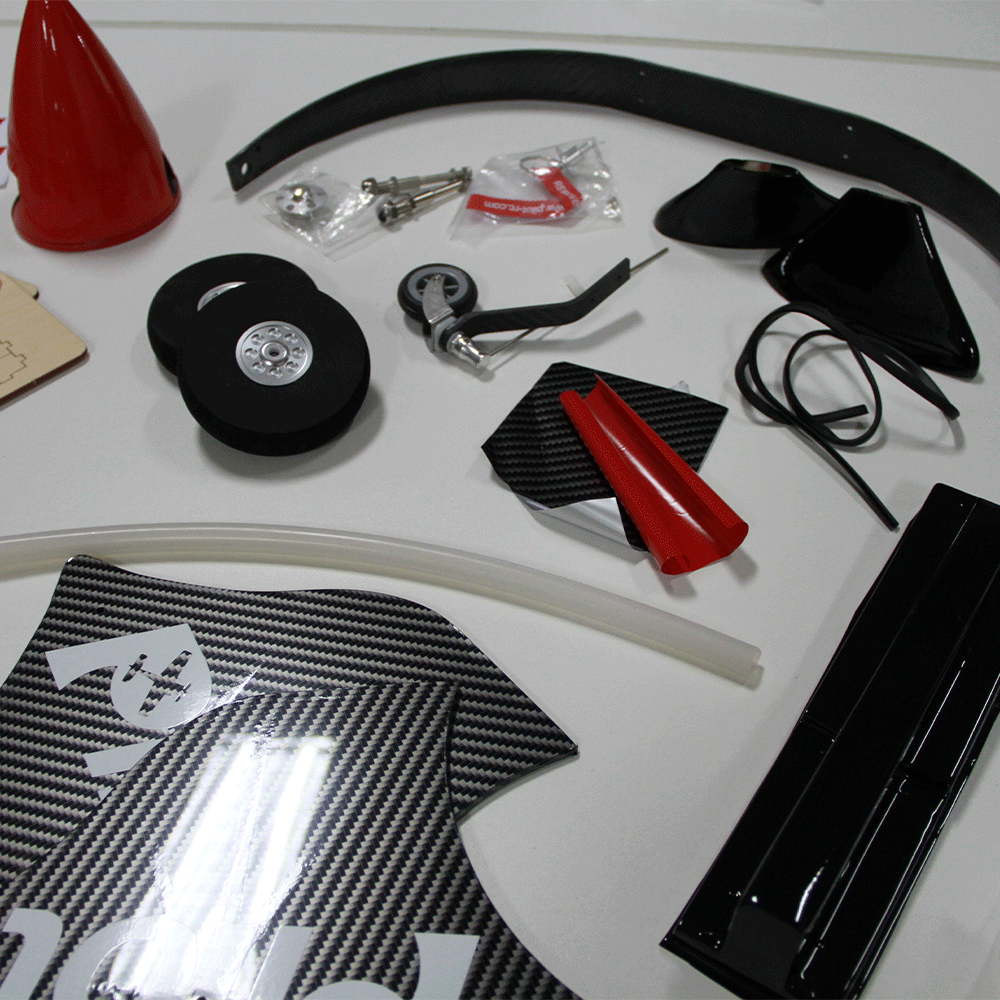

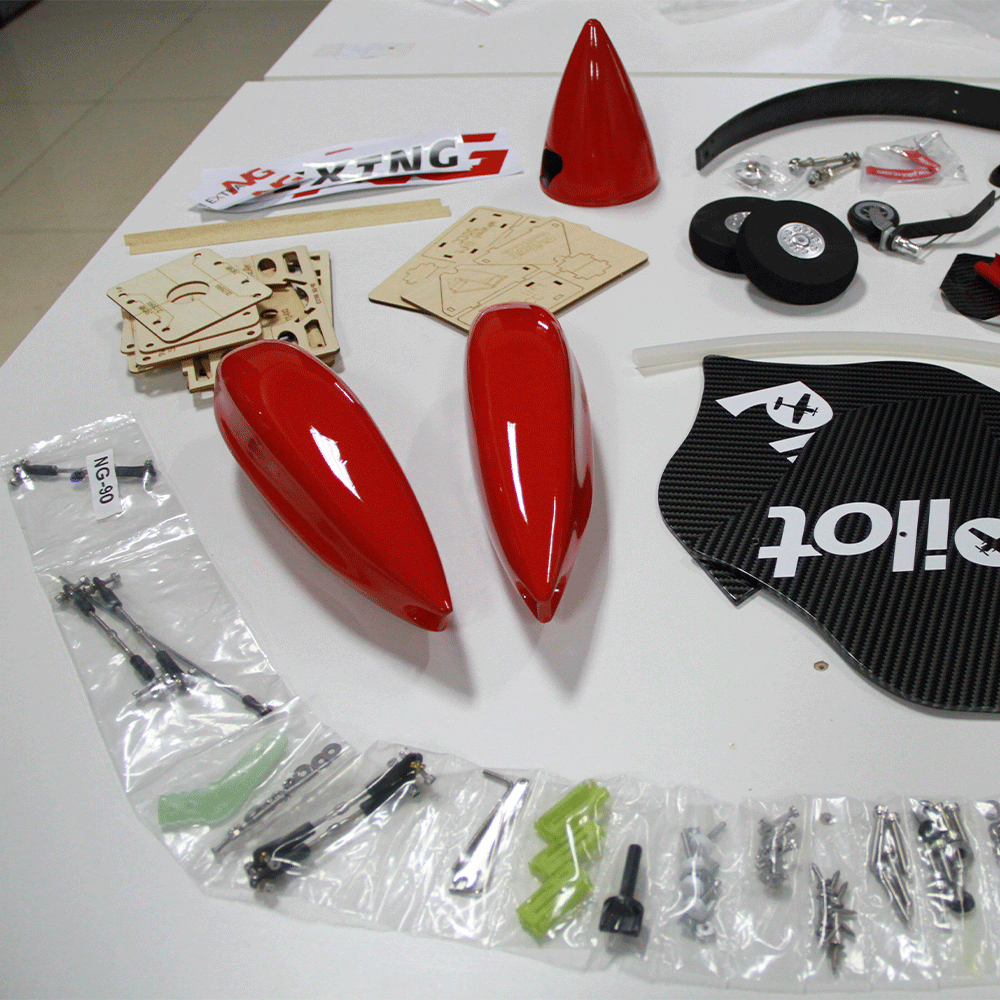

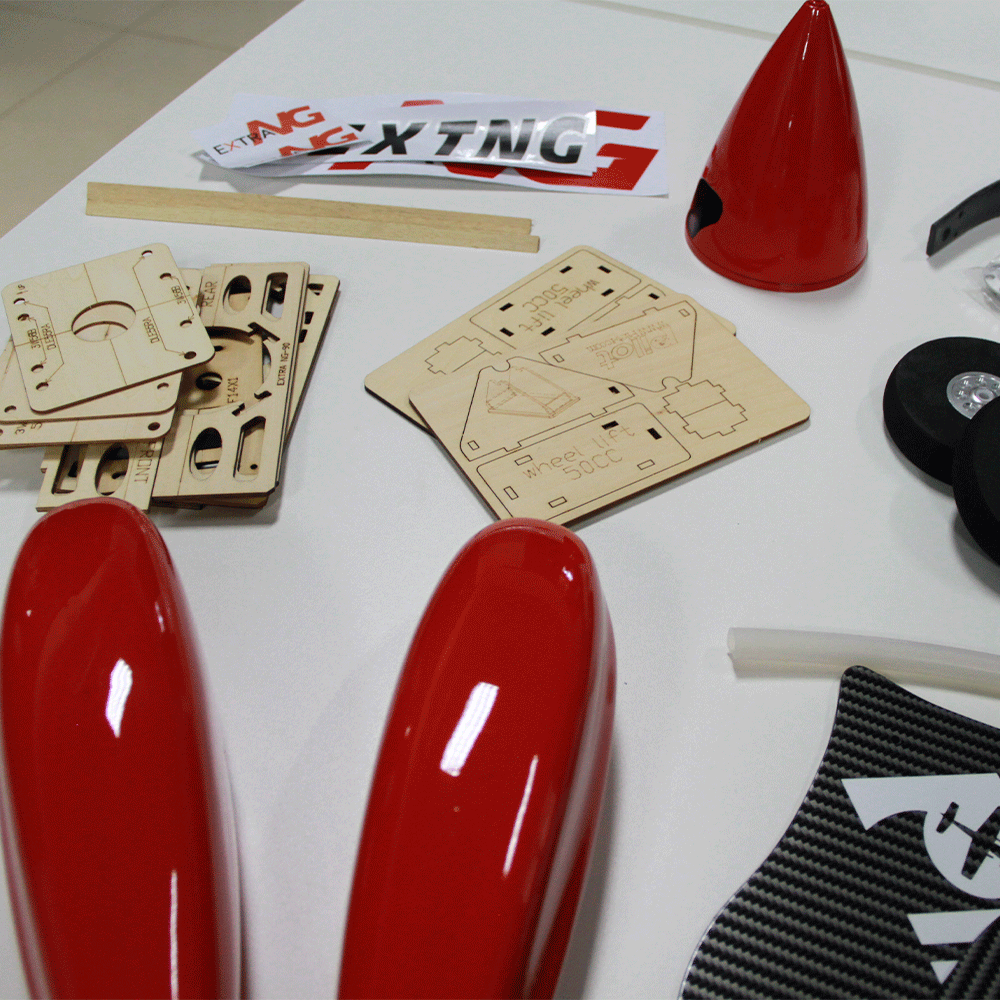

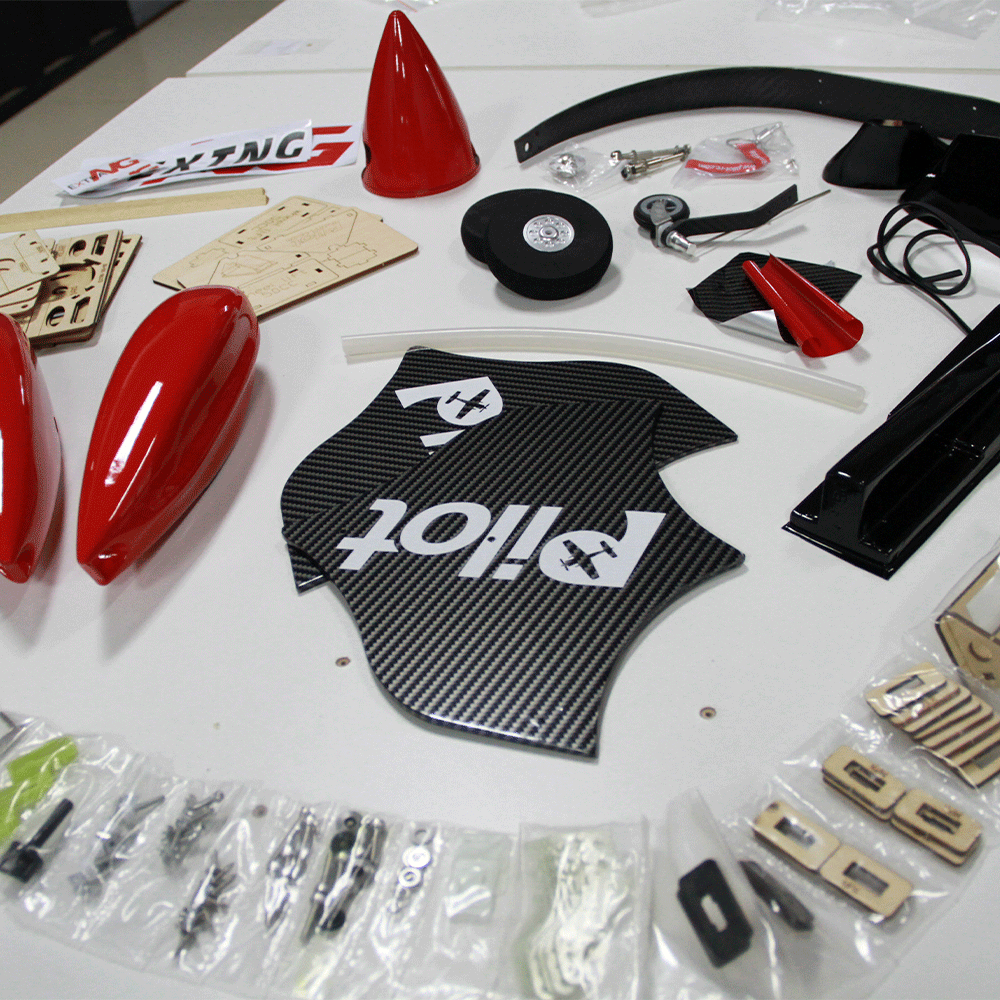

INCLUDED HARDWARE:

  • Complete air frame with all basic accessories (such as carbon fiber main undercarriage, tail-gear assembly and wing-tubes as well as fiberglass control horns and wheel pants)
  • “Spare” lower section cowl from transparent plastic – used to mark out correct location to cut the cowl for perfect fitting every time

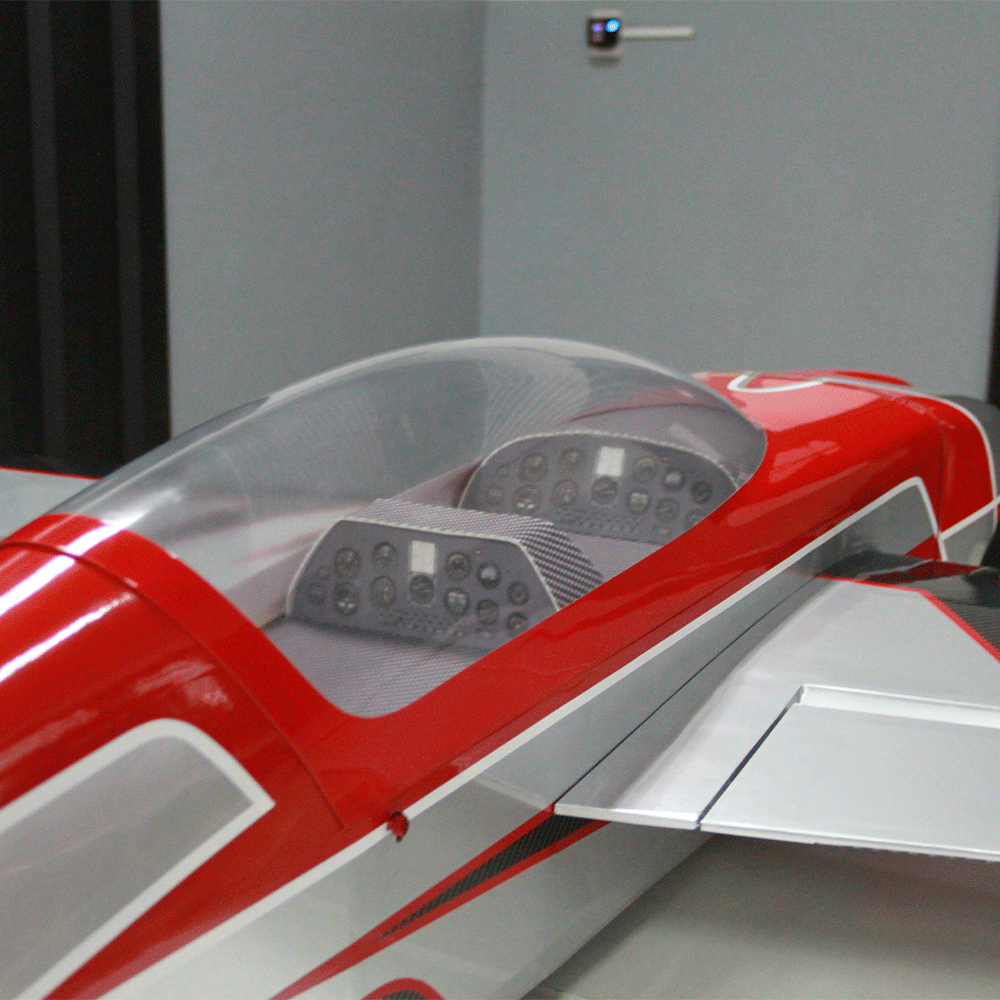

  • Pre-installed hinges and pre-mounted canopy
  • Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
  • Wheels, axles and wheel pants
  • Pre-prepared pushrods with ball links
  • Matching carbon spinner, 4″



REQUIRED HARDWARE:

  • Motor: 50-76cc or equivalent electric
  • Servos: 5 high torque plus throttle // Uses x1 per aileron, x1 per elevator half and x1 on rudder
  • Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.



PILOT-RC RECOMMENDED HARDWARE:

  • Servos: Pilot-Rc PW28AH (28Kg – 0,056s at 8,4v)
  • Servo arms: Pilot-Rc 1,6″ Aluminium arms (included with Pilot-Rc servos)
  • Wingbags: Pilot-RC wingbags
