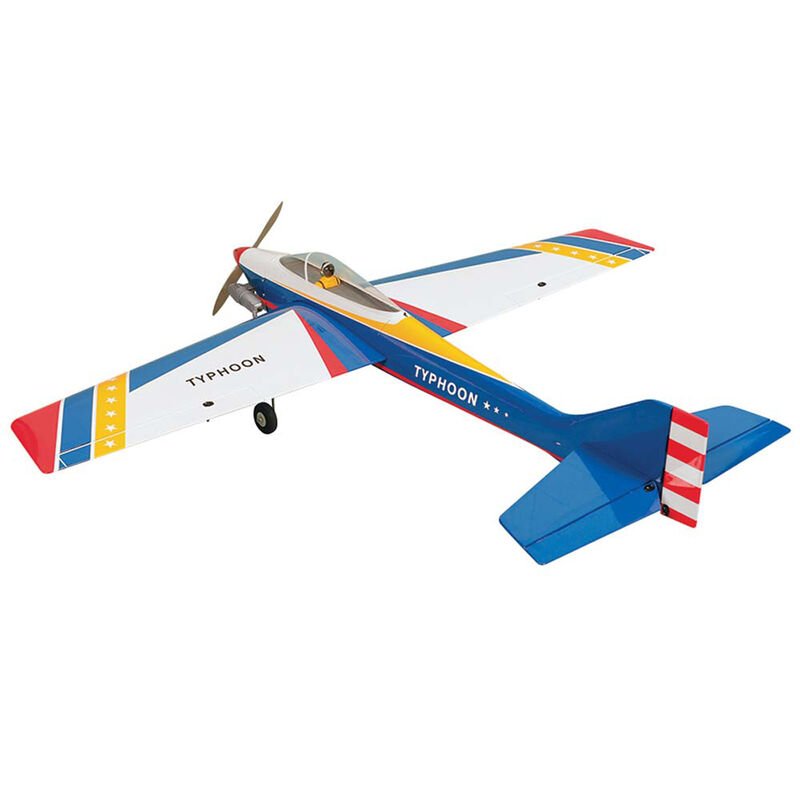

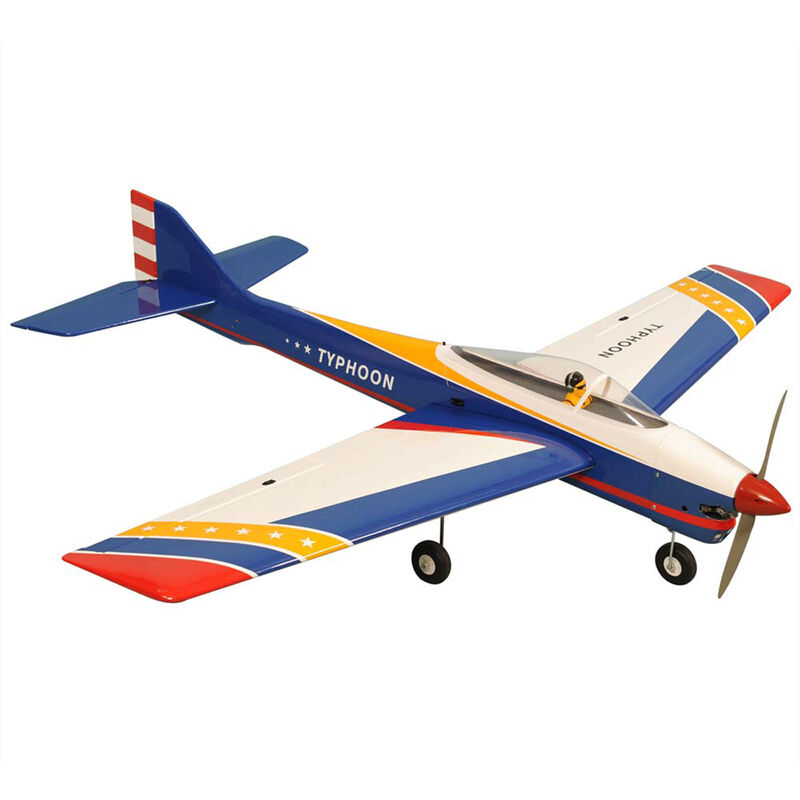

AVIAO PHX TYPHOON 46/55/EP ARF PMMA1595

FEATURES

• Construction: Lightweight laser cut wood
• Wing:
           Aileron Control: Dual servo
           Covering: High-quality film
• Cowl:
           Spinner: Red plastic, 2.3" (58mm) diameter
           Canopy: Clear molded plastic with painted pilot figure
• Landing Gear: Prebent wire --" (--mm) main wheels, --" (--mm) nose wheel
• Fuel Tank: --oz (--cc)

INCLUDES

• ARF Typhoon Airplane with Spinner
• Pilot Figure
• Landing Gear
• Instruction Manual

REQUIRES TO COMPLETE KIT

• Radio: At least 4 channel with 5 standard servos
• Receiver Battery: 800-1200mAh NiMH
• Glow Power
  Engine: 2-stroke .46-.55 cu in OR 4-stroke .52 cu in
  Propeller: to match selected engine
  Fuel, glow starter, throttle servo
• Electric Power-
  Brushless Motor: 1000-1400kV outrunner
  ESC: To match selected motor
  LiPo Battery: 3-6S
  Battery Charger: To match selected battery
  Propeller: To match selected motor
  Building and field equipment

SPECIFICATIONS

• Wingspan: 59.1 in (1500mm)
• Length: 53.1" (1348mm)
• Weight: 5.7-6.2 lb (2600-2800 g)
• Wing Area: 595 in2 (38.4 dm2)
• Wing Loading: 0.2 oz/in2 (70 g/dm2)
• Servo Mount: 0.83 x 1.6" (21 x 42mm)
• Center of Gravity (CG): 4.9" (125mm) back from the leading edge of the wing at the fuselage
• Control Throws- Low High
• Ailerons: 0.31" (8mm) 10% expo 0.39" (10mm) 10% expo
• Rudder: 0.98" (25mm) 15% expo 1.57" (40mm) 15% expo
• Elevator: 0.31" (8mm) 12% expo 0.39" (10mm) 12% expo
