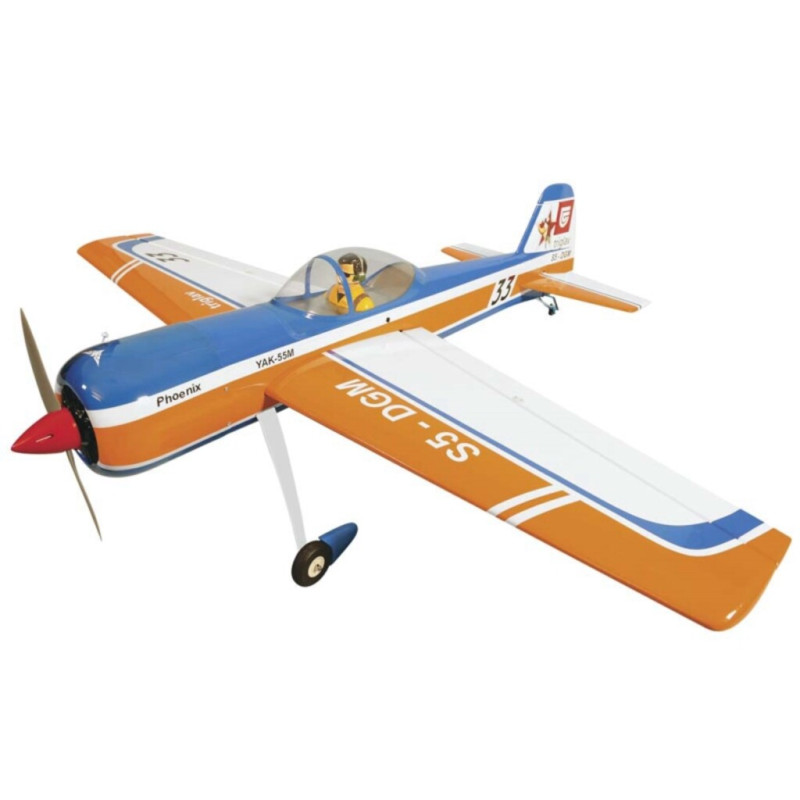

AVIAO PHOENIX YAK 55 46-55 SPRT ARF PMMA1590

FEATURES

• Construction: Built-up balsa and plywood.
• Covering: High-quality film color scheme is orange and white with blue gold accents

• Wings: Two-piece wood with aluminum joiner tube.
• Radio Compartment: Plywood reinforced.
• Cowling: Painted fiberglass.
• Canopy: Clear with red frame lines.
• Wheel Pants: Painted fiberglass.
• Cockpit features: Detailed and painted pilot figure and instrument panel decal.
• Landing gear: Pre-bent 0.14" (3.5mm) aluminum with 2-1/2" (63mm) treaded rubber main wheels and one 1" (25mm) rubber tail wheel with pre-bent 0.078" (2mm) thick wire.
• Spinner: 2.25" (58mm) plastic.
• Fuel Tank: 16oz (480cc) approximate
• Aileron Control: Dual servo.
• Hardware: Hinges, wing bolts and all other required fasteners included.
• Motor Mount: Nylon.

INCLUDES

• Prebuilt and pre-covered wings fuselage and tail section
• aluminum main landing gear
• tailwheel wire
• nylon adjustable engine mount
• main and tail wheels
• pre-bent pushrods
• hardware package
• fiberglass cowling
• wheel pants
• clear canopy
• pilot figure
• decals
• photo-illustrated instructions

REQUIRES TO COMPLETE KIT

For glow operation:

• Engine: 40 - .55 cu in (6.5 - 9.01cc) 2-stroke OR .52 cu in (8.5cc) 4-stroke
• Muffler: Standard type included with engine
• Servos: Five, high torque (2-ailerons, 1-elevator, 1-rudder, 1-throttle)

For electric operation:

• Brushless Motor: Great Planes Rimfire .46 42-60-800
• ESC: 60A
• Propeller: 12x8, or 13x6.5
• LiPo Battery 6S (22.2V)
• Battery Charger: LiPo compatible
• Servos: Four, 42 oz/in torque minimum (2-ailerons, 1-elevator, 1-rudder)

For glow and electric power:

• Radio: Four channel
• Servo Extension: One 6" (152mm) for ailerons
• Y-Harness: One for aileron servos
• Misc. Items: Foam rubber padding, medium fuel tubing, fuel filter, propeller, building and field equipment

SPECIFICATIONS

• Wingspan: 55.91" (1420mm)
• Flying Weight: 5.7 - 6.2lbs (2600 - 2800g)
• Wing Loading: 21.3 oz/sq ft (65 g/sq dm)
• Length: 53.94" (1370mm)
• Airfoil: NACA
• Center of Gravity: 4.1" (105mm) Back from the wing's leading edge at the fuselage sides.
• Control Throws - Low Rate - High Rate
• Ailerons: 0.31" (8mm) 10% expo 0.39" (10mm) 10% expo
• Elevator: 0.31" (8mm) 12% expo 0.39" (10mm) 12% expo
• Rudder: 0.98" (25mm) 15% expo 1.6" (40mm) 15% expo
