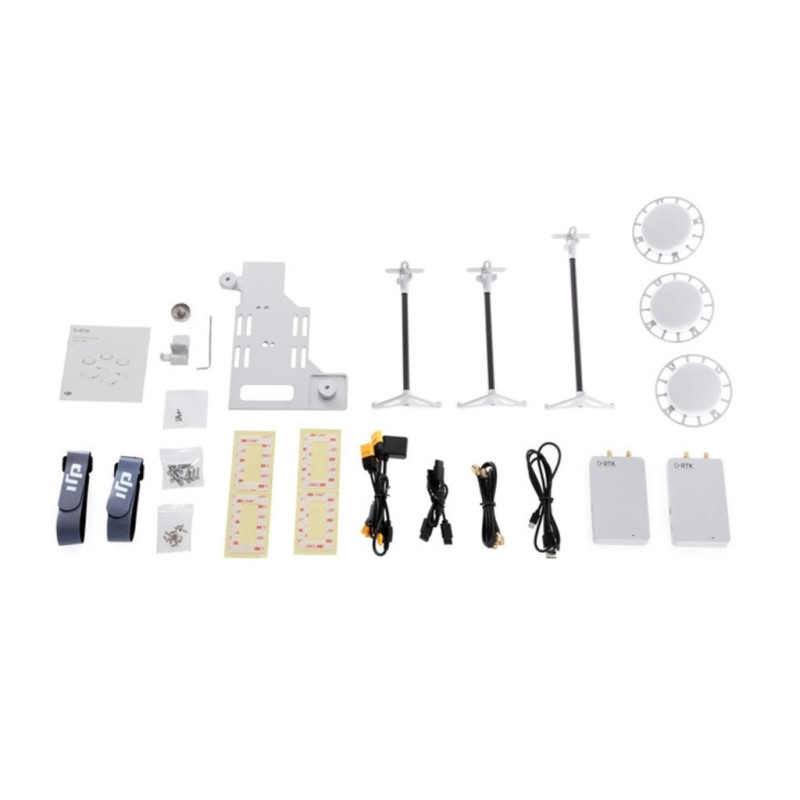

DJI RTK-G PACK

Ref: 222440
Estoque: Disponível
R$ 25.514,92
Comprar

General

Positioning accuracyHorizontal: 1 cm + 1 ppm
Vertical: 2 cm + 1 ppm
Orientation accuracy(0.2/R)°
R is the baseline distance (distance between both aerial system antennas) in meters.
Root Mean Square (RMS)0.03 m/s
Frequency usedglobal version: GPS L1&L2, GLONASS F1&F2
Asia-Pacific version: GPS L1&L2, BEIDOU B1&B2
interface typeCAN, UART, USB
Input voltage3S a 12S (12 a 52 V)
Consumed potence5.2 W
current0.45 A (@ 12 V)
D-RTK Processor Dimensions112.3 mm × 63 mm × 18.6 mm
D-RTK Processor Weight139.5 g
Operating temperature32°C to 45°C (0°F to 113°F)
Storage temperature-40°C to 85°C (-40°F to 185°F)

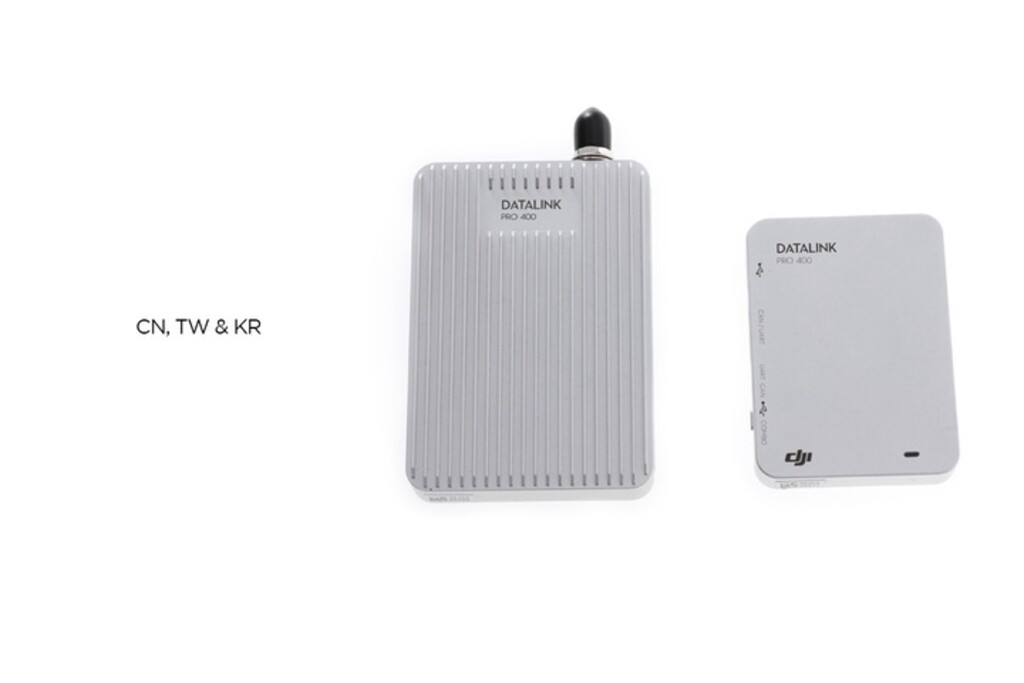

DATALINK PRO

DATALINK PRO is a highly resistant to magnetic interference wireless data link system designed for use with the DJI A3 and D-RTK. It features various features and working modes that allow it to meet the needs of different usage scenarios.

Efficiency:

Potency of transmission

DATALINK PRO 400:

  • China: 10 dBm
  • Taiwan: 10 dBm
  • South Korea: 10 dBm

DATALINK PRO 900:

  • CE: 13 dBm
  • FCC: 27 dBm
  • Canadá: 27 dBm
  • Australia: 27 dBm
  • Japan: 10 dBm



Transmission Range

DATALINK PRO 400:

  • Taiwan: 1000 m
  • Corea del Sur: 1000 m
  • China: 600 m

DATALINK PRO 900:

  • Japan: 1200 m
  • Australia: 2000 m
  • FCC: 2000 m
  • CE: 300 m



Consumed potence

DATALINK PRO 400:

  • Base station: 2.1 W
  • mobile station: 0.65 W

DATALINK PRO 900:

  • Base station: 1.2 W
  • mobile station: 0.65 W



Power supply

Voltage

  • Base station: DC 9 V
  • mobile station: DC 9 V

current max. (Transmission signal)

DATALINK PRO 400: 230 mA
DATALINK PRO 900: 130 mA

current max. (receive signal)

70 mA
