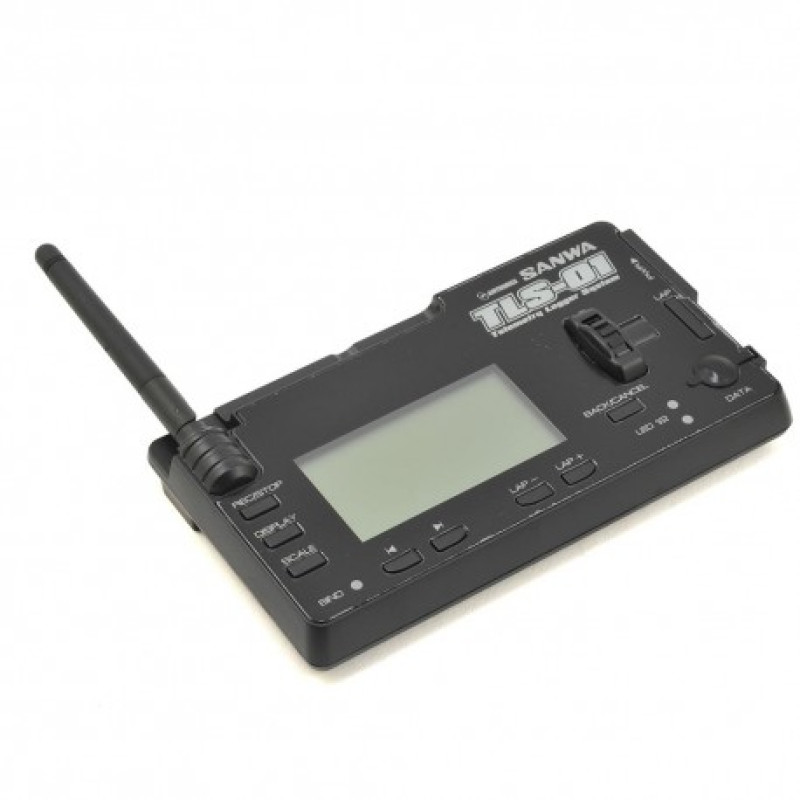

AIRTRONICS TLS-01 TELEMETRY M11X 91450

The Sanwa TLS-01 Telemetry Data Logger is a hand held device that allows you to monitor your RPM, speed, receiver voltage and two different temperature reading telemetry data, as well as throttle and steering output data, remotely, in real time. Nearly 500 minutes of data can be recorded and reviewed directly from the TLS-01, or you can connect the device to your PC and download the telemetry data using the optional transfer cable (SNWSD-U01 - not included) for archiving and review in a spreadsheet program like Microsoft Excel.

In addition to the powerful data monitoring and recording features, the TLS-01 also features a built in lap timer with an interval timer and goal time alarm that operates independently form the lap timers on your transmitter,. In addition the telemetry log recording function and the lap timer can be controlled directly from the logger by a 3rd party while you are driving or you can program it to be controlled by up to two auxiliary channels on your transmitter so you can operate the functions remotely if you dont have a pit man on hand.

The TLS-01 binds to your FHSS-4 or FHSS-3 series transmitter and allows you to monitor and record telemetry data for up to 10 different models independently.

Features:

• Telemetry capability with Sanwa/Airtronics FH4T and FH4FT systems (MT-4 only)
• Monitor throttle and steering output, as well as lap timer functions on Sanwa/Airtronics FHS and FH3F systems (M11X, EXzes X, MX-3X, and Gemini X)
• Limited Driving monitor function
• Lap timer function
• Large capacity logger function
• Large full dot LCD
• Menu selector
• Can transfer the data to PC by using transfer cable (SD-U01)

Specifications:

• Number of battery: 4cell AAA
• Dimensions: 161.5x91.5x21.2mm (6.36x3.60x0.83")
• Weight: 166g (5.86oz)
