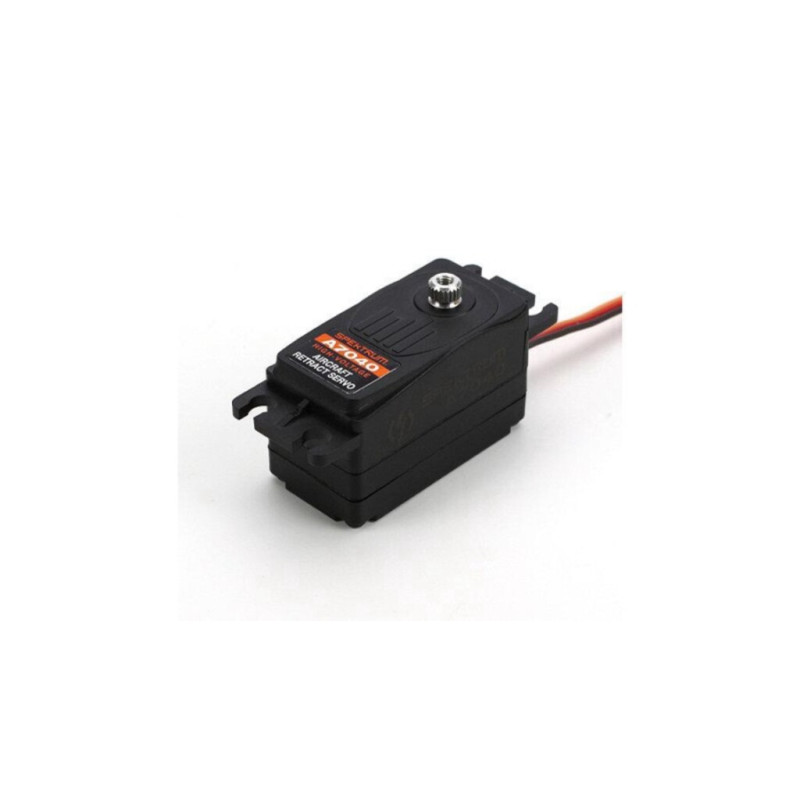

SPEKTRUM A7040HV RETRACT SERVO SPMSA7040

Ref: 90155

Estoque: Indisponível

R$ 420,42

Comprar

KEY FEATURES

Retract servo with adjustable endpoints

High-voltage compatible

Slow transit speed of 1.39 sec/160° at 7.4V for realistic landing gear operation

PRODUCT SPECIFICATIONS

Size Category: Specialty

Type: Analog

Application: Airplane Mechanical Retracts

Torque: 195 oz-in (14.0 kg-cm) @ 6.0V; 266 oz-in (19.2 kg-cm) @ 8.4V

Speed: 1.92 sec/160° @ 6.0V; 1.39 sec/160° @ 8.4V

Length: 1.70 in (44mm)

Width: 0.87 in (22.2mm)

Height: 1.07 in (27.3mm)

Weight: 1.48 oz (42g)

Bushing Or Bearing: Bearing

Bearing: Dual

Connector Type: Z-connector

Gear Type: Metal

Voltage: 6.0 - 8.4V (High Voltage)

OVERVIEW

The A7040’s wide stance and low profile design along with its heavy duty metal gears, cored motor and class leading, 266 oz.-in. of torque, is ideal for mechanical retract systems. Its ability to accept a higher voltage from a 2S Li-Po battery makes setup simpler and operation more efficient. Fully proportional with endpoint adjustable, when paired with a servo speed function, the landing gear movement can be adjusted to simulate scale applications.
