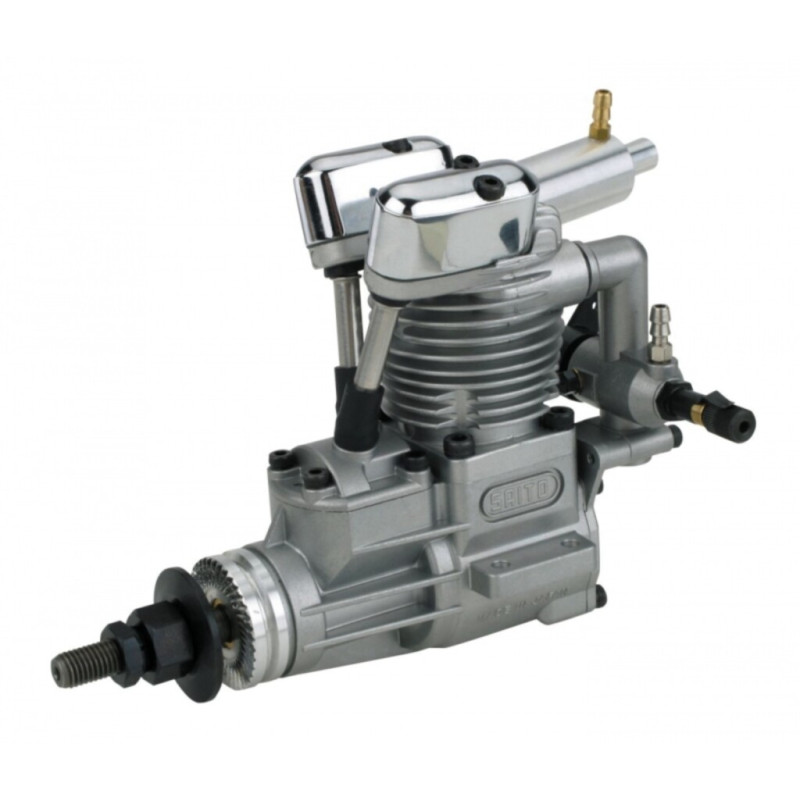

MOTOR SAITO FA-40A 4T SAIE040A

PRODUCT DESCRIPTION

KEY FEATURES

• 10 X 4 prop at 10,500 rpm
• Smaller case design for lighter weight
• Nearly the same case size as a .30, but packs more power

OVERVIEW

• As far as modelers are concerned, there’s no sound like the sweet sound of a Saito engine. Saito’s latest wonder is the FA-40a, which shares nearly the same case size as the FA-30, but packs a whole lot more punch. All this power coupled with solid Saito craftsmanship and the standard 3-year warranty is sure to make this potent little 4-stroke one of the year’s most anticipated engines. As with most Saito engines, a special Golden Knight edition is available with a gloss black case and gold plated rocker covers.

SPECS:

• Application: Airplane
• Benchmark Prop: 11x5 APC @ 10600
• Bore: 0.86 in (22.0 mm)
• Carb Type: barrel 2 Needle Valve
• Crank Type: Ball Bearing
• Crankshaft Threads: 1/4 x 28
• Cylinder Type: AAC
• Cylinders: Single
• Displacement: .40 cu. in. (6.5 cc)
• Engine (Only) Weight: 10.24 oz
• Fuel Type: Glow
• HP: 0.65
• Mounting Dimensions: 88 x 45 x 93 mm
• Muffler Type: 2 - Piece
• Muffler Weight: 0.40 oz
• Prop Range: 10x7 - 11x6
• RPM Range: 2000 - 12000
• Stroke: 0.68 in (17.40 mm)
• Total Weight: 10.64 oz
• Type: 4-stroke
