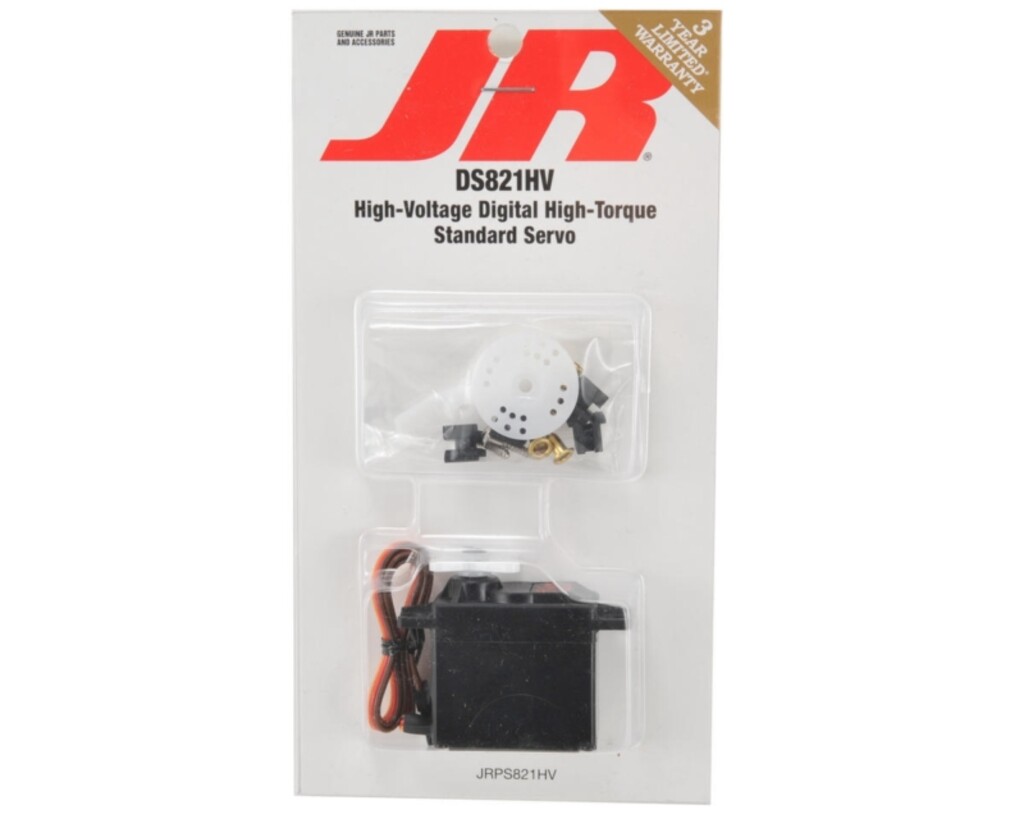

DS821HV DIGIT SPORT HIGH TORQ JRPS821HV

Specifications

JR - JRPS821HV - DS821HV HV Digital Sport High-Torque Servo

• Size Category: Standard
• Type: Digital
• Application: Airplanes up to 1.20 size, 30-size glow, 500-size electric helis
• Torque: 88 oz-in @ 7.4V
• Speed: 0.15 sec/60-deg @ 7.4V
• Length: 1.50 in
• Width: .74 in
• Height: 1.47 in
• Weight: 1.5 oz
• Bushing Or Bearing: Bearing
• Bearing: Single
• Motor Type: 3-pole ferrite
• Connector Type: JR®
• Gear Material: Nylon composite (note - not compatible with threadlock liquids)
• Voltage: High-voltage (direct 2S Li-Po/Li-Fe battery) compatible, 6-8.5V

• JR - JRPS821HV - DS821HV HV Digital Sport High-Torque Servo

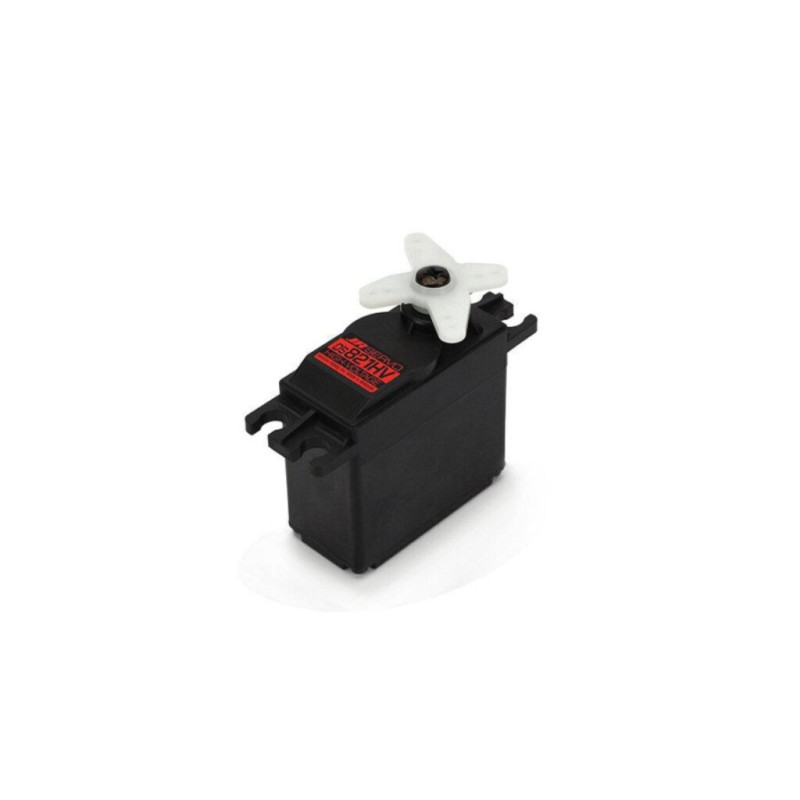

  The JR® 821HV servo is one of the latest updates for the JR brand. Based on the original and successful DS821 servo, it has the new high-voltage motor allowing it to be used unregulated when using 2-cell Li-Po power sources. The DS821HV servo is a powerful, accurate sport digital servo recommended for RC airplane applications up to 1.20-size. For helicopters, the DS821HV servo operates best with 30-size glow models and up to 500-size electric.

• High-voltage (direct 2S Li-Po/Li-Fe battery) compatible
• Lower price point, but higher performance value
• Longer-lasting plastic composite gear material
• Ball bearing-supported output shaft
