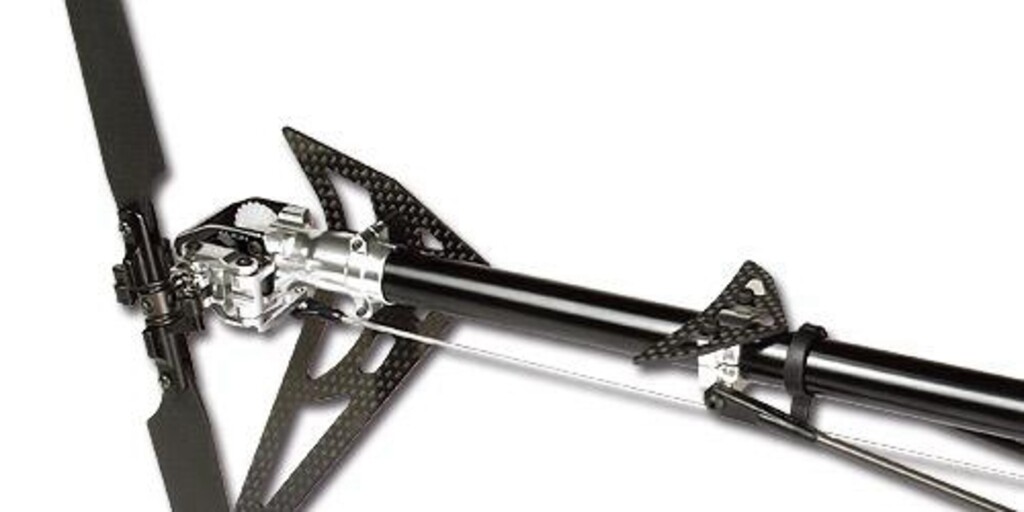

TR450 NEW TAIL TORQUE TUBE UNIT H45186T

Ref: 87728
Estoque: Disponível
R$ 480,48
Comprar



Instruction: Specification:
- Brand new tail gear box with higher material quality and easy maintenance.
- Utilizes dual point attachment design for zero play and higher precision control feel.
- Constructed with CNC aluminum alloy, with precision ball bearing at moving points, improving structure rigidity and smoothness, allowing rudder control to be more precise and smooth.
- 6061-T6 Aluminum alloy material and CNC processed.
- Use for T-REX 450.
- Must with H45183 New Tail Pitch Control Link.		 - 450PRO V2 Metal plate(L) × 1
- 450PRO V2 Metal plate(R × 1
- 450PRO V2 Metal tail unit set × 1
- Collar × 1
- 450PRO Tail rotor shaft assembly × 1
- Long umbrella gear × 1
- Vertical stabilizer mount × 1
- Bearing MR83ZZ × 2(Φ3×Φ8×3mm)
- Bearing MR106ZZ × 2(Φ6×Φ10×3mm)
- I-shaped Arm × 1
- Mount Link × 1
- Slider Shaft × 1
- Bearing mount washer × 1
- Tail pitch control link × 2
- Bearing holder × 1
- Linkage ball A(M2x2.5) × 1(Φ4.75x7.18mm)
- Bearing F681XZZ × 4(Φ1.5xΦ4xΦ5x2mm)
- Bearing MR74ZZ × 2(Φ4xΦ7x2.5mm)
- Bearing FMR52ZZ × 2(Φ2xΦ5x2.3mm)
- Socket button head screw × 2(M2x4mm)
- Socket button head screw × 4(0#x4mmx80牙)
- Socket button head screw × 4(M2×5mm)
- Socket button head screw × 1(M2×12mm)
- Socket screw × 2(M2×18mm)
