RADIO 2CH RANGER 2N HIT.27AM 135751

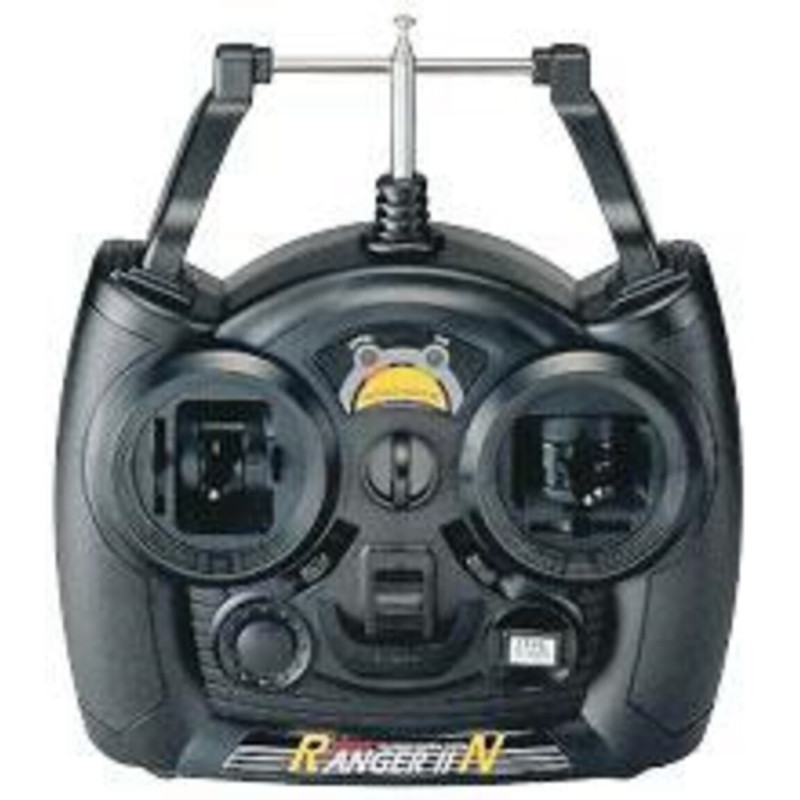

This is the RANGER II N, 2-Channel AM Radio from Hitec.

FEATURES:

2-Channel, 2-Stick Ergonomic Design Super-Heterodyne Digital Proportional For Extra Long Range Interchangable Crystals All-Channel Servo Reversing Charger Connector For Optional NiCads and NiCad Charger Low Battery Warning LED Indicator Neutral Position Adjustment For Throttle (Ordinarily The Resting Position For The Throttle Stick Is In The Middle Of The Stick Travel.

With This Feature, The Stick Can Function This Way, Or It Can Divide The Travel 70/30, Since You Need More Motion To Control The Throttle Than To Control The Brake.) All SMT Circuitry (Surface Mount Technology) BEC Receiver Heavy Duty Servo Horns, Standard Size Servos 2 Year Warranty

INCLUDES:

One Ranger II N Transmitter No Number One HP-2RNB Receiver (27MHz) or HRCL1200(75MHz) Two HS-311 Servos HRCM1312 One Crystal for Rx HRCL21**(27MHz) or HRCL25**(75MHz) One Battery Box and Switch Frequency Flags Instruction booklet

SPECS:

Receiver: 53x35x19mm (2.1x0.8x1.4"), 28g (0.99 oz.)

Servo: speed: 0.19sec/60 deg. torque: 3.0 kg-cm (41.66 oz-in)

REQUIRES:

12 AA batteries (8 for transmitter, 4 for Receiver), may use SANP3500 SANP3501

COMMENTS:

If using NiCad batteries, consider the optional nicad charger: HRCP3025.

This radio is available on 27 or 75MHz. The Tx crystal is not available at the time of this writing. kh01-19-02 updt jxs 3/12/04 updt wm 1/07/04
