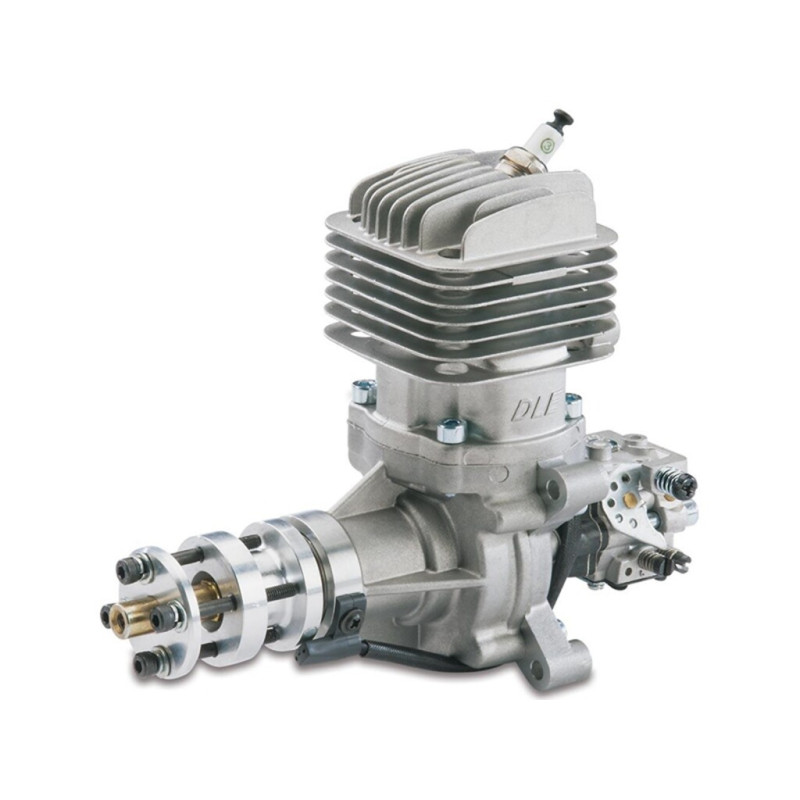

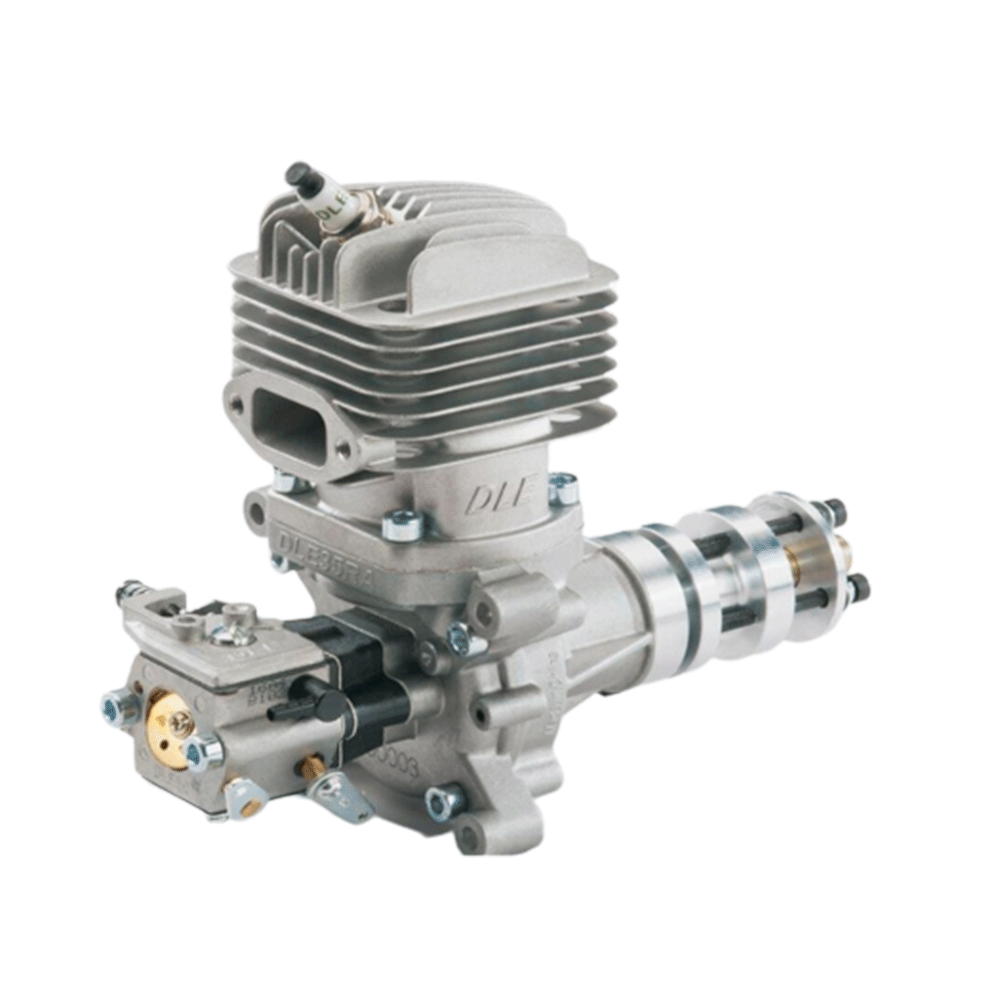

MOTOR DL ENGINE 35RA REAR EX WALBRO DLE35RA

Ref: 85380
Estoque: Indisponível
R$ 3.203,92
Comprar

Product Details

Description:

The DLE-35RA features a rear exhaust for the perfect tuned pipe setup. It also includes a newly designed piston with re-engineered skirt for less piston weight – resulting in such advantages as awesome throttle response, more power and longer engine life. Producing 400 more rpm than the DLE30, the DLE-35RA comes with engine standoffs, electronic ignition, spark plug and muffler.

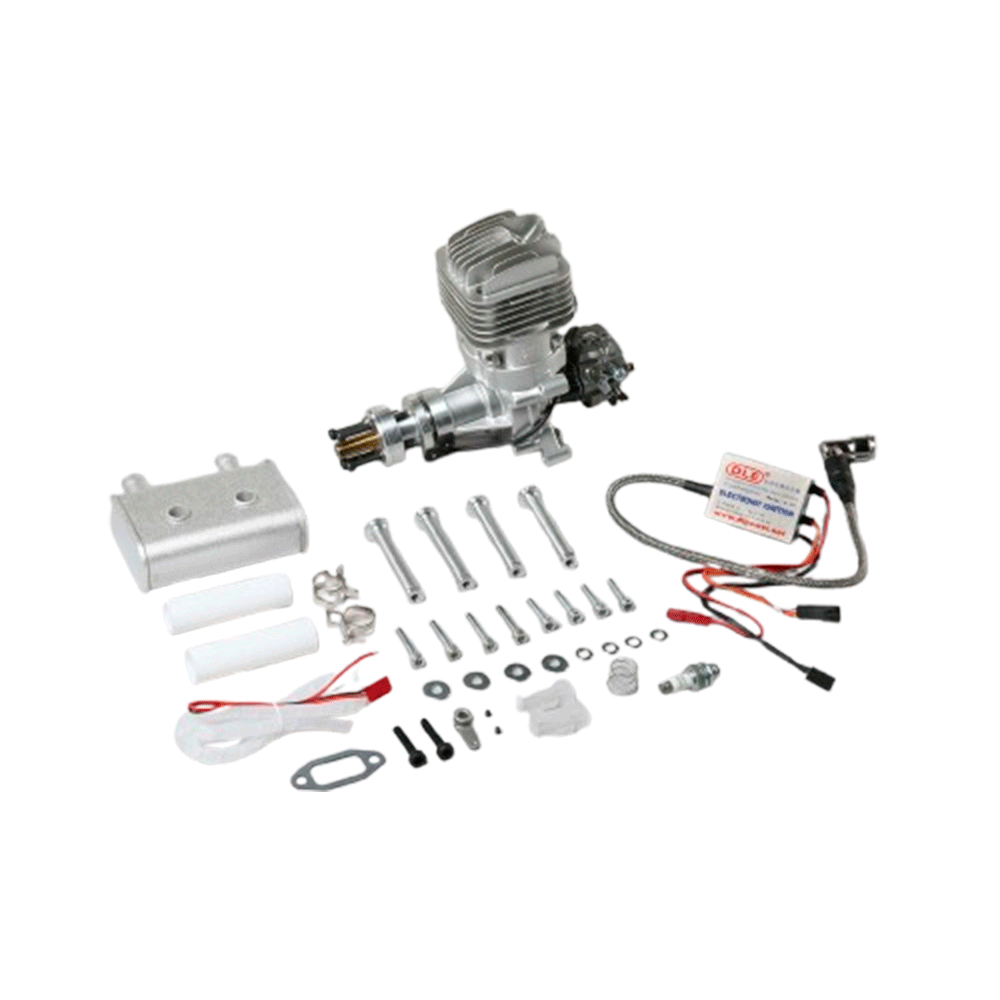

In The Box

  • (1) DLE 35-RA Gasoline Engine
  • (1) Electronic Ignition
  • (1) Muffler
  • (1) DLE CM6 Spark Plug
  • (4) Engine Standoffs with Mounting Hardware
  • (1) Integrated Choke Rod Guide
  • (1) Rear-mounted Carb
  • (1) Product manual


Needed to Complete:

  • Gasoline with at least 87 octane rating
    2-cycle oil, mix ratio for this engine is 30 parts gas to one part oil and must be followed exactly for warranty consideration and optimum performance
    4.8 - 8.4V battery for ignition (separate receiver pack can be used)
  • Propeller and field equipment

NOTE: 1st version ignition is marked 'A-01' on the label and requires a regulator if using 2S LiPo/LiFe battery If ignition module is the A-02 model it has a built-in voltage regulator. Model A-02 designation is located above the word "Ignition" on top of the case.

Features:

  • This engine is designed with a lighter piston skirt for lower weight, better throttle response, and increased resistance to wear.
  • The customized, pumped DLE carburetor delivers consistent fuel flow, while the 2-stage muffler reduces back pressure and increases power.
  • The advanced aluminum alloy crankcase is CNC-machined to exacting standards for high performance and long life.
  • Fully automatic electronic ignition delivers easy starts and consistent runs.

Compatibilly:

  • Tiger 30cc ARF, 90" - Hangar 9 - HAN2370
  • Timber 110 30-50cc ARF, 110" - Hangar 9 - HAN2530



Product Specs

Bore
1.5" 38.5mm)
Crankshaft Type
Threaded
Cylinders
Single
Displacement
2.13 cu in (34.5cc)
Engine (Only) Weight
2.06 lbs (936 g)
Ignition Weight
5.26 oz (147 g)
Muffler Type
Pitts
Muffler Weight
2.61 oz (74 g)
Oil Type & Content
30:1 2-cycle oil mixture
Plug Type
NGK CM6
Power Type
Gas
Product Height
4.33" (110mm) from crankshaft center to top of cylinder head
Product Length
6.30" (160mm)
Product Width
3.15" (80mm) between center of mounting holes
Prop Range
18x10 - 20x10
Starter Type
Hand Held Starter
Stroke
1.18" (30mm)
Total Weight
2.5 lbs (1157 g)
