BEC FUTABA PS01RS 1A VOLT REG. FUTM0960

Ref: 84253
Estoque: Disponível
R$ 102,96
Comprar

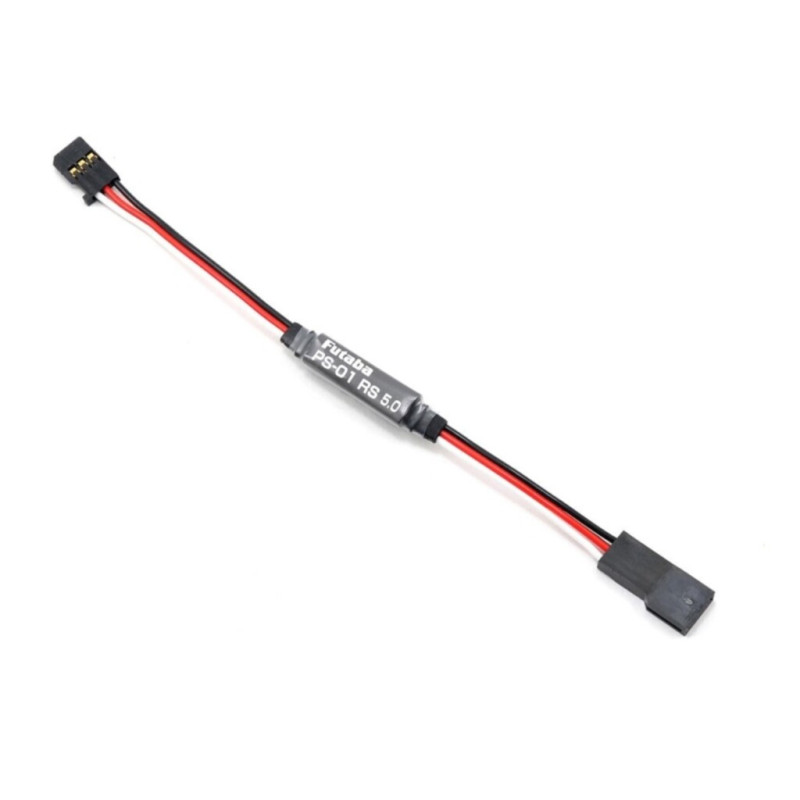

This is the Futaba PS-01RS5.0 Step Down Regulator.



FEATURES:

Allows the use of a 4.8V servo with a high-voltage (HV) 2.4GHz radio system Steps servo power down to 5V One year limited warranty through Hobby Services beginning at date of purchase



INCLUDES:

Futaba PS-01RS5.0 Step Down Regulator with Connectors and Instruction Sheet



REQUIRES:

Installing between servo and HV compatible receiver or gyro (see COMMENTS)



SPECS:

Main Application: 4.8V rudder servos

Input Voltage Range: 6.0 - 8.5V

Output Voltage: 5.0V

Rated Output Current: 1.0A (momentary maximum 5.0A)

Operating Temperature Range: -10 - +45C

Storage Temperature Range: -20 - +60C

Dimensions: 0.95 x 0.31 x 0.33" (24.2 x 7.8 x 8.3mm)

Weight: 0.18oz (5.2g)



COMMENTS:

Do not connect between battery and receiver. The receiver may operate erroneously due to insufficient capacity and fail to control the model. Cannot be used with a Y harness to supply power to multiple servos.
