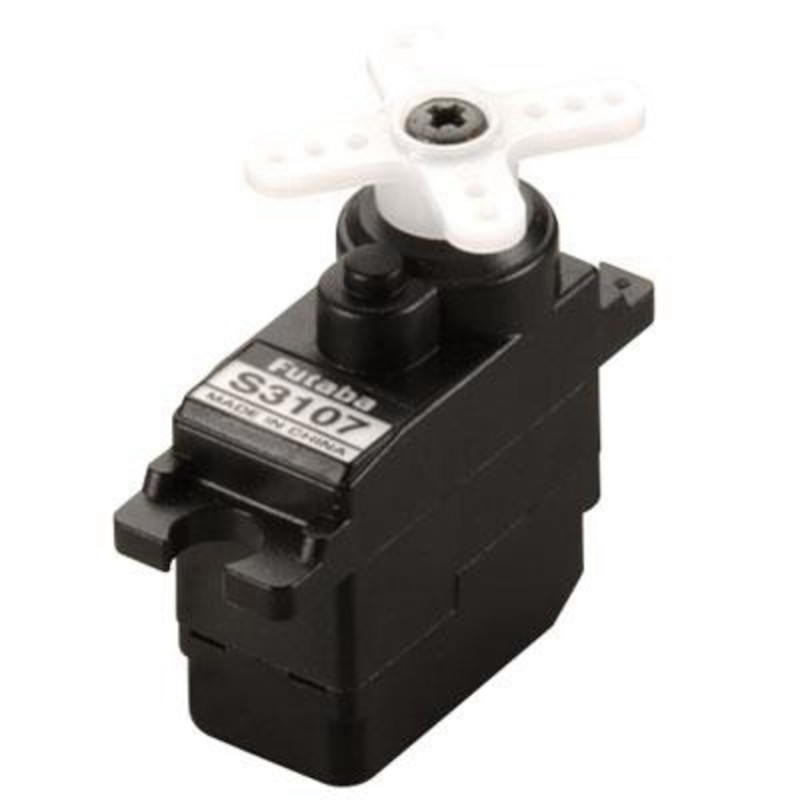

S3107 SERVO MICRO DIGITAL 9G FUTABA 01102254-3

Ref: 84192
Estoque: Disponível
R$ 160,12
Comprar

This servo can produce high-current draw from your batteries. If using NiMH or LiPo batteries, make sure they are capable of delivering sufficient amps.



FEATURES:

Delivers excellent torque and speed for its small size, light weight 3-pole motor Can be used for elevators, ailerons and rudders One year warranty Nylon gears



INCLUDES:

One S3107 Micro Servo with Futaba J male connector and mounting hardware



SPECS:

Speed: .12 sec/60° @ 4.8V

Torque: 17 oz-in (1.2 kg-cm) @ 4.8V

Dimensions: 0.9 x 0.4 x 0.8" (7/8 x 7/16 x 13/16") (22 x 11 x 20mm)

Weight: 0.32 ounce (5/16oz) (9.0 grams)

Connector: Male "J" type with approx. 5" wire

Output Shaft Diameter: 5mm



COMMENTS:

This servo cannot be used with gasoline engines or large/middle scale gliders or other models that require torque. Use of 6.0V not recommended as this will shorten servo life.

For replacement servo horn use FUTM2005
