MR MK FLIGHT-CTRL V2.1 ME FLIGHT BOARD

Ref: 82136
Estoque: Disponível
R$ 2.402,92
Comprar

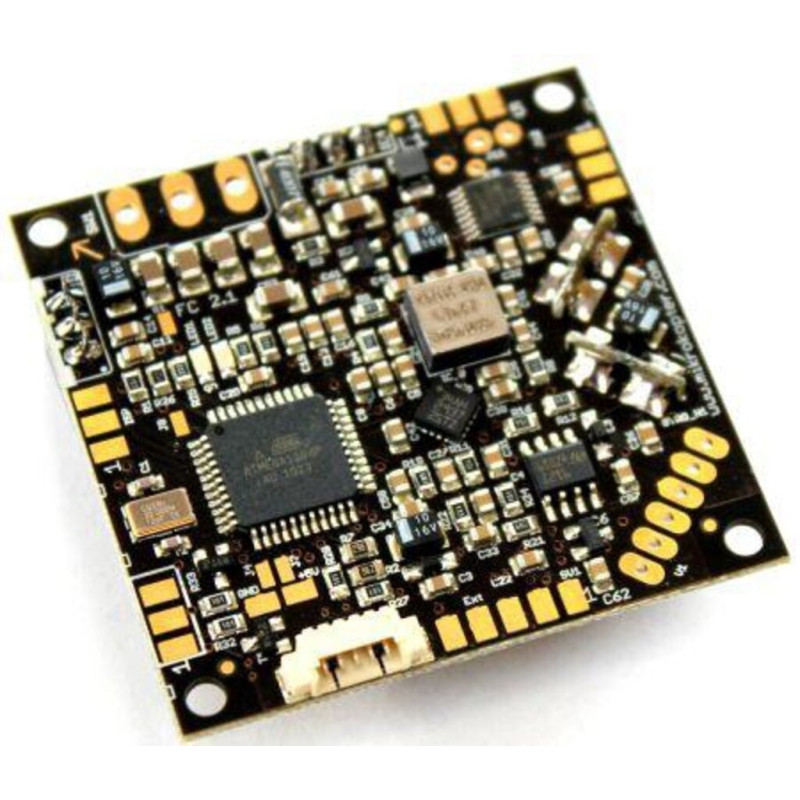

This is a Flight-Ctrl 2.1-ME kit for MikroKotper. The parts of the pcb are already assembled.

FlightCtrl ME (overview):
  • high-quality gyroscope (MEMS technology) from Analog Devices
  • 5 servo outputs
  • 2 switching regulator (like RECOM) are now included in the kit
  • 1 pressure sensor MPX4115Ais now included
  • Molex-connector for easier connection to the distribution boards
  • extra voltage regulator for Spektrum satelite receiver
  • easier use of Jeti telemetry
  • Servo and Lighting can be connected via pin header
  • 4-layer PCB Design
  • max. 4s supply

    • The FlightCtrl kit is tested and programmed (including the boot loader).

    A MKUSB or SerCon is required for debugging or the parameterization.

    Scope of delivery
  • 1 SMD-preassembled board incl. MPX4115A
  • Other components: Buzzer

    • Hints
  • The optional power switch or molex cable has to be ordered in the shop separately !
  • You should always update to the latest available firmware version.
  • Please mount the FlightCtrl ME vibration-free. You may use our M3x15 vibration damper for mounting...
  • Only for private, non-commercial use
  • Please note our software license before using.
    		•
