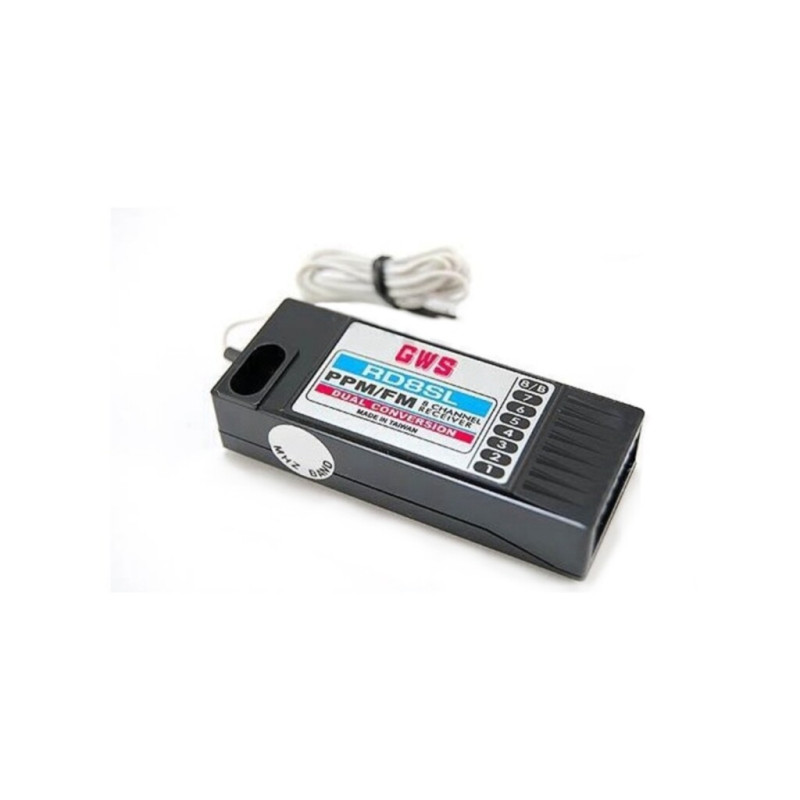

RD8SL REC.DUAL 8CH FM 72MZ GWS

Ref: 7320

Estoque: Disponível

R$ 120,15

Comprar

GWS 8ch Dual Conv 72mhz FM Receiver ESTE RECEPTOR UTILIZA CRISTAIS DUAL CONVERTION Model: GWRXS001

Channels: 8ch System: FM (PPM)

Dual Conversion Voltage: 4.8~7.2v

Current Drain: 10mA

Weight: 22g/.78Oz Size:65x25x15.5mm

Range: 600mtr+ / 2000ft The compact, lightweight and slim design make the 8-channel dual conversion FM receiver especially suitable for narrow fuselages. Whole new designed, active front end with dual gate MOS-FET to improve the inter-modulation and interference suppression. The AGC (Automatic Gain Control) stage features a broad regulatory range and ensures optimum reception both at close and long range. The Multi-stage band passed filter and crystal filter are for narrow-band reception, high adjacent channel selectivity and interference rejection.

Spec.

V Sensitivity : 1

Adjacent channel rejection : better than 65dB at 10k Hz

Image rejection : better than 65dB

Spurious rejection : better than 80dB

Inter modulation : better than 65dB
