S3003 SERVO FUTABA 3.2KG FUTM0031

Ref: 673

Estoque: Indisponível

R$ 120,12

Comprar

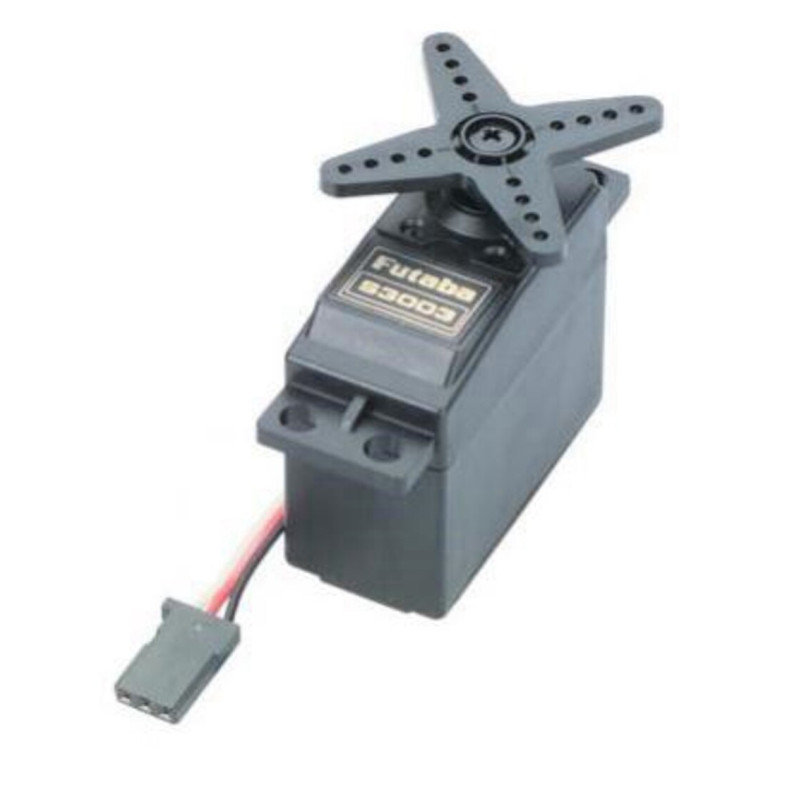

This is the Futaba S3003 Standard Servo.

This basic servo is used in cars, boats, or where standard servos are used.

This is the replacement for the following servos, S138,S148,S22,S38 and S12.

This servo can produce high-current draw from your batteries.

If using NiMH or LiPo batteries, make sure they are capable of delivering sufficient amps.

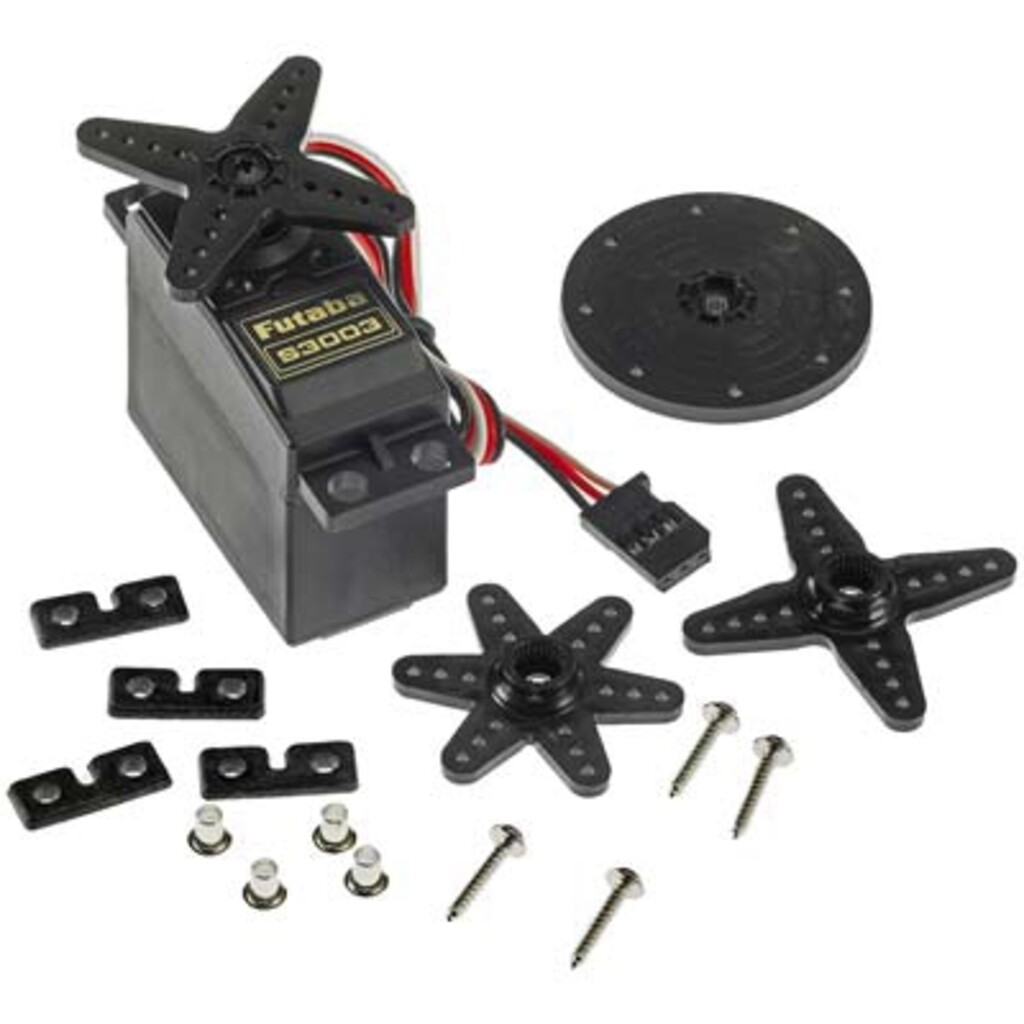

INCLUDES

One S3003 standard servo with preinstalled Xshape servo horn

Four brass eyelets

Four Black rectangular rubber grommets

Four servo mount screws

One servo wheel 1-3/8" (35mm) in diameter

One X-shape servo arm 1.5" (38mm) across

One star shaped arm 1-1/4" (32mm) across

Nylon gears

One year warranty

SPECIFICATIONS

Speed: 0.23 sec/60° @ 4.8V
0.19 sec/60° @ 6V

Torque: 44 oz-in (3.2 kg-cm) @ 4.8V
57 oz-in (4.1 kg-cm) @ 6V

Dimensions: 1.6 x 0.8 x 1.4" (1-9/16 x 13/16 x 1-7/16")
(40 x 20 x 36mm)

Weight: 1.3oz (1-5/16oz) (37g)

Connector: "J" type with approx. 5" lead

9/20/95

ir/jl

updt jxs 10/29/03

updt jxs 4/13/04

updt mcw 5/19/04

updt jxs 10/29/04

updt JMLM 12/2/10
