AVIAO TO PIAGET 3D EP ARF TOHA1024

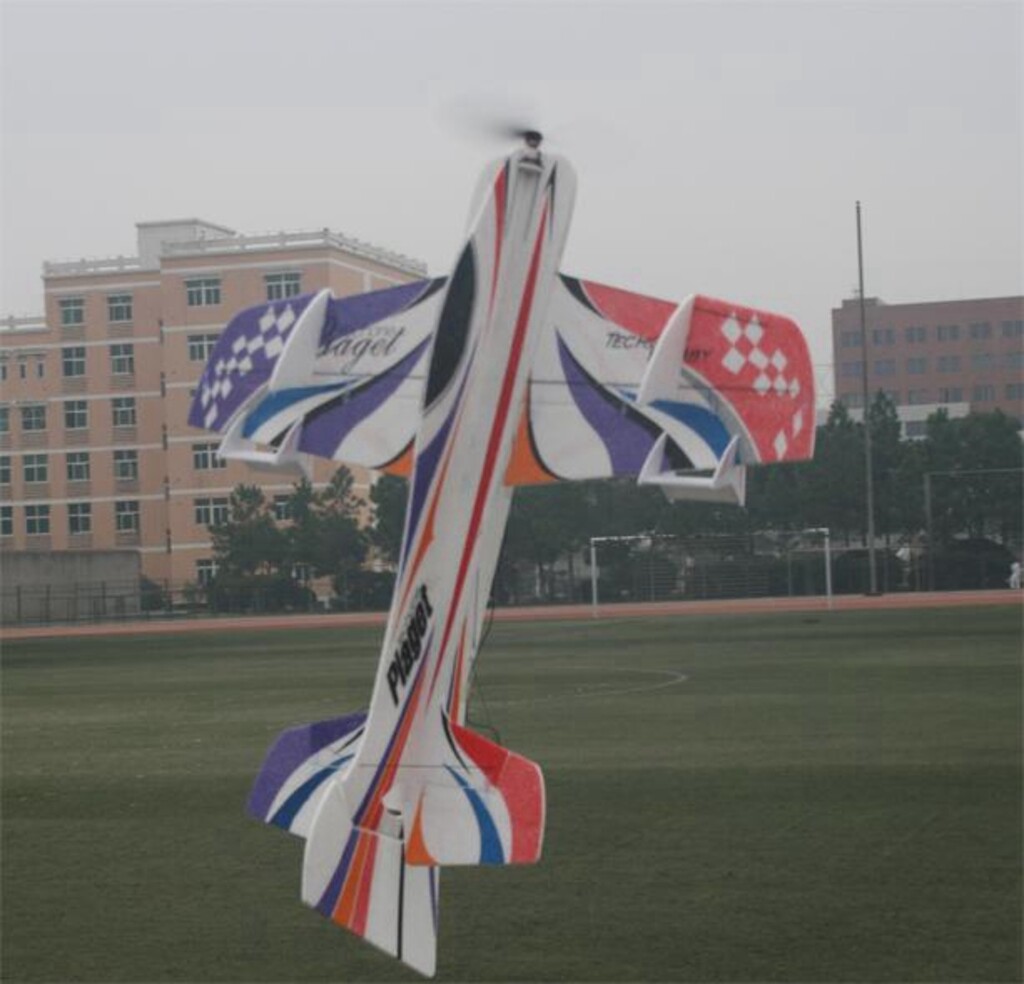

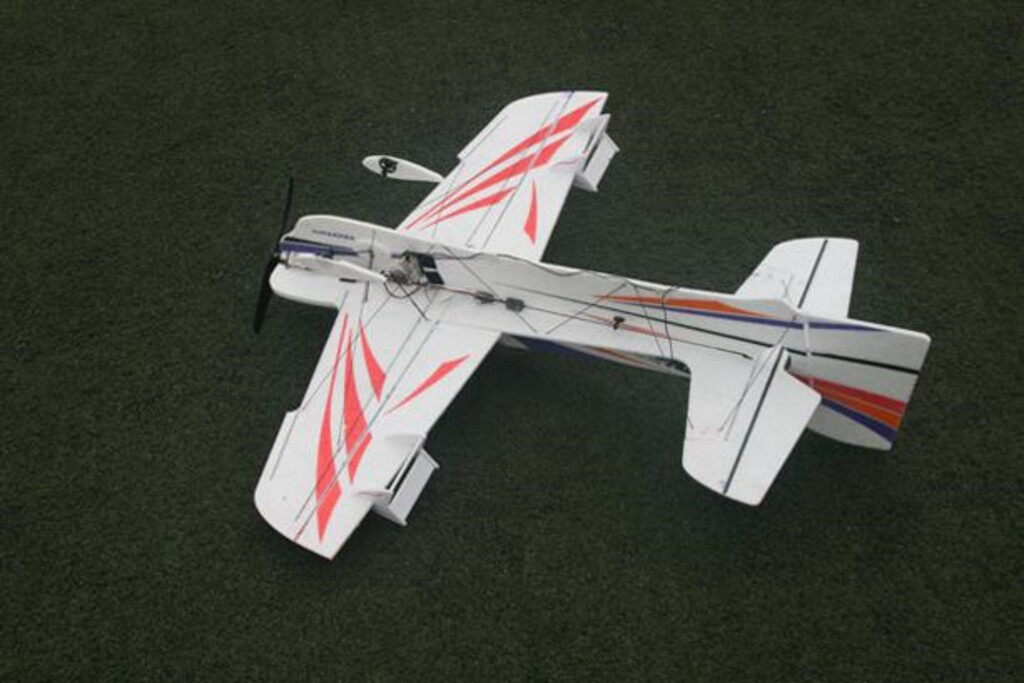

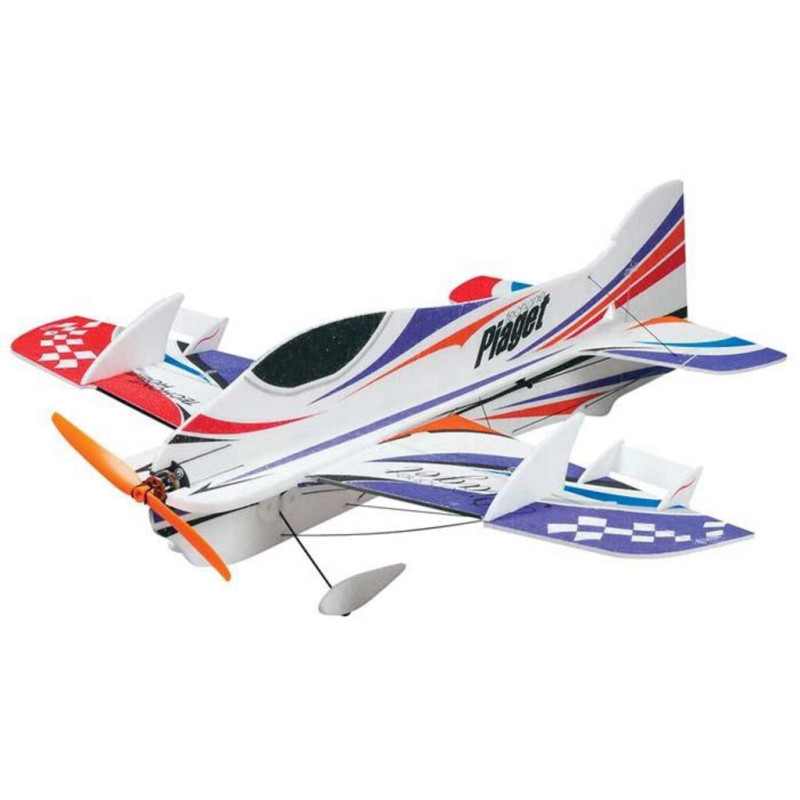

This is the electric powered, radio controlled, almost ready to fly, Piaget 35" EPP Flat Foam Monoplane from Tech One.

Ideal for indoor flight and capable of outdoor flight in low winds.

FEATURES:

• Construction: 0.20" (5mm) thick EPP foam with carbon fiber truss system to add strength and eliminate flex
• Wings: One-piece
• Aileron Control: Single servo
• Landing Gear: Rods with 1" (25.4mm) plastic wheels, foam wheel covers and carbon fiber strip for tail skid
• Pushrods: Carbon fiber
• Building Time: Ready to fly in approximately three hour

INCLUDES:

Piaget 35" Flat Foam Monoplane with landing gear, wheels, pushrods, hardware and instruction manual

REQUIRES:

• Radio: At least 4-channel
• Servos: Three micro high-torque (1-ailerons, 1-rudder, 1-elevator)
• ESC: 10A brushless capable
• Motor: 300 or 370 Electrifly Rimfire Brushless recommended
• Battery: 3S 640mAh LiPo
• Battery Charger: LiPo compatible
• Propeller: 9x5 slow flyer
• Building and field equipment

SPECS:

• Fuselage Length: 35" (900mm)
• Wingspan: 32" (820mm)
• Flying Weight: 7.4 - 8.5oz (210 - 240g) with battery
• Center of Gravity (CG): 3.15" (80mm) from the leading edge of the wing, measured at the center of the wing
• Control Throws - Sport - 3D
• Ailerons: Up and Down - 1.26" (32mm) - 3.46" (88mm)
• Elevator: Up and Down - 1.10" (28mm) - 3.31" (84mm)
• Rudder: Right and Left - 1.89" (48mm) - 5.67" (144mm)
• Control throws are measured at the widest point of the control surfaces
• Exponential - Sport - 3D
• Ailerons: - 20% - 45-55%
• Elevator: - 20% - 45-60%
• Rudder: - 20% - 45-60%
