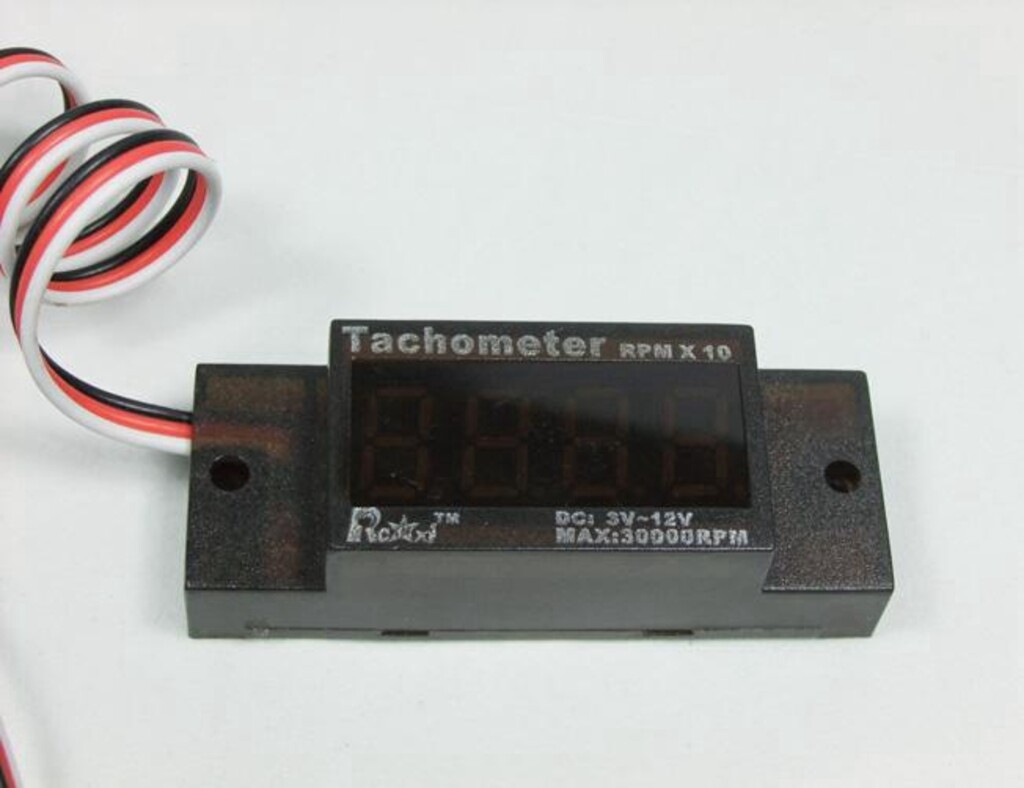

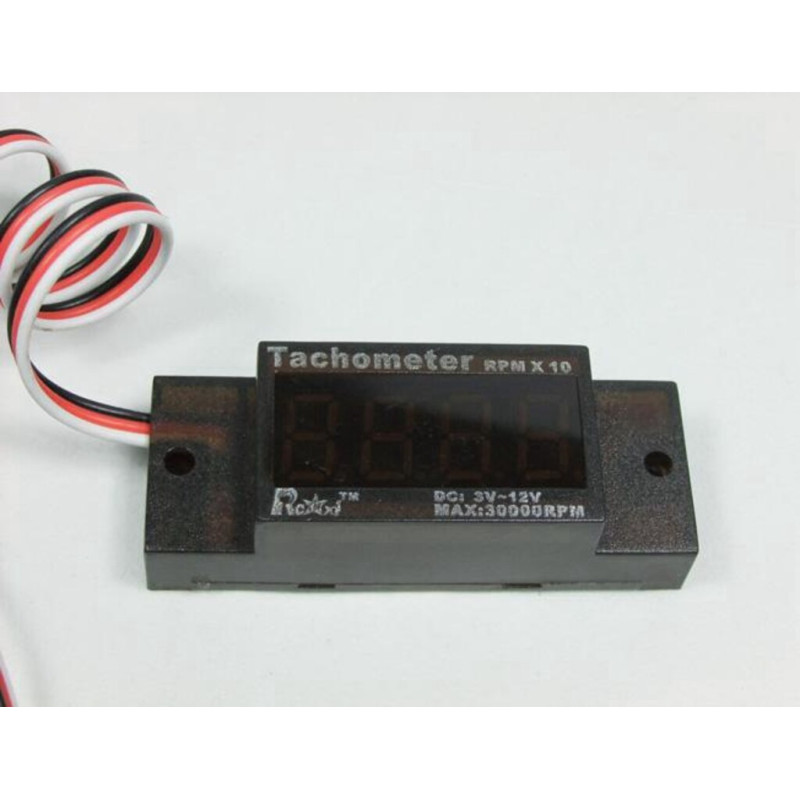

GE3004 MINI IGNITION TACHOMETER 55-25

Ref: 61797

Estoque: Disponível

R$ 248,82

Comprar

1:Use P1C16f628a microcontrollers

2ÂFDo not need batteries, power from the ignition

3: Standard Futaba Plug(Black-negative Red-Postive and White-Signal)

4:Using high-brightness LED digital tube

5:Input voltage range: 3.5V -8.4V

6:Current consumption 25mA-60mA

7:Mini tachometer indicates up to 30000rpm

8:Actual RPM=Display digital *10

9:Body size:41mm L*17mm W*12mm H

10: Window size:30mm L*15mm H

11:Weight: 8.5g(0.3OZ)

Instructions:

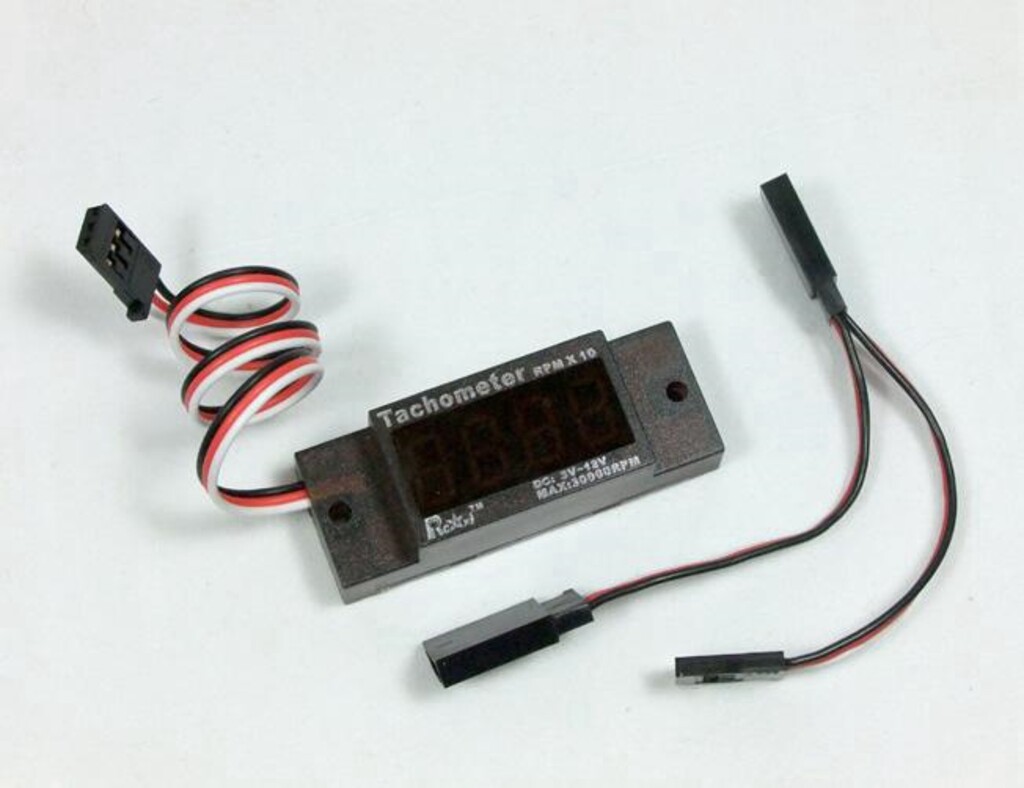

1:The Y wiring tandem between in the Hall sensor and the ignition

2: The tachometer plug the other end with Y wire

3:Connected to ignition power supply and can be displayed

Note: That connecting plugs do reinforcement.To preven vibration. the hall sonsor& tachmoter wire leave from the ignition high-voltage wire, And receiver wires over 30cm

Connection tachometer is not recommended after the use of the flight, Best to remove the Y wire to restore the original sensor connection

If ignition have an additional tachometer pinout,You must be connected to dedicated tachometer signal wire
