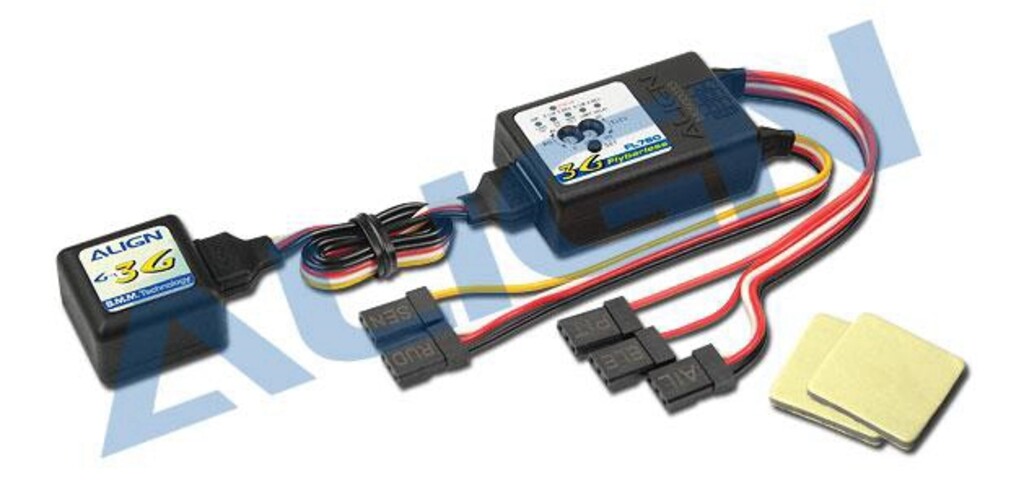

TR450 SPORT 3G FLYBARLESS SYSTEM H45109

Ref: 52108
Estoque: Disponível
R$ 494,92
Comprar
Instruction: Specification:
- Use for T-REX450 series(PRO/SPORT/SE V2/SE)B
- 3-axis gyroscopic flybarless system to simulate the stability of mechanical flybar system, yet at the same time achieving agile 3D performance.
- Utilizes Silicon Micro Machine (SMM) sensors for excellent stability.
- 12 bit processors providing ultra high resolution, resulting in highly precise controls
- Software upgradable through PC interface adapter
(sold separately)
- Simplistic setup process without the need of external devices. Setup is done through 5 steps and 2 sensitivity adjustments. Rudder setup is identical to GP780 gyro, minimizing learning curve.
- Flybarless system dramatically improves 3D power output and efficiency, resulting in reduced fuel or electricity consumption.
- Highly sensitive gyroscopic sensors combined with advanced control detection routine providing higher hovering and aerobatic stability than other flybarless system.
- Suitable for all CCPM and mechanical mixing system.
- Comaptible with helicopter of all sizes from T-Rex 250 to T-Rex 700.
- Innovative Pitch Gau as an aid to facilitate pitch adjustments.
- High frame rate signal output for faster and higher precision servo response.
- Capable to operate between 3V to 8.4V, compatible with high voltage servos.
- Small footprint, light weight, minimalists and reliable design.		 - Suitable Voltage Range:DC 3V~8.4V
- Current Comsumption:<80mA @ 4.8V
- Flip and Roll rate detection speed: :±300degrees/sec
- Rudder rate detection speed:±500degrees/sec
- Sensor resolution: 12bit
- Operating temperatur:-20Ž~65Ž
- Operating humidity:0%~95%
- RoHS certified
- Dimension:
Control box:42x26.5x14.5mm
Sensor:22.3x21.7x14mm
-Weight:
Control box:16g
Sensor:9g

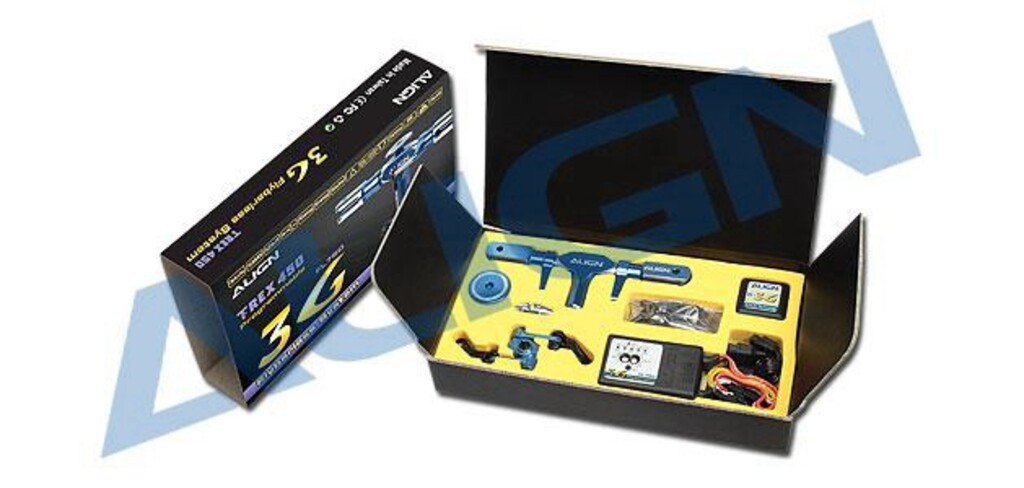

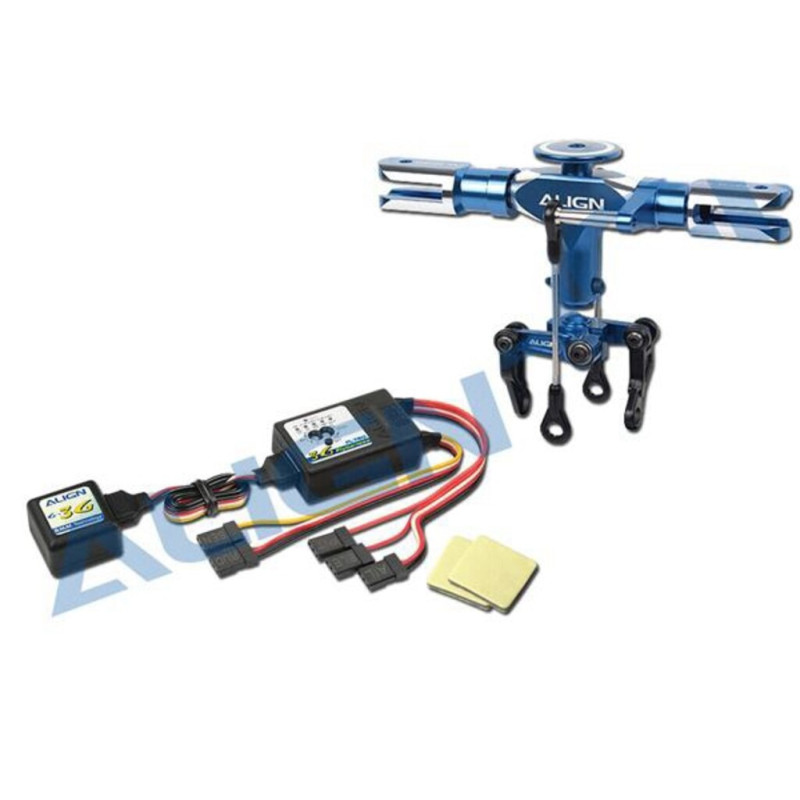

Accessories:
- Main Rotor head Set x1
- Flybarless control unit x1
- Flybarless Sensor x1
- Screw bag x1
- Linkage rod A x2
- Linkage ball A x2
- Head Stopper x1
- Mixing base assembly x1
- Pitch Gauge x1
- Sensor mounting foam x2
-Signal extension wire 100mm x1
