TR250 3G FLYBARLESS SYSTEM H25103

Ref: 52047
Estoque: Disponível
R$ 792,99
Comprar

Instruction:

- 3-axis gyroscopic flybarless system to simulate the stability of mechanical flybar system, yet at the same time achieving agile 3D performance.

- Utilizes Silicon Micro Machine (SMM) sensors for excellent stability.

- 12 bit processors providing ultra high resolution, resulting in highly precise controls

- Software upgradable through PC interface adapter (sold separately)

- Simplistic setup process without the need of external devices. Setup is done through 5 steps and 2 sensitivity adjustments. Rudder setup is identical to GP780 gyro, minimizing learning curve.

- Flybarless system dramatically improves 3D power output and efficiency, resulting in reduced fuel or electricity consumption.

- Highly sensitive gyroscopic sensors combined with advanced control detection routine providing higher hovering and aerobatic stability than other flybarless system.

- Suitable for all CCPM and mechanical mixing system.

- Comaptible with helicopter of all sizes from T-Rex 250 to T-Rex 700.

- Innovative Pitch Gau as an aid to facilitate pitch adjustments.

- High frame rate signal output for faster and higher precision servo response.

- Capable to operate between 4.5V to 8.4V, compatible with high voltage servos.

- Small footprint, light weight, minimalists and reliable design.



Specification:

- Suitable Voltage Range:DC 4.5~8.4V

- Current Comsumption:<80mA @ 4.8V

- Flip and Roll rate detection speed: :±300degrees/sec

- Rudder rate detection speed:±500degrees/sec

- Sensor resolution: 12bit

- Operating temperatur:-20Ž~65Ž

- Operating humidity:0%~95%

- RoHS certified

- Dimension:

Control box:42x26.5x14.5mm

Sensor:22.3x21.7x14mm

- Weight:

Control box:16g

Sensor:9g

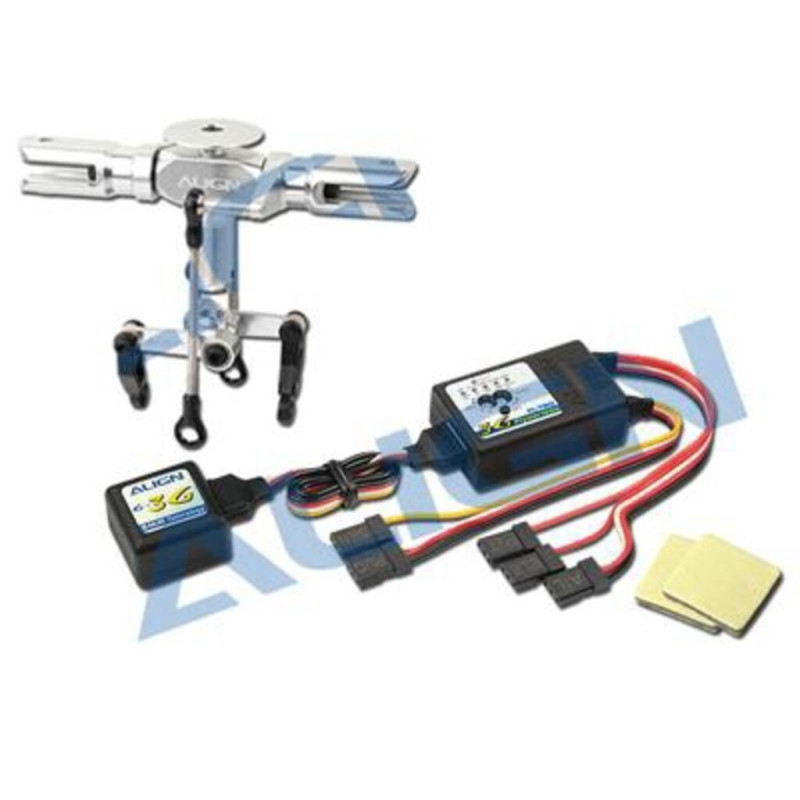

Accessories:

- Main Rotor head Set x1

- Flybarless control unit x1

- Flybarless Sensor x1

- Screw bag x1

- Linkage rod A x2

- Linkage ball A x2

- Head Stopper x1

- Mixing base assembly x1

- Pitch Gauge x1

- Sensor mounting foam x2

- Signal extension wire 100mm x1
