TR700 FLYBARLESS 3G SYSTEM HN7093T

Ref: 49696
Estoque: Indisponível
R$ 1.146,75
Comprar

Instruction:

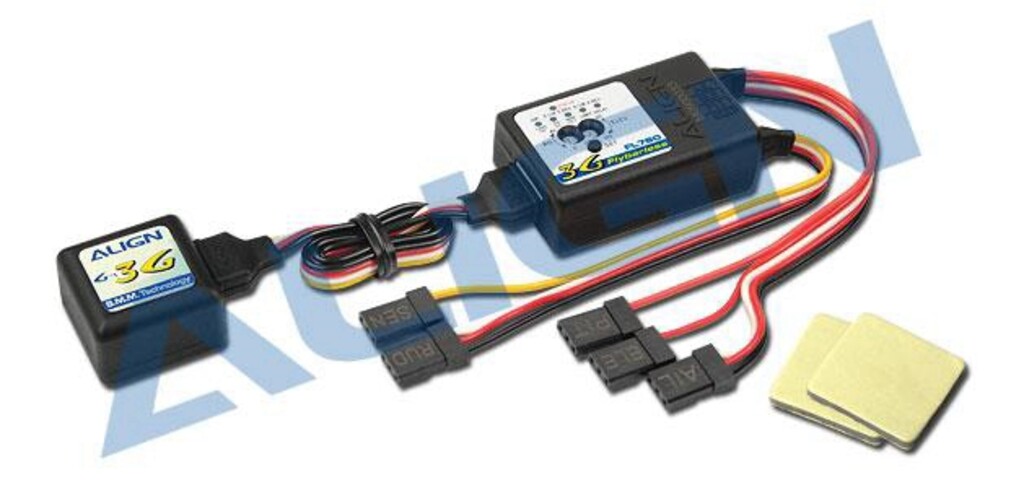

3-axis gyroscopic flybarless system to simulate the stability of mechanical flybar system, yet at the same time achieving agile 3D performance.

Utilizes Silicon Micro Machine (SMM) sensors for excellent stability.

12 bit processors providing ultra high resolution, resulting in highly precise controls
Software upgradable through PC interface adapter
(sold separately)

Simplistic setup process without the need of external devices. Setup is done through 5 steps and 2 sensitivity adjustments. Rudder setup is identical to GP780 gyro, minimizing learning curve.

Flybarless system dramatically improves 3D power output and efficiency, resulting in reduced fuel or electricity consumption.

Highly sensitive gyroscopic sensors combined with advanced control detection routine providing higher hovering and aerobatic stability than other flybarless system.

Suitable for all CCPM and mechanical mixing system.

Comaptible with helicopter of all sizes from T-Rex 250 to T-Rex 700.

Innovative Pitch Gau as an aid to facilitate pitch adjustments.

High frame rate signal output for faster and higher precision servo response.

Capable to operate between 3V to 8.4V, compatible with high voltage servos.

Small footprint, light weight, minimalists and reliable design.

Specification:

Suitable Voltage Range:DC 3V~8.4V

Current Comsumption:<80mA @ 4.8V

Flip and Roll rate detection speed: :±300degrees/sec

Rudder rate detection speed:±500degrees/sec

Sensor resolution: 12bit

Operating temperatur:0Ž~65Ž

Operating humidity:0%~95%

RoHS certified

Dimension:

Control box:42x26.5x14.5mm

Sensor:22.3x21.7x14mm

Weight:

Control box:16g

Sensor:9g

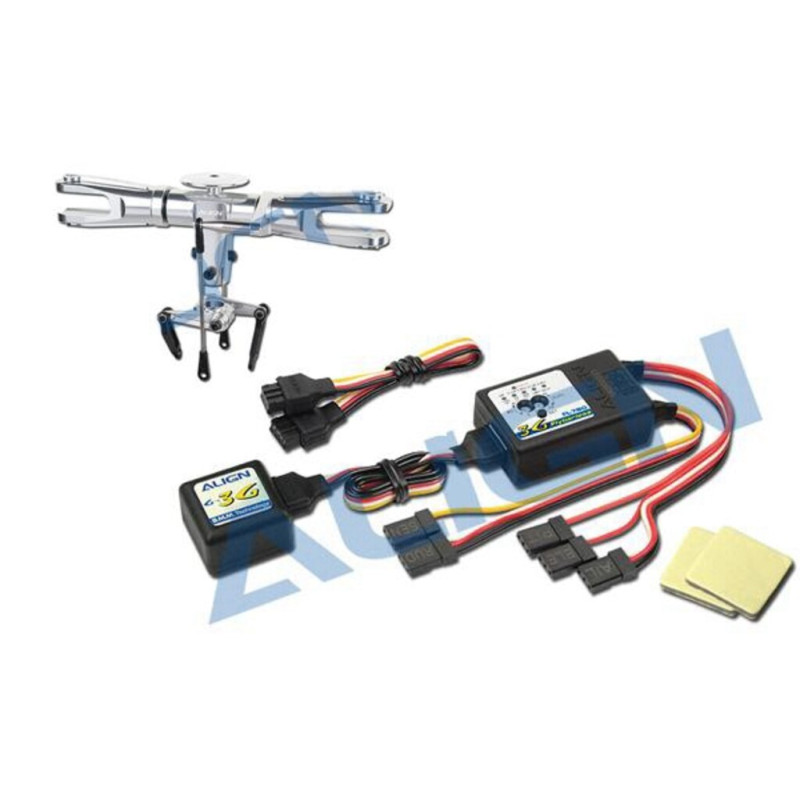

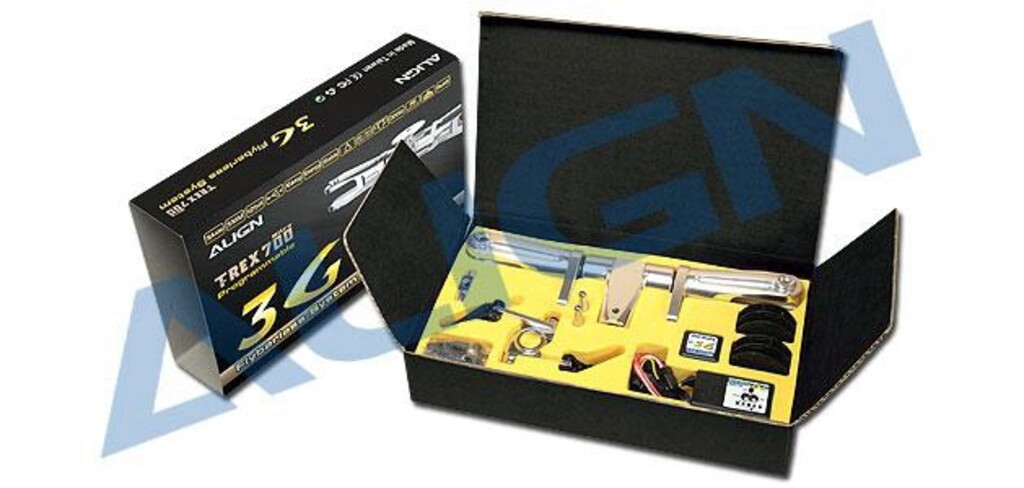

Accessories:

Main Rotor head Set x1

Flybarless control unit x1

Flybarless Sensor x1

Screw bag x1

Linkage rod A x2

Linkage ball A x2

Head Stopper x1

Mixing base assembly x1

Pitch Gauge x1

Sensor mounting foam x2

Signal extension wire 100mm x1

Signal extension wire 220mm x1

F servo horns x3

J servo horns x3
