ALIGN STARTER SUPERIOR (FOR AIRPLANE) HFSSTQ02T

Product:

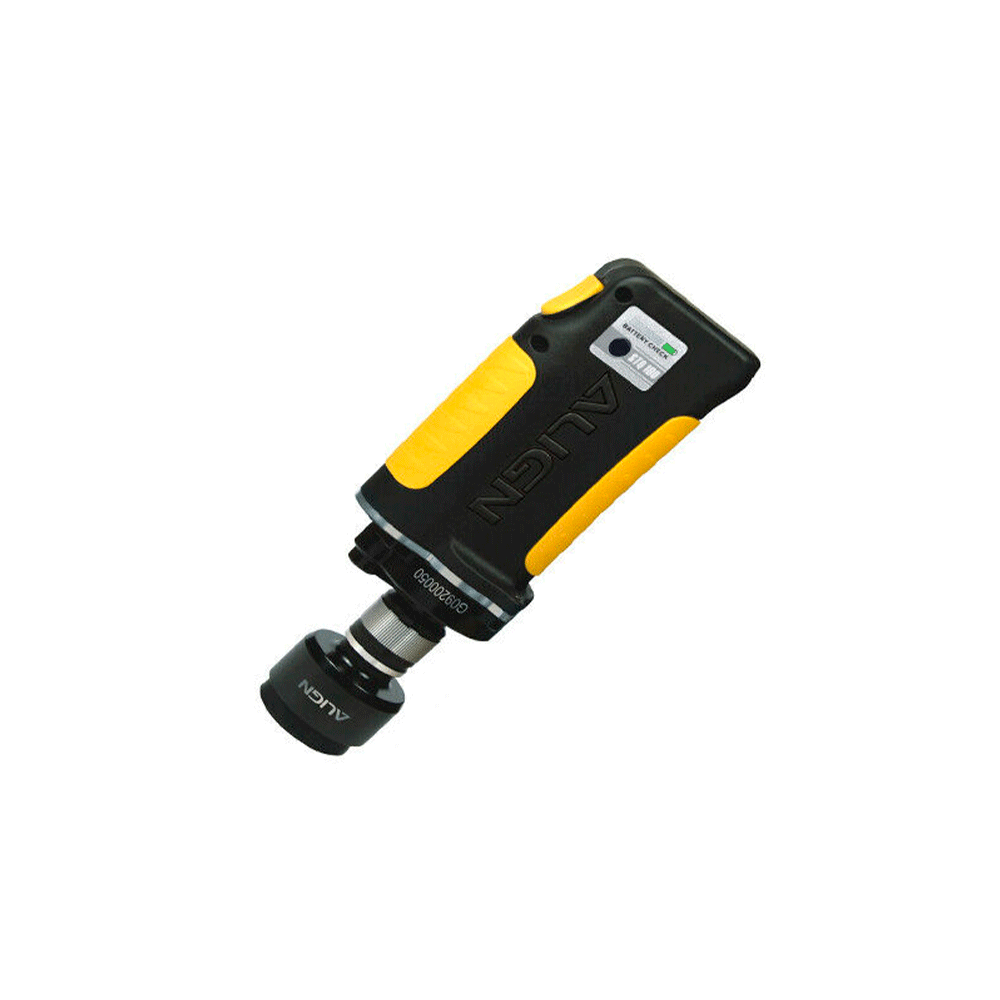

Focus Shot:

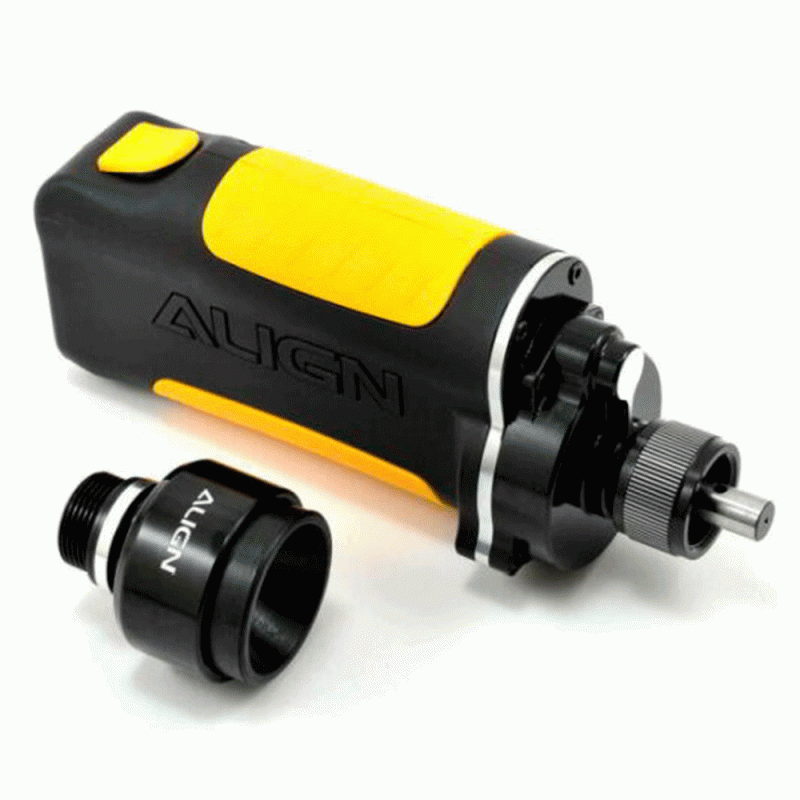

Focus Shot(double one way bearing design):

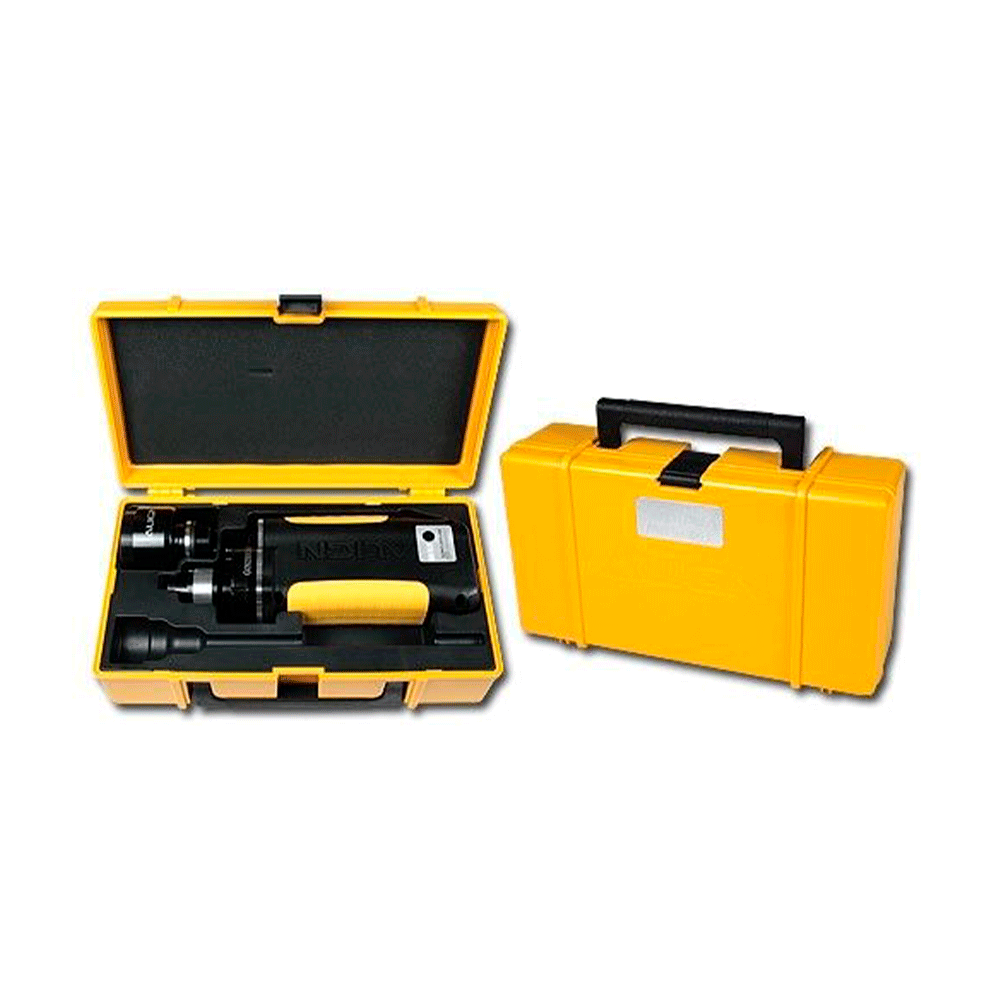

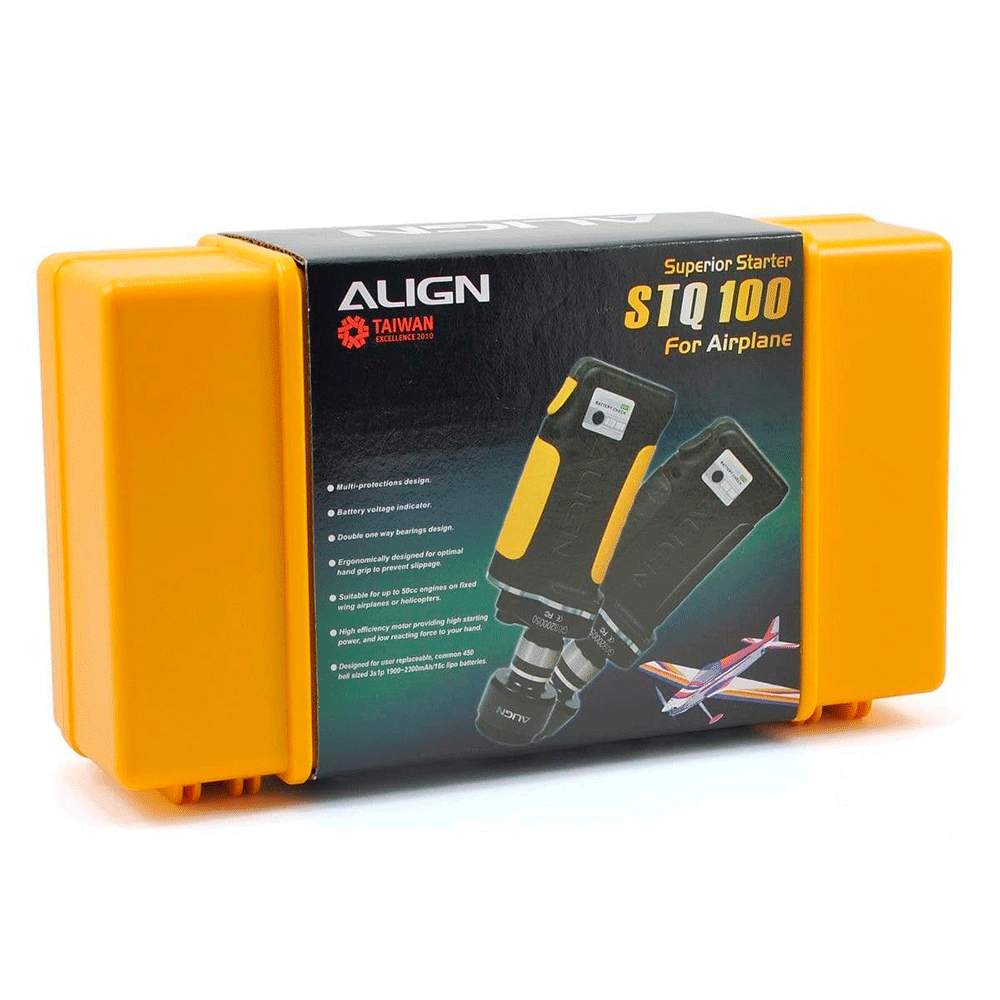

Package:

Package:

Instructions:

• Ergonomically designed for optimal hand grip to prevent slippage, light  weight, and easy to assemble/disassemble for transport ease. Suitable  for fixed wing airplanes or helicopters, engine can be started with a  simple one hand press on the button.
• Suitable for up to 50cc gasoline engine or 300 class nitro engine.
• Designed for user replaceable, common 450 heli sized 3S1P 1900~2300mAh/16c lipo batteries. Fully charged battery is  capable of 500 starts and beyond. Battery packs are charged with any T-REX 450 battery chargers.
• Starting adaptor includes double one way bearing design.
• High efficiency motor providing high starting power, and low reacting  force.
• LED battery voltage indicator and over-discharge protection circuitry.
• Battery undervoltage protection.
• Overheating protection
• Protection against stalling by flooded torque overloading engine.


Specifications:

• Suitable battery: Li-Po 3S1P 11.1V 1900~2300mAh 16C and above(maximum size 112x35x24mm)
• No load rotation speed: 2300rpm
• Battery undervoltage: 10.8V
• Quiescent current: 0 mA
• Motor overheat protection: 80°C
• Decelerate gear ratio: 5.3:1
• Size: 80x60x390mm
• Weight: 700g (w/o battery)

Accessories:

• Starter body x 1
• Airplane spinner cup x 1

Option:

• Battery:3S1P 11.1V 1900~2300mAh 16C and above Li-Poly battery
