POWER PANEL ACCU-GLO II HOBBICO HCAP0306

Ref: 44622
Estoque: Indisponível
R$ 334,62
Comprar

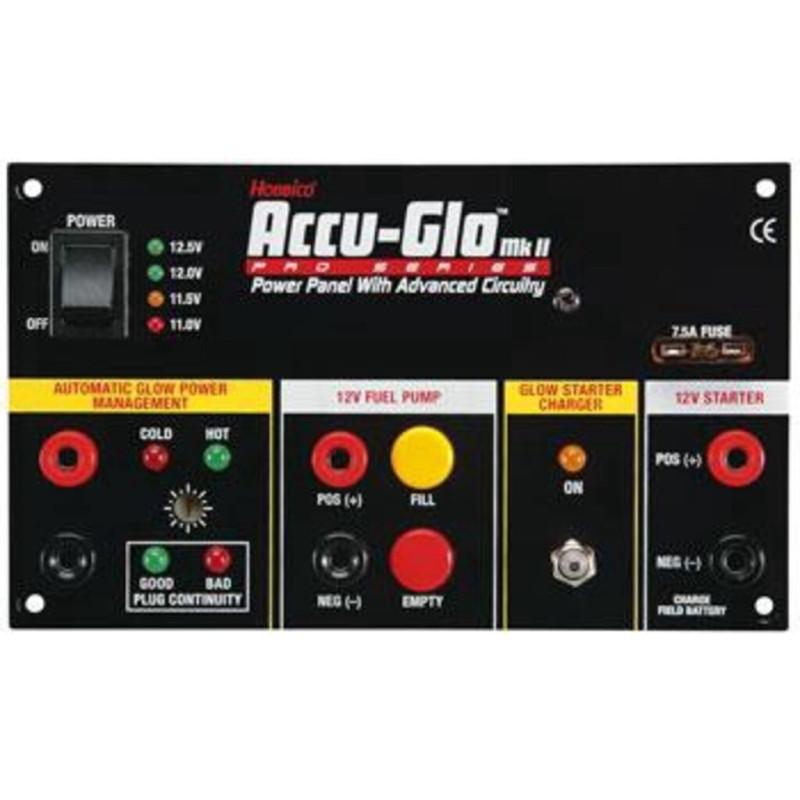

This is the Hobbico Accu-Glo II Power Panel. This panel powers Starters, Chargers, Fuel Pumps, and Glow Starters and monitors condition of Glow Plugs.

This Power Panel comes with a hard plastic case or can be mounted to any Field Box with a standard sized cutout for a Power Panel.



FEATURES:

Fuel Pump switch from original Accu-Glo was replaced by separate color-coded push-buttons for "FILL" and "EMPTY." Press once to Start, again to Stop Four LEDs, 11V, 11.5V, 12V, and 12.5V indicate Field Battery condition-an improvement from one light that glowed either Green or Red on original version Glow Starter Charger keeps unit fully charged at a constant 300-400mA rate Automatic Glow Power Management section tells when glow plug is fully charged and if plug continuity is good Adjustment dial allows automatic glow heat customization to the model; once set the unit maintains proper heat regardless of glow plug's condition Two year limited warranty



INCLUDES:

One Hobbico Accu-Glo II Power Panel with two alligator clips, two Black and two Red banana plugs, two plastic plug covers, four M3x10 self-tapping screws to mount panel to Field Box



SPECS:

Input Voltage: 11-13V DC

Input Voltage Indicators: Four LEDs

Starter Jacks-Output Voltage: 12V DC

Fuel Pump Controls: Yellow "FILL" pushbutton; Red "EMPTY" pushbutton

Glow Heat Power Circuit: Automatic heat adjustment

Glow Heat Status Indicators: "HOT" and "COLD" LEDs

Glow Heat Continuity Indicators: "GOOD" and "BAD" LEDs

Glow Starter Charger Current: 300-400mA constant current (not timed)

Glow Starter Output Jack: Glow driver mounting lug with LED

Fuse: 7.5A spade type

Weight: 8.3oz (235g)

Dimensions: 6" x 3.7" (152 x 94mm)



REQUIRES:

12V battery
