MOTOR OS FS110-A RING 60Y F5040 35410

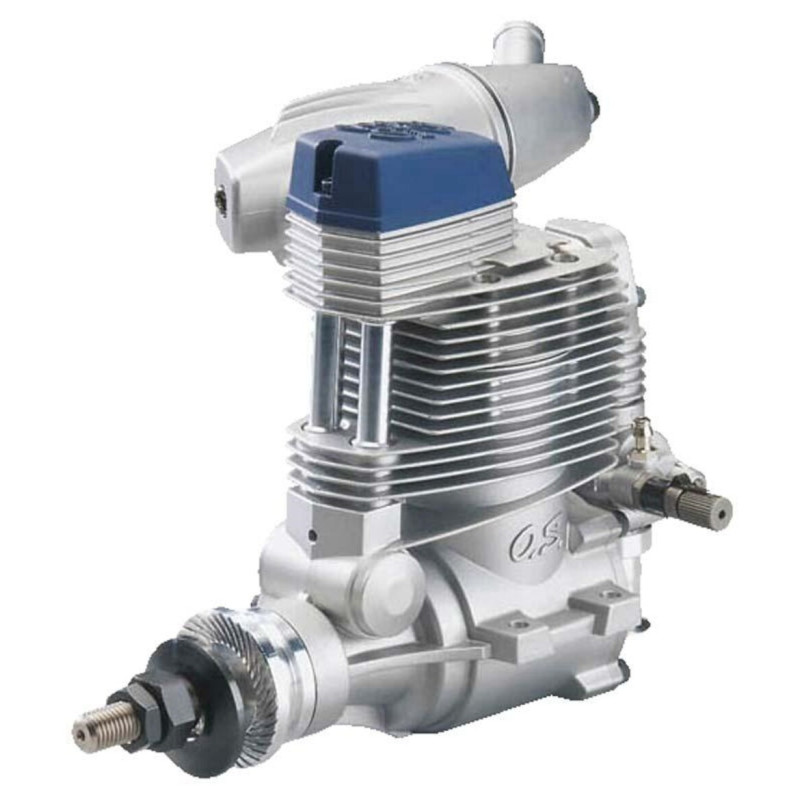

This is the O.S. Engines 110FS-a 4-Stroke Aircraft Engine with 5040 Silencer.

FEATURES:

• Muffler adjusts in or out with threaded header pipe and rotates a full 360° for more mounting options with fewer modifications
• Continuous lubrication system recirculates excess oil instead of venting it for better performance and longer engine life 60Y carburetor with longer venturi for leak-free seals, less fuel blow back and optimal air/fuel mixing
• Two year limited warranty

INCLUDES:

• O.S. Engines 110FS-a 4-Stroke Engine, muffler, needle valve extension cable, F glow plug and instruction manual

REQUIRES:

• Fuel: 5-20% nitro content with at least 18% lubricant content
• Propeller: Sport & Aerobatic 13 x 9-11, 14 x 8-10
• Scale 15 x 8, 16 x 8
• Electric starter and other field equipment

SPECS:

• Displacement: 1.10cu in (18.0cc)
• Bore: 1.20" (30.4mm)
• Stroke: 0.98" (24.8mm)
• Practical RPM: 2,000 - 11,000
• Power Output: 1.8 ps / 10,000 RPM
• Weight: 19.2oz (600g)
• Muffler Weight: 2.3oz (72g)
• Crankcase Size: 5/16-24
• Height from Mounting Tab/top of Cylinder Head: 4.1" (103.8mm)
• Height from Crankcase Bottom/top of Cylinder Head: 4.9" (125.4mm)
• Width at Mounting Tabs: 2.4" (61mm)
• Width of Crankcase Below Mounting Tabs: 1.7" (42.6mm)
• Length from Carb to Prop Washer:  4.5" (114.5mm)
• Length from center of Crankcase to Prop Washer: 2.6" (66.5mm)
• Length from center of Crankcase to center of Carb: 1.8" (46.3mm)
• Needle Valve Setting: 3-4 turns from closed
