JETI CENTRAL BOX 310 J-CB-310

Jeti Model Central Box 310

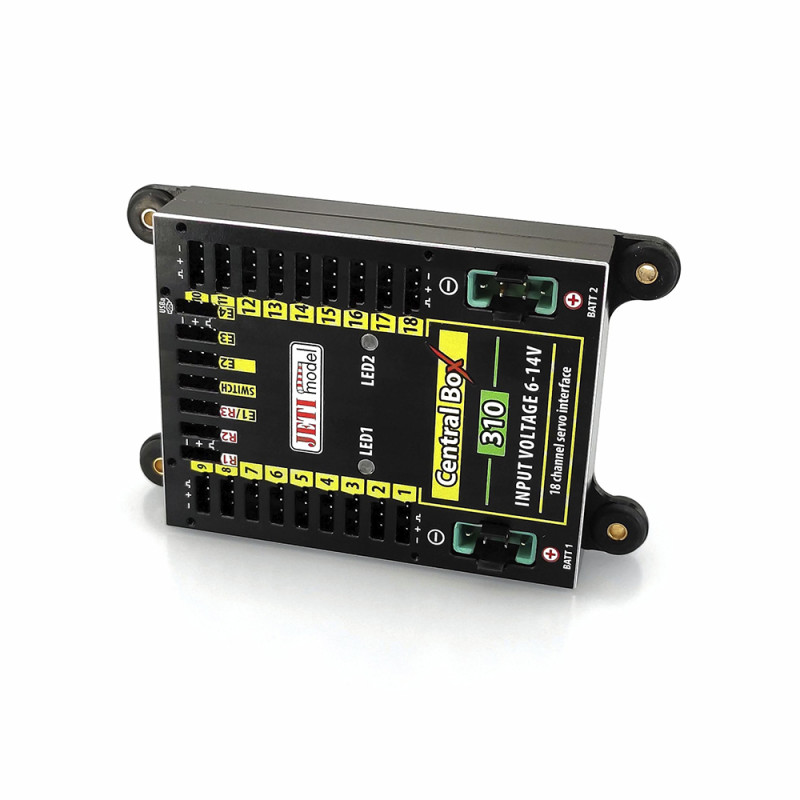

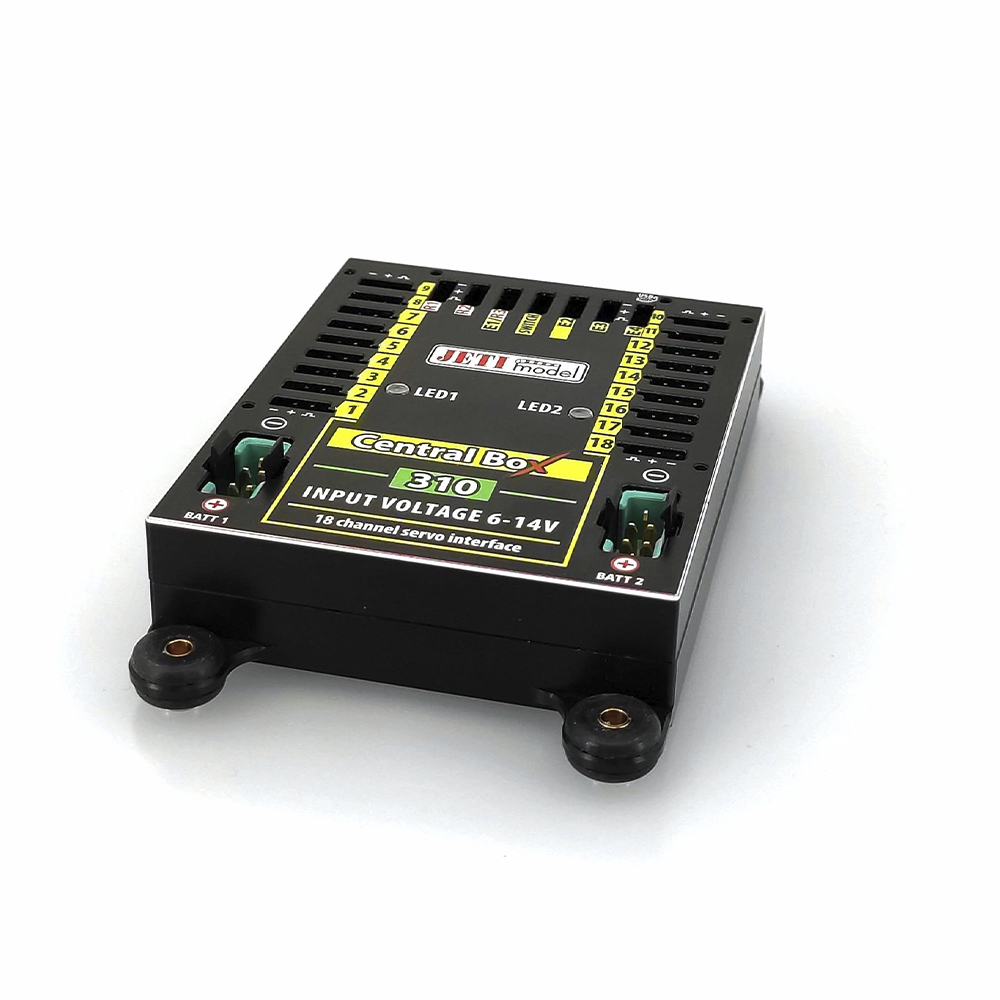

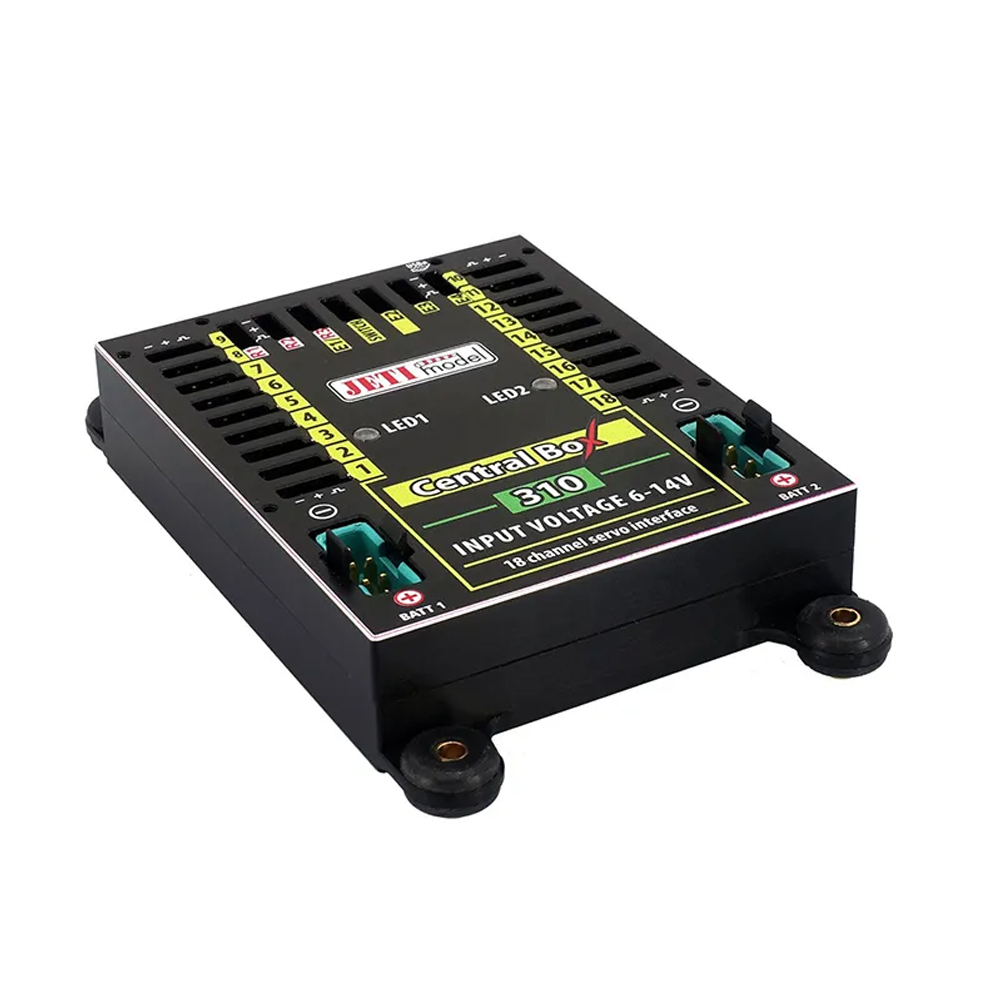

The Jeti Central Box 310 is a fully programmable switchboard with two (2) independent, stabilized power inputs with a single voltage regulator (20A Continues/80A Peak) designed for complete power and signal management of servos with great emphasis on safety. The Jeti Central Box 310 and is designed with an aluminium housing for those high power demand applications. Specially designed for models utilizing very large servos with high current draws, the overload feature of the Jeti Central Box 320 has been removed. The Jeti Central Box 310 features true Battery Redundancy, Ditex Servo Telemetry, Jeti EX Telemetry, and up to three receiver inputs (2x 2.4GHz and 1x 900MHz) with serial (PPM, EX Bus) output for complete Power & RF Signal Redundancy. In addition, the Central Box 310 has up to four (4) independent E1/E4 telemetry inputs. The onboard BEC allows the output voltage for the servo to be adjusted from 5V to 8.4V in 0.1V steps using the Jeti Transmitter Device Explorer interface.

With Jeti Duplex 2.4GHz DC/DS transmitters, the full potential of the Central Box can be used, such as an easy way to wirelessly configure the Servo Outputs, Ditex Servo & EX Telemetry, Fail-Safe Setting, or Function Assignment.

Power Supply

The power batteries are connected to the Central Box using MPX connectors. The Central Box allows two batteries to be connected. During use, the power is actually supplied from the battery with a higher voltage. If the voltage is the same, the power can be used from both batteries at the same time. When the voltage of the batteries is different, the power is not shared and each pack is isolated from the other. This allows you to use batteries of different capacities, number of cells, and chemistry types. If the power for the Central Box is provided only from one battery, it can be connected via battery (BATT 1) Input.

Magnetic Switch (Optional)

The magnetic switch is used to turn the Central Box ON/OFF and is connected to a separate slot labelled "SW". To turn on the Central Box using the magnetic switch it is necessary to hold the supplied magnet (key) to the target so that the key and the target on the magnetic switch are properly oriented.

Wireless Switch R3/RSW (Included)

A state-of-the-art device that sets Jeti as a leading designer and manufacturer of radio control systems. The wireless power switch is fully integrated into the 2.4GHz radio system. For the first time, your receiver can be turned ON/OFF with simple flipping of the switch wirelessly from the Jeti DC/DS transmitters.

Features:

• Adjustable powerful BEC for voltage stabilization (connection of standard or HV servos)
• DITEX servo telemetry support
• Possibility to connect up to 3 receivers with serial communication
• Built-in Expander function with the possibility of independent connection of up to four JETI EX sensors
• Input for magnetic switch or RC switch
• Power supply batteries connected via MPX connector
• 100Hz mode of servo outputs (10ms period)
• EX telemetry support (measurement of voltage, current, capacity, temperature, etc.)
• Easy settings changes via DC/DS transmitter (Device explorer)
• Robust metal construction with mounting holes

In the Box?

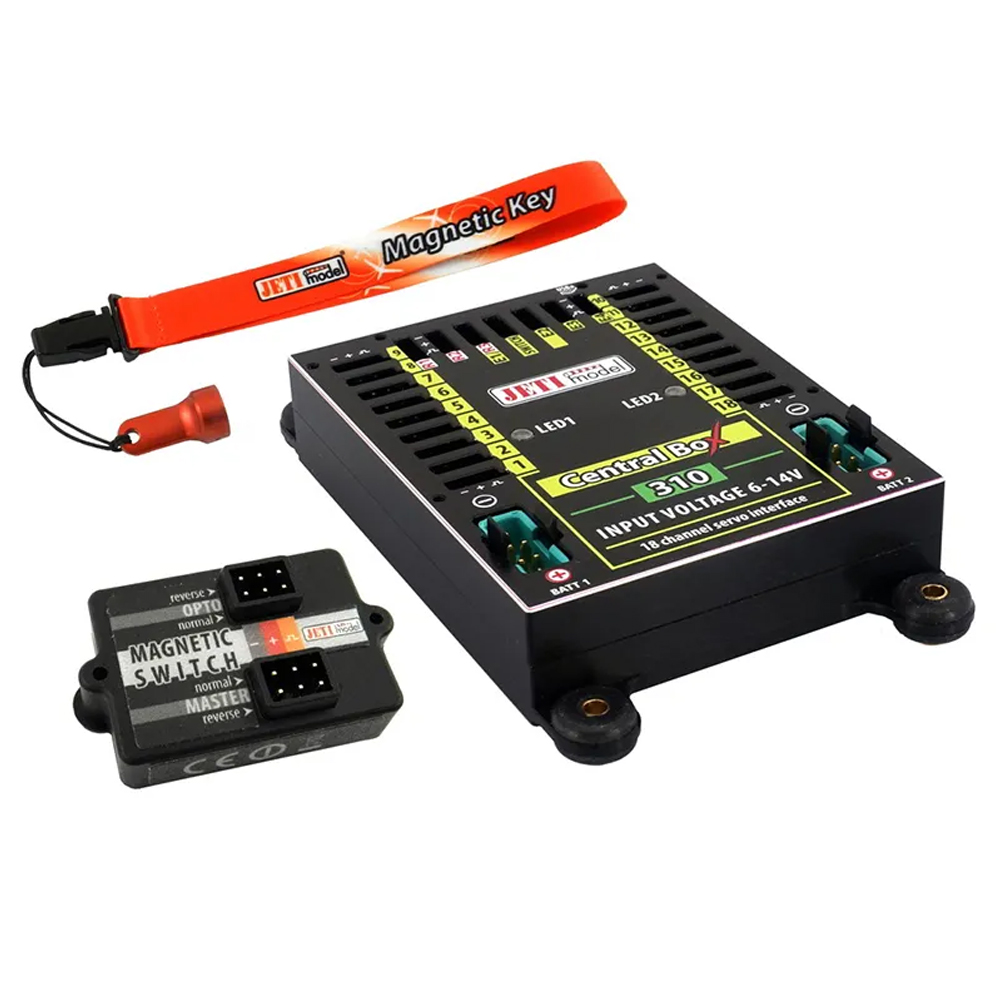

• (1) Central Box 310
• (1) Magnetic switch

Specifications:

• Weight [g]:135g

• Dimensions [mm]: 66x107x21

• Sustained current [A]: 25

• Number of channels: 18

• Telemetry: Yes

• Operational temperature [°C]: -20 up to 75

• Supply Voltage [V]: 4 up to 14

• Satellite receiver support:  Yes

• Batteries LiXX: 1-3

• Voltage BEC [V]: 5 up to 8.4

• Idle current [A]: 80

• Number of battery inputs: 2

• Voltage stabilization: Yes

• Protected servo output: No
