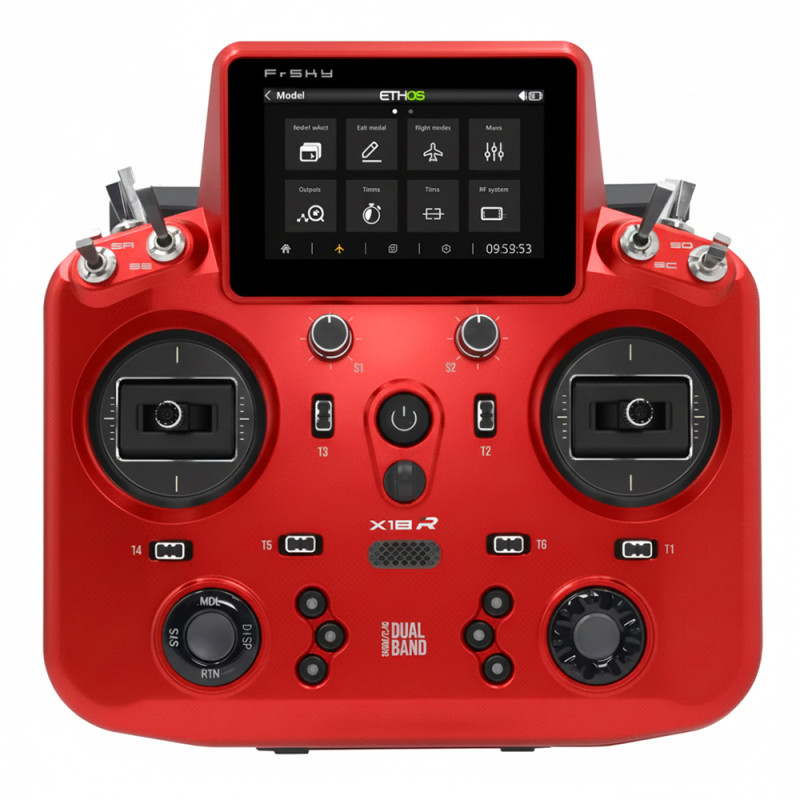

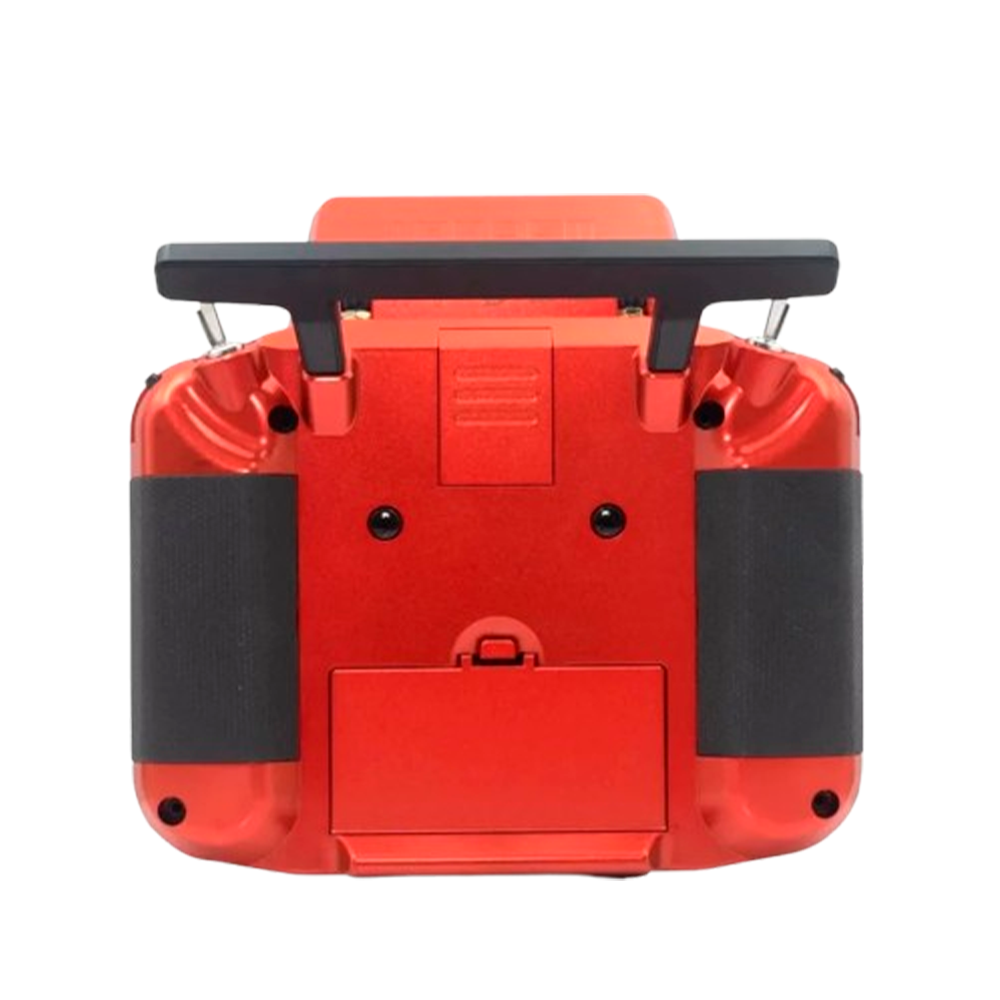

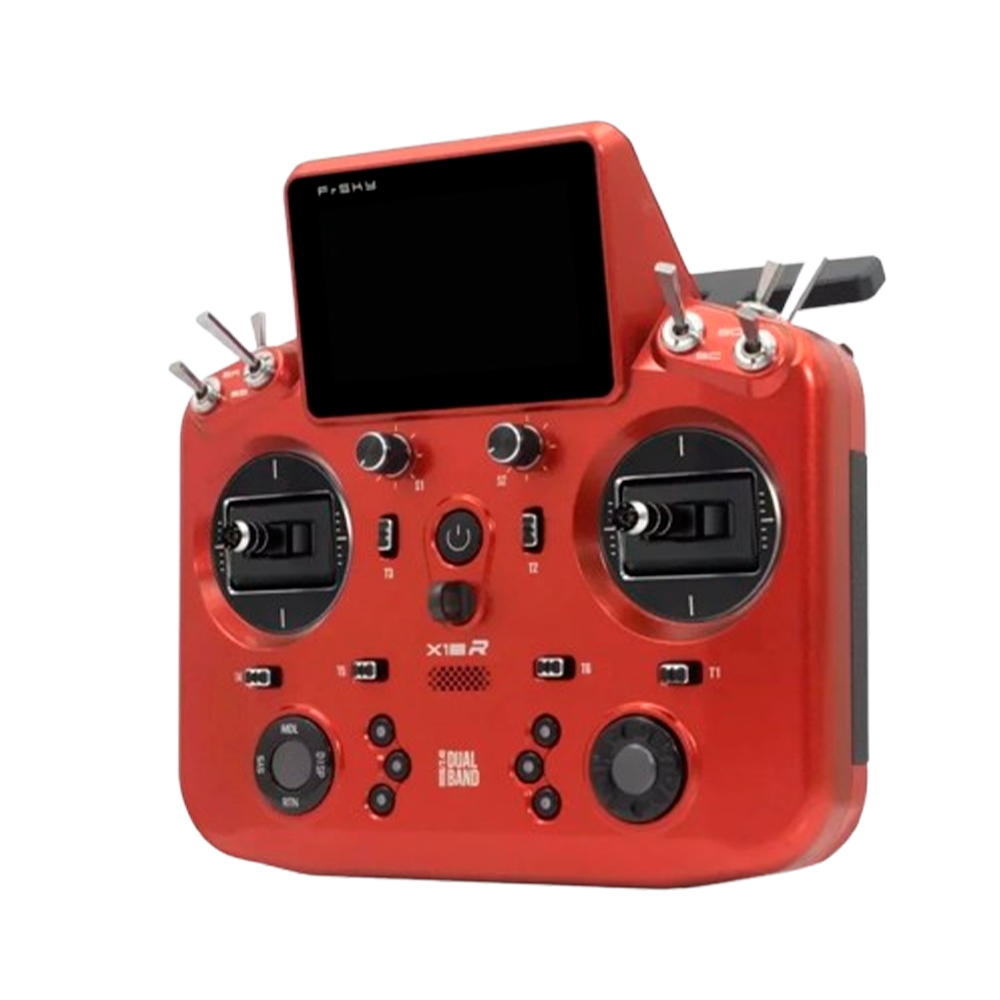

RADIO FRSKY 24CH TANDEM X18R RUBY RED FCC/MODE2

RADIO FRSKY 24CH TANDEM X18R RUBY RED

Description:

The Tandem X18 series dual-band telemetry radios benefit from an enhanced ergonomic design with rounded and more comfortable hand grips, along with an improved case design to make the radio fully stable when standing. The radio includes easy-to-reach sliders and switches, 4 standard stick trims with additional 2 extra trims added to provide more flexibility with flight attitude adjustments while operating the radio. The X18 series include further enhancements with integrated flash storage which improves and simplifies storage operation and use, and the interior of the radio has been designed with space and weight in mind, while still keeping all ETHOS setting and control features for the pilot to enjoy.

Features:

• Upgraded Robust Antenna Handle
• 900M/2.4G External Antenna Connectors (LoRa mode)
• 800×480 Resolution Outdoor High Brightness Touchscreen
• Easy-to-Reach Top Switches and Sliders
• 2 Knobs, 4 Standard Trims with 2 Extra Trims
• 6 Quick-Mode Custom Buttons (Front) and 2 Momentary Buttons (Rear)
• Built-in 512MB Flash Drive Storage
• Built-in 6-axis Gyroscope Sensor
• High-Speed PARA Wireless Training System
• Data Transmission & Recharge System via USB Type-C Interface
• Haptic Vibration Alerts and Voice Speech Outputs
• M18 High-Precision Hall-Sensor Gimbals with a Metal Panel

TD-ISRM RF Module:

• Built-in TD-ISRM RS Dual-Band Internal RF Module
  – 900M/2.4G Dual Band TD Mode
  – Dual 2.4G TW Mode
  – ACCESS 2.4G & ACCESS R9 Modes
  – 2.4G ACCST D16 Mode
• Super Low-Latency and Long-Range Control with Telemetry

Specifications:

• Dimension: 200×192×98mm (L×W×H)
• Weight: 740g(Battery Excl.) / 880g(Battery Incl.)
• Operating System: ETHOS
• Internal RF module: TD-ISRM RS
• Number of Channels: Up to 24
• Built-in Flash Storage: 512MB
• Operating Voltage Range: 6.5 ~ 8.4V (2S Li-battery)
• Operating Temperature: -10°C~60°C (14°F~140°F)
• Operating Current: [email protected] (typ.)
• Charging Current: ≤1A ±200mA
• Recharge System for 2S Li-ion Battery (USB Type-C Interface)
• USB Adaptor Voltage: 5V+0.2V
• USB Adaptor Current: >2.0A
• Backlit Touchable LCD Resolution: 800*480
• Compatibility: ACCST D16 & ACCESS 2.4G & R9 ACCESS & TD & TW receivers
• Lite Type External Module Bay
• Color Options: Chameleon/Ruby Red/Meteorite Grey/Porcelain White

In the Box:

• Tandem X18R Transmitter
• Delivered in Mode 2 and adjustable in Mode 1
• 2S LiPo 4000mAh Battery
• Transport Bag
• Neck Strap
• Manual Instructions in English
• Manual Instructions in French
