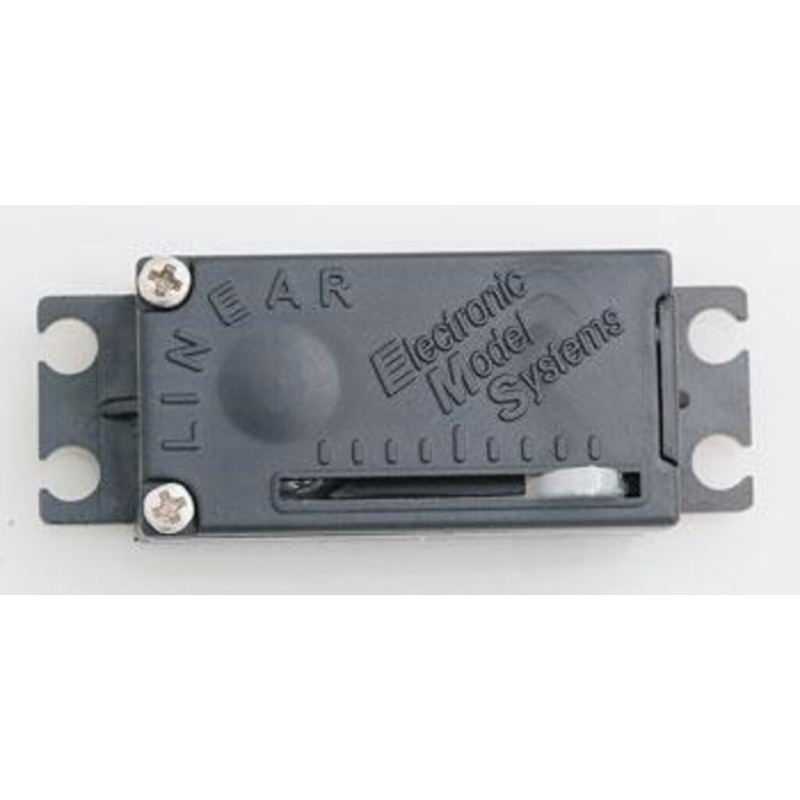

LINEAR SERVO CONVERTION KIT EMS 0102

This is Electronic Model System's Linear Servo Conversion Kit. Allows the hobbyist to convert an S148 servo to a linear output servo. Great for anything from throttle control on airplanes to animatronics!

FEATURES: EMS utilizes a Drum to coil and uncoil the output arm at a fixed radius to ensure linearity, The control horn is constrained in 5 degrees of freedom to maximize precision. Injection molded Drum is high performance co-polymeric plastic with high ultimate tensile strength and fatigue resistance properties. Converts the 42 oz/in torque into push-pull force with a maximum travel of 3/4". Installation takes just minutes and requires no tools.

INCLUDES: One Linear Converter with output arm. One instruction sheet

REQUIRES: S148 servo.

SPECS: Length: 2.18" including mounting flanges 1.60" not including the mounting flanges (case only) Width: 0.84" Height: 1.022" including control arm 0.78" not including the control arm (case only)

4-23-02kh updated tjt 102502 ir/jxs
