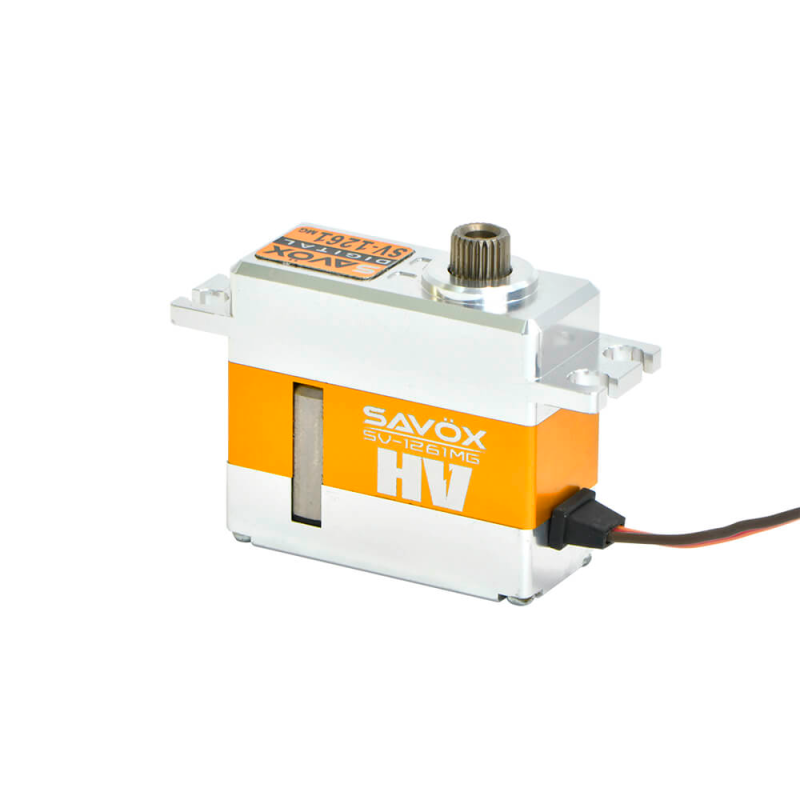

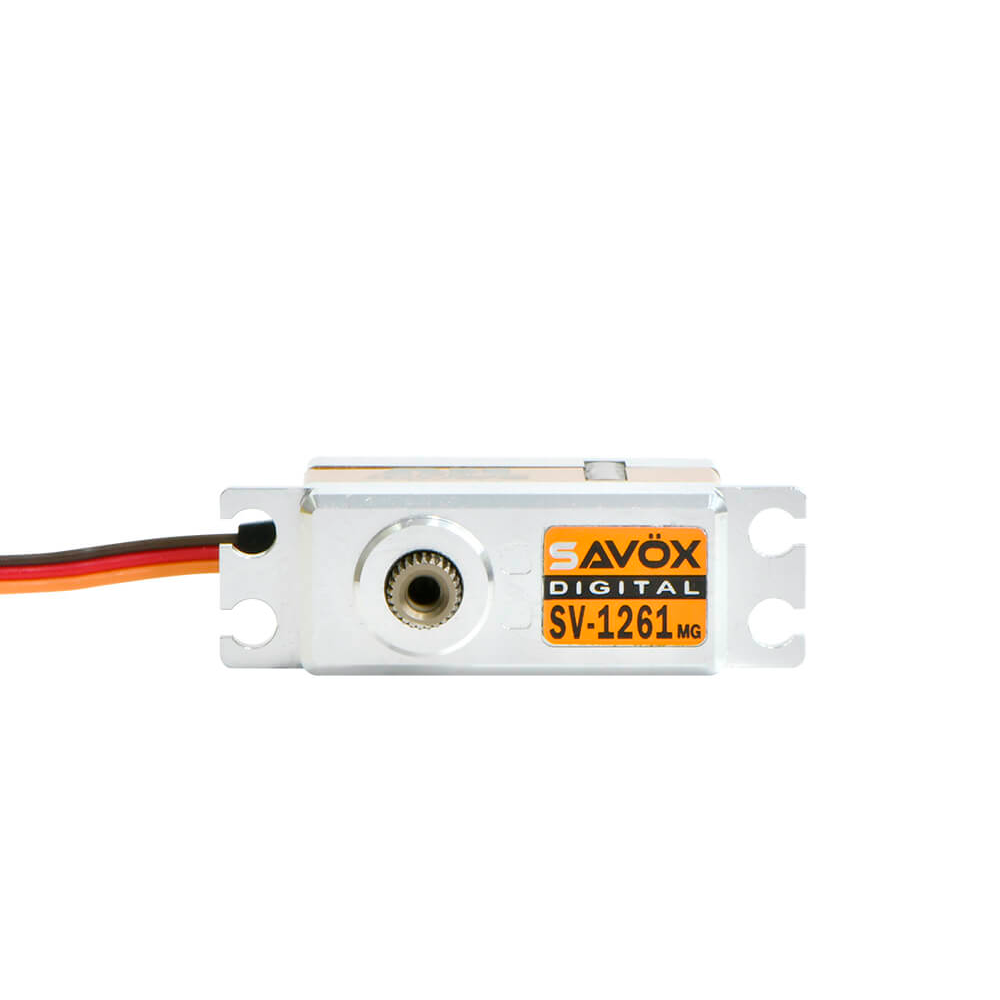

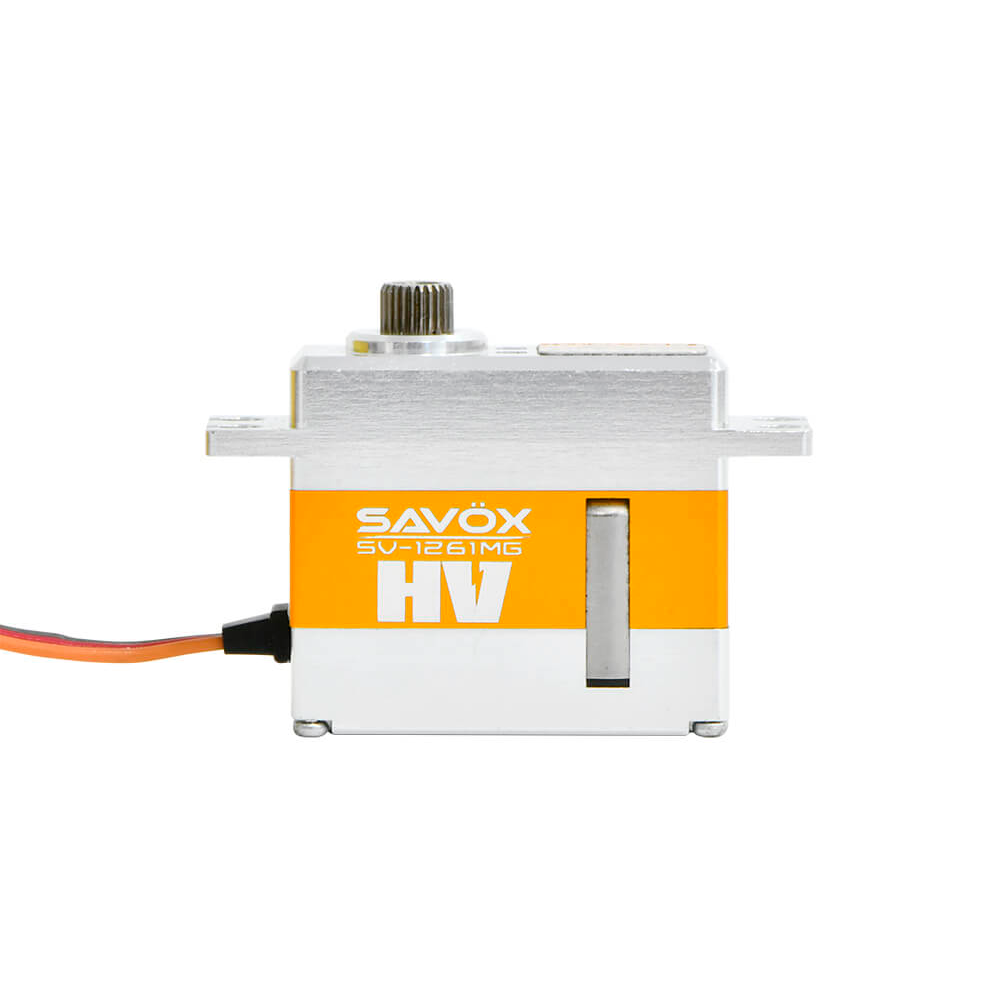

SAVOX SERVO SV-1261MG MINI DIGITAL HV ALUMINUM 7.4V 15KG 0.095S

Description:

SAVOX HV DIGITAL MINI SIZE SERVO 20KG/[email protected]

• The Savox SV1261MG takes the performance of the micro servo to a new level, increasing the torque to a whopping 20kg/cm while maintaining an impressive 0.095 second transit time. Primarily intended for air applications, this powerhouse can also be used in specialty cars, trucks, and boats and is intended to be used on direct 7.4V LiPo power.

Features:

• Metal gear train provide durability against heavy use.
• Capable of HV operation.
• All aluminium case provides strength and cooler operating temperatures.

Specifications:

• Dimensions (mm): 35.0 x 15.0 x 31.9
• Weight: 40.0g
• Torque @6.0V (kg-cm): 15.0
• Torque @7.4V (kg-cm): 20.0
• Torque @8.4V (kg-cm): 25.0
• Speed @6.0V (sec/60 deg): 0.12
• Speed @7.4v (sec/60 deg): 0.095
• Speed @8.4v (sec/60 deg): 0.08
• Ball bearings: 2
• Case: Aluminium
• Servo Horn: 25 Tooth Spline
