BEC 8A HOBBYWING U-BEC 2-3CELL BEC04

Ref: 42925

Estoque: Disponível

R$ 248,82

Comprar

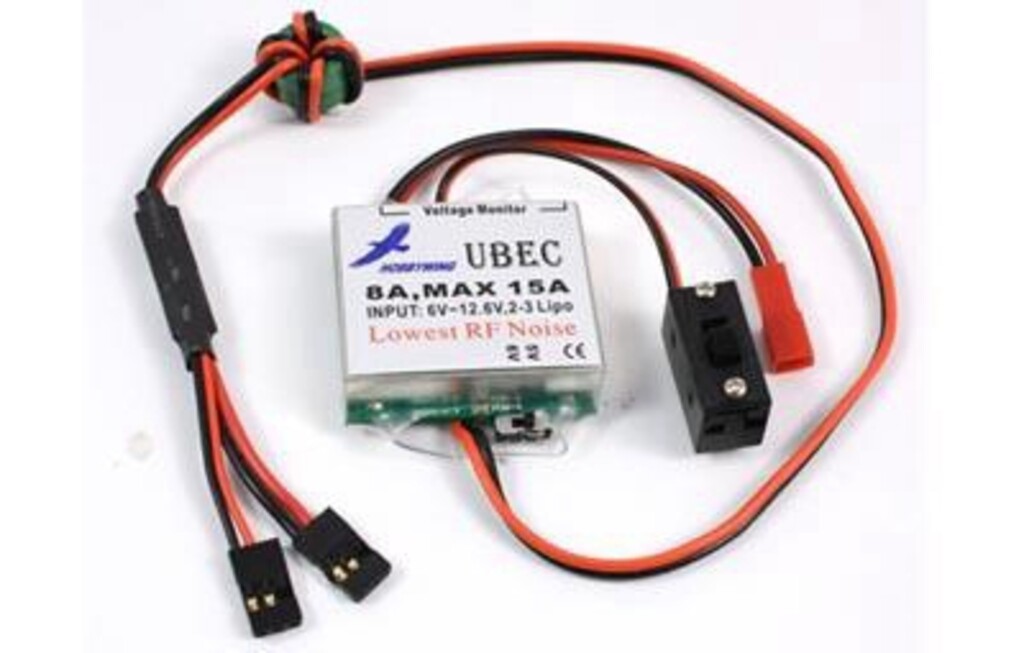

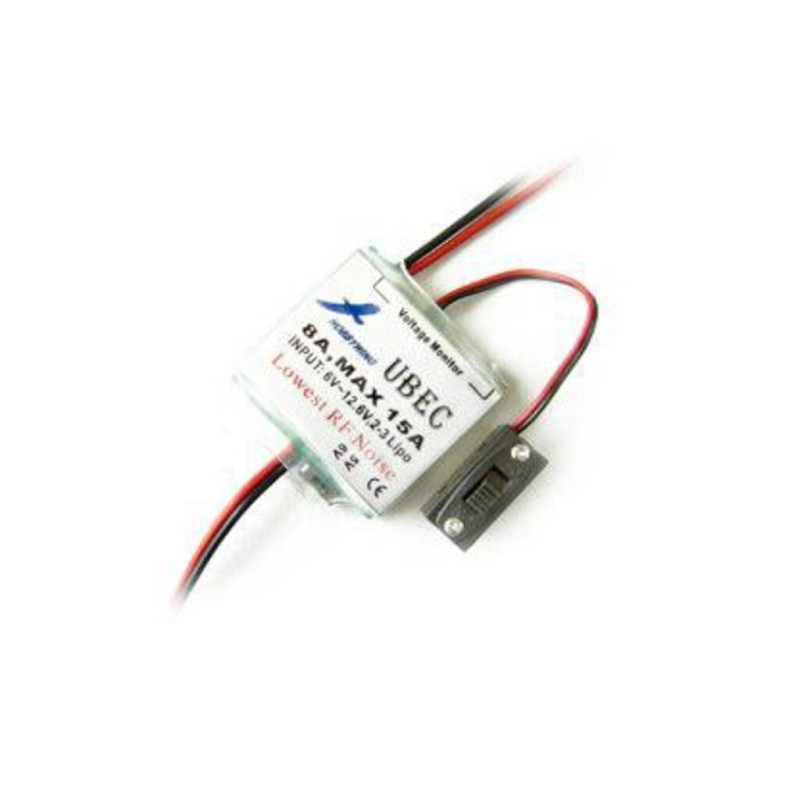

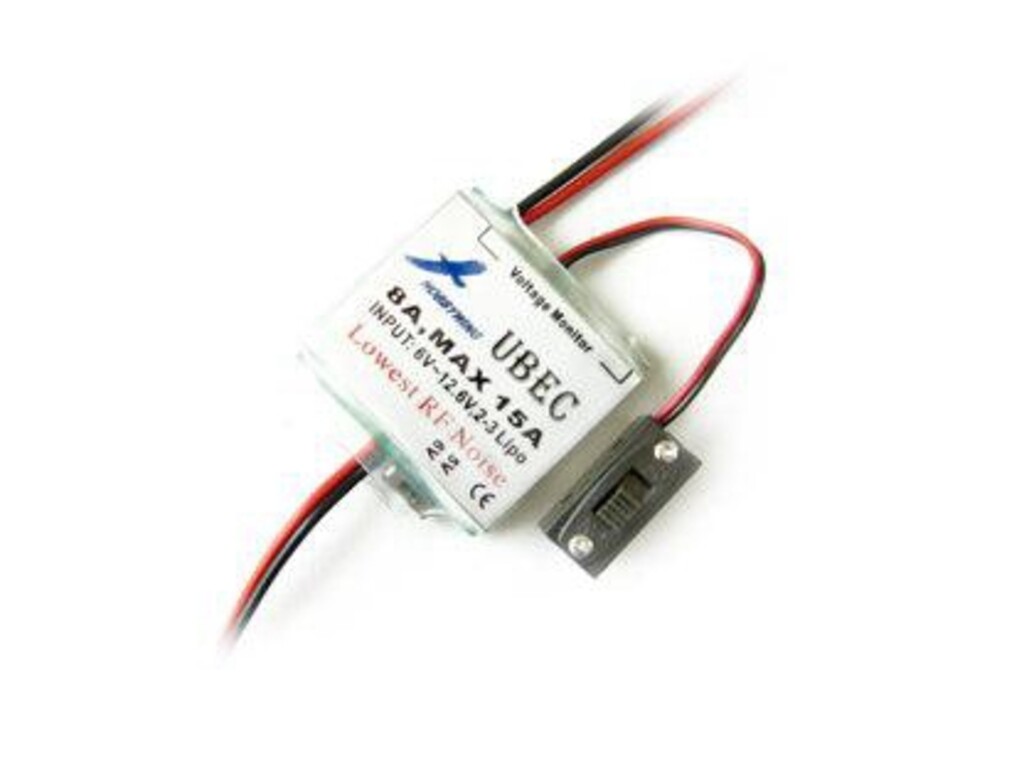

The 8A-UBEC is a switch-mode DC-DC regulator supplied with a 2-3 cells lithium battery pack and it outputs a consistent safe voltage for your receiver, gyro and servos. It is very suitable for RC helicopter (above 30 class) and big fixed-wing aircraft.

Compared with the linear mode UBEC, the overall efficiency of the switch-mode BEC is much higher, so it can extend the working time of the receiver battery pack, and because a switch mode UBEC can significantly reduce the heat emission, it can avoid the loss of control caused by the over-heat problem which is frequently happened with the linear mode UBEC.

1 Specification

1.1 Output Voltage: 5V or 6V (Changeable with an output-voltage select switch )

1.2 Continuous output current: 8 Amps

1.3 Burst output current: 15 Amps

1.4 Input: 6V-12.6V (2-3 cells lithium battery pack)

1.5 Quiescent current: 60mA

1.6 Size: 42mm*39mm*9mm (length*width*height)

1.7 Weight: 34g

2 Features

2.1 Designed with an advanced switch mode DC-DC regulator IC.

2.2 The output current is very large.

2.3 With the output short-circuit protection function.

2.4 A metal shield covers almost all the electronic components, and a specially made filter is attached with the output wires to significantly reduce the electromagnetic interference.

2.5 Automatically detects the number of the lithium battery pack (2 cells or 3 cells).

2.6 Shows the battery capacity with 4 indicators (LEDs).

2.7 Shows the working status with an indicator (LED), lights when the output is in normal range.

2.8 There are 2 output leads to reduce the resistance when connecting the UEBC to the receiver.
