DLE CANISTER MUFFLER 50/55CC

DLE CANISTER MUFFLER 50/55CC

Ref: 42888

Estoque: Disponível

R$ 849,42

Comprar

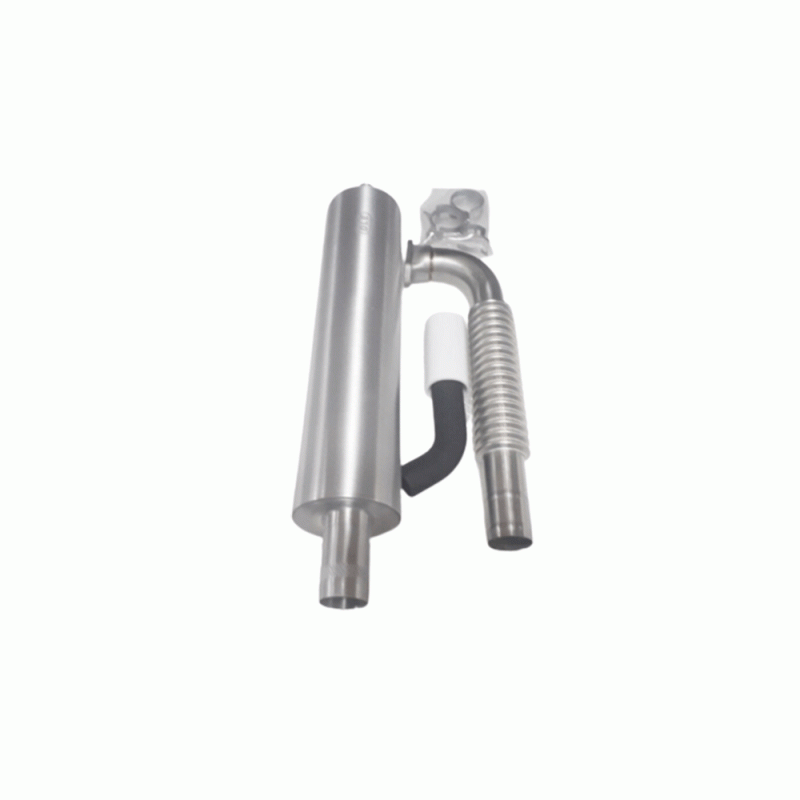

DL Engine Canister Muffler Sets

These Muffer can be assembled with DLE 55 and DLE 111 Engine.it can reduce Noise when you fly the airplane.The introduction as below,

Polished Aluminium Canister with Stainless Steel Flexible Header pipe and teflon couple with two sprin clumps .

Stainless Steel Flexi Header -

340mm from centre of exhaust flange to tip

Corrogated section 200mm long and 34mm Diameter

Tail Section 100mm long

25mm Diameter Outlet

Canister muffler

252 mm long not including pipe

65mm(or 60mm) Diameter Body (67mm at weld seam)

25mm Diameter Inlet pipe

16mm Outlet

You will need to buy two sets for twins like the the DLE111/DA100,

Canister can be used with other brand 25mm headers if needed to suit your install, instead of the supplied flexi header.

Also suits many other Chinese engines 40 - 60cc per cylinder with ~42mm bolt hole spacing on exhaust header such as MT50/57/CRRC etc.

Weight:

Canister: 250 gram

Flexi Header: 130 Gram

Both Clips: 15 Gram

Teflon Coupler: 25 Gram.

Total Weight: 420 Gram
