CARBURADOR GMS 25 ABC 253000

Ref: 4282
Estoque: Indisponível
R$ 248,82
Comprar

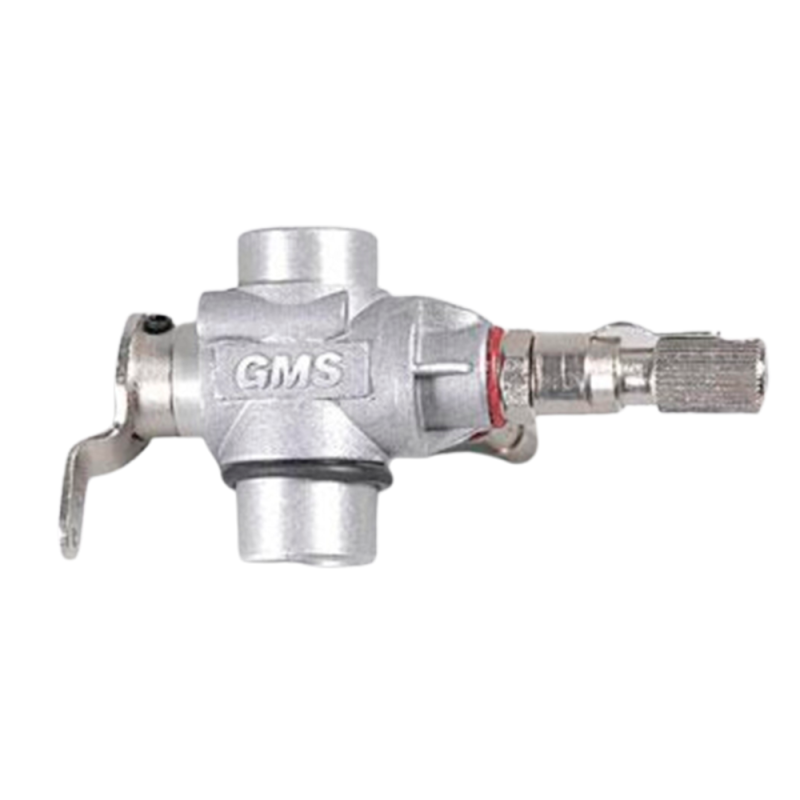

This is the Carb Assembly from GMS for the .25 ABC Front Needled engine.


FEATURES:

  • Aluminum body construction
  • Rotary type throttle
  • Steel throttle arm
  • Set screw at the end of needle valve to mount a scratch-built needle valve adjusting rod
  • Throttle stop screw with lock nut for easy idle adjustments
  • Low Speed adjustment via mixture control centered in the throttle arm


INCLUDES:

  • One assembled carb for the GMS .25 front needled engine


REQUIRES:

  • Assembly to engine


SPECS:

  • Height: 30.5mm (1.20")
  • Bottom Throat inner diameter: 8.2mm (.323")
  • Bottom Throat outter diameter: 13mm (.512")
  • Intake Port inner diameter: 7mm (.276")
  • Intake Port outer diameter: 13.3mm (.524")


COMMENTS:

  • If Carb Retainer Nut is needed, use GMEG2650 A .062" wire (not included) can be used to extend the needle valve by inserting the wire into the pre-drilled hole on the end of needle valve and tightening it in place with the supplied set screw.
