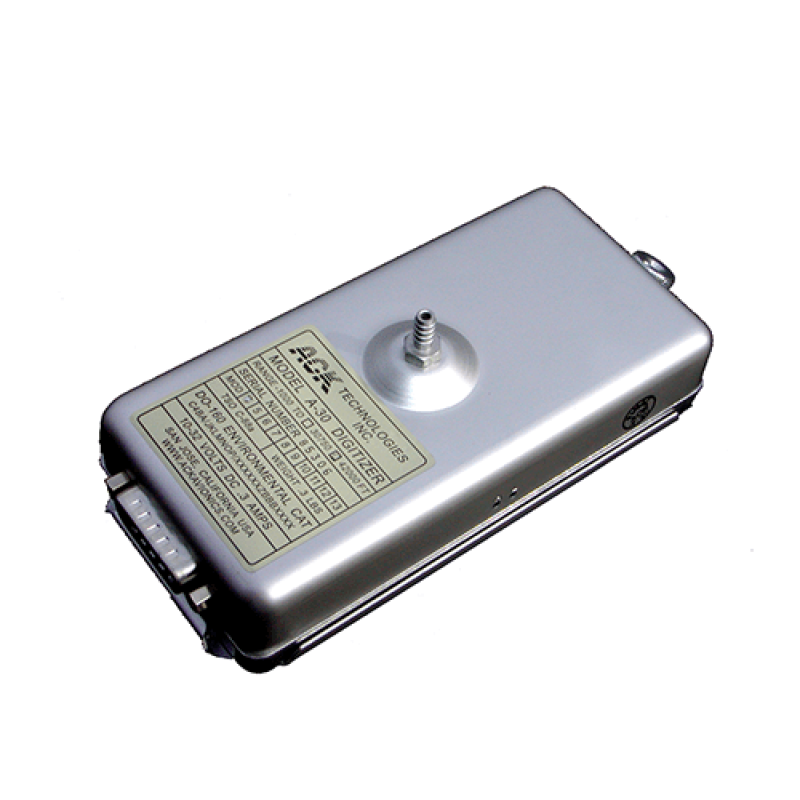

ACK ENCODER A-30.5 FAA TSO C-88A (MOD-5 / 950-30,750FT)

Ref: 427654

Estoque: Disponível

R$ 2.359,07

Comprar

Approvals: FAA TSO C-88a

Range: MOD 5 (950 to 30,750 feet) / MOD 9 (950 to 42,000 feet)

Accuracy: Typical +-20 feet / Maximum +- 50 feet

Size: L 6" W 2.65" Н 1.3

Weight 5.1 oz (144 grams)

Operating voltage: 10 to 32 VDC

Operating current: 160 mA typical

Operating temp: -4 to +131°F / -20 to +55°C

Warm-up time: 70°F ambient 60 seconds / 0°F ambient 210 seconds

Warm-up current draw: 14VDC 160 mA / 28VDC 220 mA

Altitude resolution: Gray code (parallel) output 100ft /RS 232 10ft or 100ft

DO-160B ENVIRONMENTAL CATEGORIES

C4BA/JKLMNOPS/XXXXXXZZBBBXXXX

DO-178B NOT APPLICABLE

CONTAINS NO MICROPROCESSOR

The cable assembly supplied with the digitizer is tested and complies with all requirements of FAR 23.1359 and FAR 23.853 and is suitable for installation in any part 23 aircraft.

A-30 Encoder Technical Data Link
