HELICOPTERO ALIGN T-REX 300X SUPER COMBO RTF (EUROPLUG) RH30E03XT

Ref: 425698
Estoque: Disponível
R$ 4.710,42
Comprar

Description

ALIGN T-Rex 300X new concept, small but perfect. It adopts DFC rotor head, low CG and low wind resistance which provide direct flight responses. The main carbon fiber frame is made of composite material and with reinforcement plate and reinforcement assembly which effectively improves structural intensity and torsional strength. The narrow body design makes the mechanical structure much stronger. The battery slider and the top-mounted engine design with an anodized bright red color give this model a pleasant texture. The aluminum alloy tail pipe is thickened for better resistance to twisting and increase the duration of the tail support rod. The progressive light landing pad makes this model the leader in this class. The canopy painted in fiberglass is light and with low aerodynamic resistance.

The high standard torque and the high efficiency 300MX 3700KV / 2216 brushless motor not only contribute to a significant increase in power, but the high efficiency cooling system allows a colder operating temperature during and after flights compared to the engine of the previous generation. Allow to provide constant power and maintain a stable RPM in 3D non-stop flight with perfect performance. It also pairs with the DS450 and DS455 HV digital servos, supporting 8.4V output, fast response and high torque. The new 25A brushless speed controller supports an adjustable BEC voltage of 5 ~ 8.4 V.

T-Rex 300X is small but all in one so that it can work well not only in indoor shows but also in 3D outdoor flights. This model offers you at the best price the opportunity to have fun flying at any time.

Standard Equipment:

  • T-REX 300X DOMINATOR Kits Set x 1 set
  • MiniGRS Flybarless System x 1 set
  • 230 Carbon Fiber Blades x 1 set
  • 50 Tail Blade x 1 set
  • RCE-BL25A 25 Brushless ESC x 1 set
  • 300MX Brushless Motor(3700KV 2216) x 1
  • DS450 Digital servo x 3
  • DS455 Digital servo x 1
  • A10 Radio Control System Combo x 1 set
  • MiniA.BUS Receiver x 1
  • Balance Charger RCC-3SX x 1 set
  • 3S1P 11.1V 1300mAh 30C x 1
T-REX 300X RTF Specifications:
  • Length: 476mm
  • Height: 158mm
  • Width: 88mm
  • Main Blade Length: 230mm
  • Main Rotor Diameter: 525mm
  • Tail Rotor Diameter: 143mm
  • Motor Pinion Gear: 14T
  • Main Drive Gear: 115T
  • Main Drive Pulley: 40T
  • Tail Drive Gear: 13T
  • Drive Gear Ratio: 8.21:1:3.08
  • Weight(witout battery): 418g
Equipment Required for Assembly:

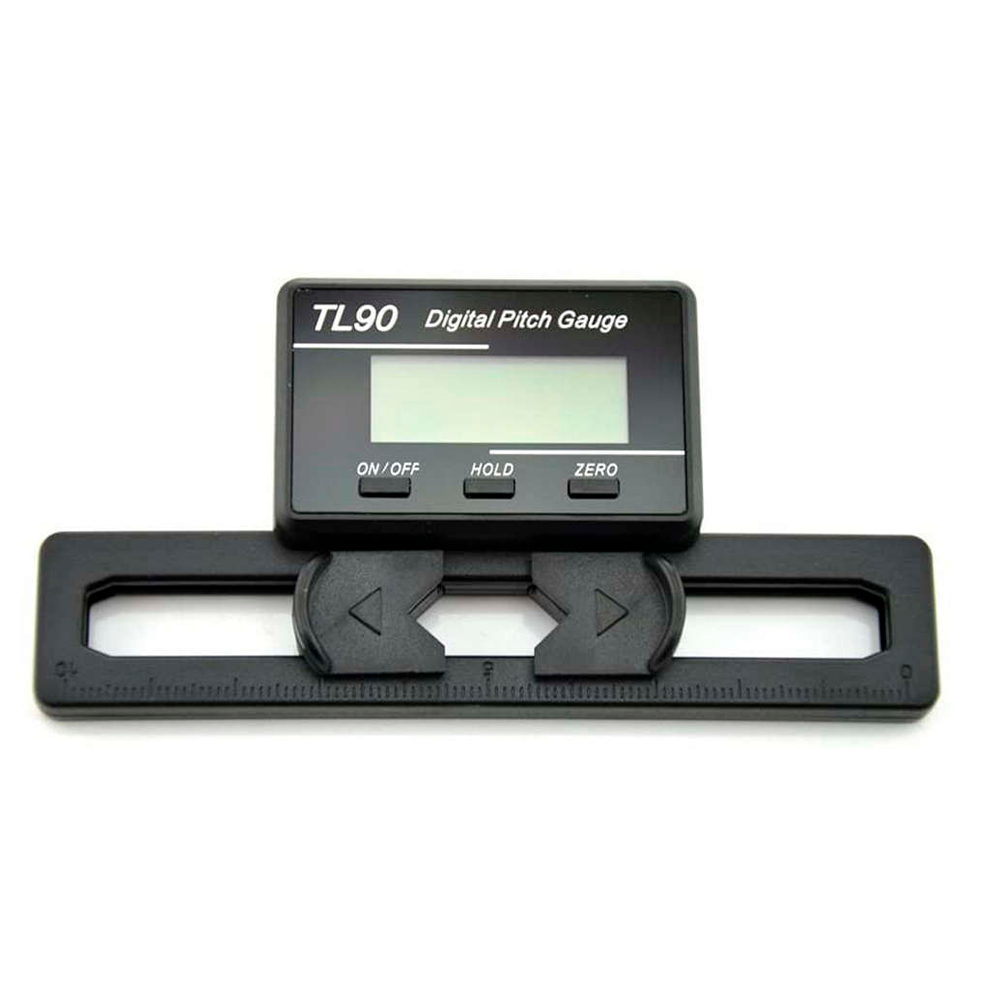

  • Dial Pitch Gauge or Digital Pitch Gauge
  • Swashplate Leveler

A10 Specifications:

  • Channel: 10-Channel
  • Available Models: helicopter airplane multicopter
  • Frequency range: 2.408 ~ 2.475 GHz
  • Power: no higher than 20dBm(For EU)
  • System Mode: 2.4G system AFHDS 2A
  • Suitable Voltage Range: 4.0 ~ 6.0V DC
  • Receiving Distance: the open ground no interference < 1000M
  • Low Voltate Warning: Lower than 4.2V
  • Weight: 485g (excluded battery)
  • Size: 275x187x102mm

MiniA.BUS Receiver Specifications:

  • Channel: 14 channels
  • RX Sensitivity: -105dBm
  • RF Range: 2.4055 ~ 2.475 GHz
  • System Mode: 2.4G system AFHDS 2A
  • Power: 4.0 ~ 8.4V DC
  • Transmit Distance: In open space without interference <150M


MiniGRS Flybarless System Specifications:

  • Operating voltage range: DC 3.5~8.4V
  • Operating current consumption: <100mA @ 4.8V
  • Rotational detection rate: ±300°per sec
  • Rudder yaw detection rate: ±600°per sec
  • Sensor resolution: 12 BIT
  • Swashplate Support: 120° CCPM Swashplate
  • Mode Support: T-REX250, T-REX300, T-REX450, T-REX470, T-REX500
  • Receiver Support: ALIGN A10(A.BUS), Futaba S-FHSS, DSM2/DSMX
  • Operating temperature: -20℃ ~ 65℃
  • Operating humidity: 0% ~ 95%
  • Comply with RoHS
  • Size: 37.6x22.4x13mm

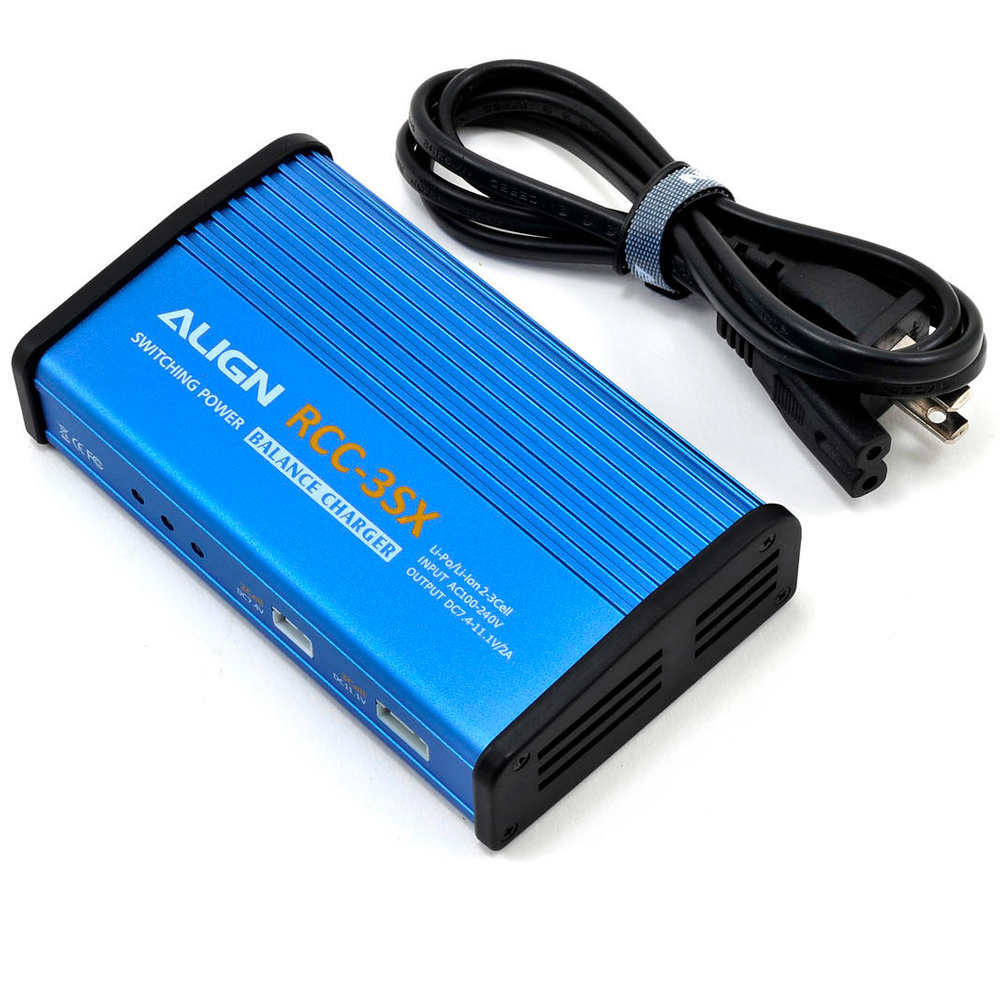

Balance Charger RCC-3SX Specification:

  • Input Voltage: AC 100V~240V(50/60Hz)
  • Output Voltage: 2cell DC 7.4V / 3cell DC 11.1V
  • Supported Battery Type: Li-polymer / Li-ion
  • Charging Method: CC/CV
  • Charging Current: 2A
  • Size: 123x74.3x32mm
  • Weight: 260g

Battery Specifications:

  • Output: 11.1V 1300mAh 14.4Wh(3S1P)
  • Supports 5C charging
  • Dimension: 74x36.5x21mm
  • Weight: 115g
  • 14AWG heat-resistant silicone rubber wire. Heat resistance: 200 ° C /
  • Current withstand: 50A
