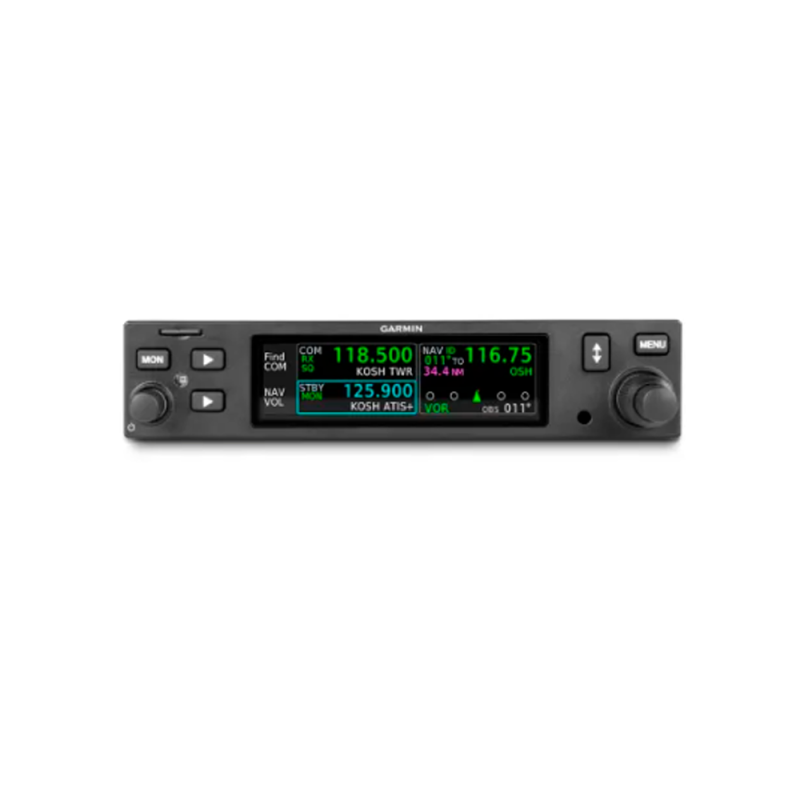

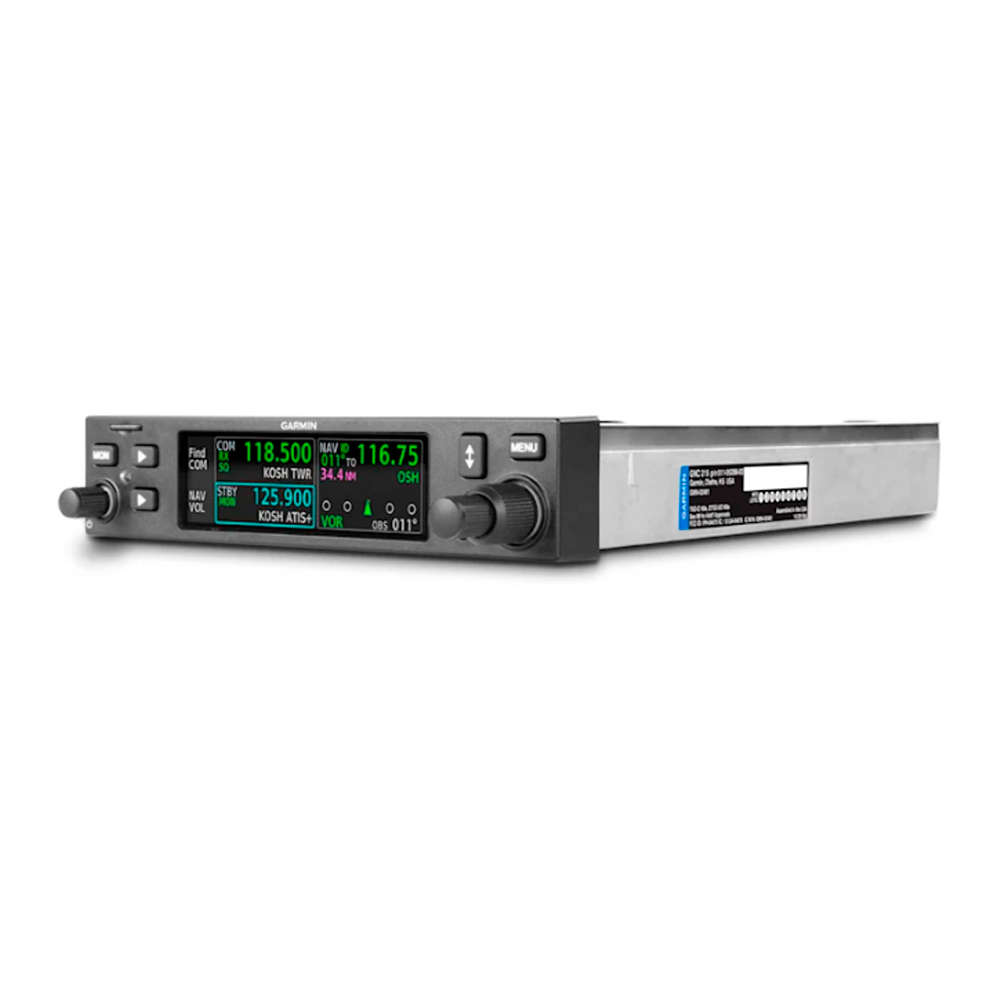

GARMIN GNC 215 VHF NAV COM RADIO 10W 010-02481-01 (X)

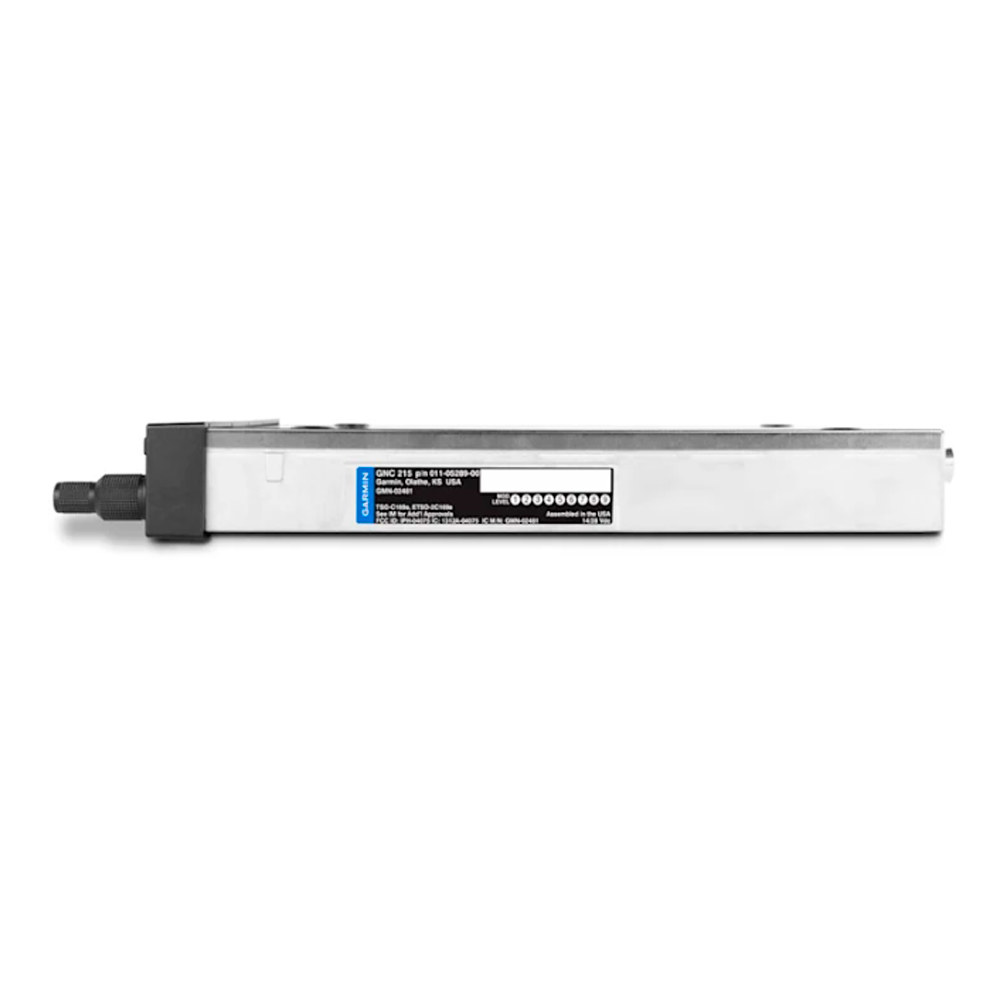

SLIM 1.35” BEZEL HEIGHT

Replace similar-sized legacy radios, and save valuable panel space in tighter installations.

INTUITIVE USER INTERFACE

Interact with familiar controls found on other Garmin avionics, including concentric knobs, 5 back-lit keys and a dedicated volume/power knob.

Features:

VHF NAVIGATION

Get full VHF navigation capabilities, including VOR/ILS with localizer and glideslope.

NAVAID LOOKUP
Enter a navaid, and the GNC 215 radio will find the frequency from its built-in worldwide database then add it to the standby position.

AUTOMATIC STATION ID
Automatically decode a station’s Morse code to provide positive visual identification

STANDBY NAV MONITORING
Monitor standby VOR frequency, and display the received radial. Quickly flip-flop active and standby NAV frequencies via a dedicated button.

CDI DISPLAY
Enter an OBS setting, and view a supplemental CDI display for the VOR or localizer. Plus, view distance to a VOR navaid when installed with your compatible GPS source, such as our GTN™ or GNS™ navigator series avionics.

INTEGRATE YOUR PANEL

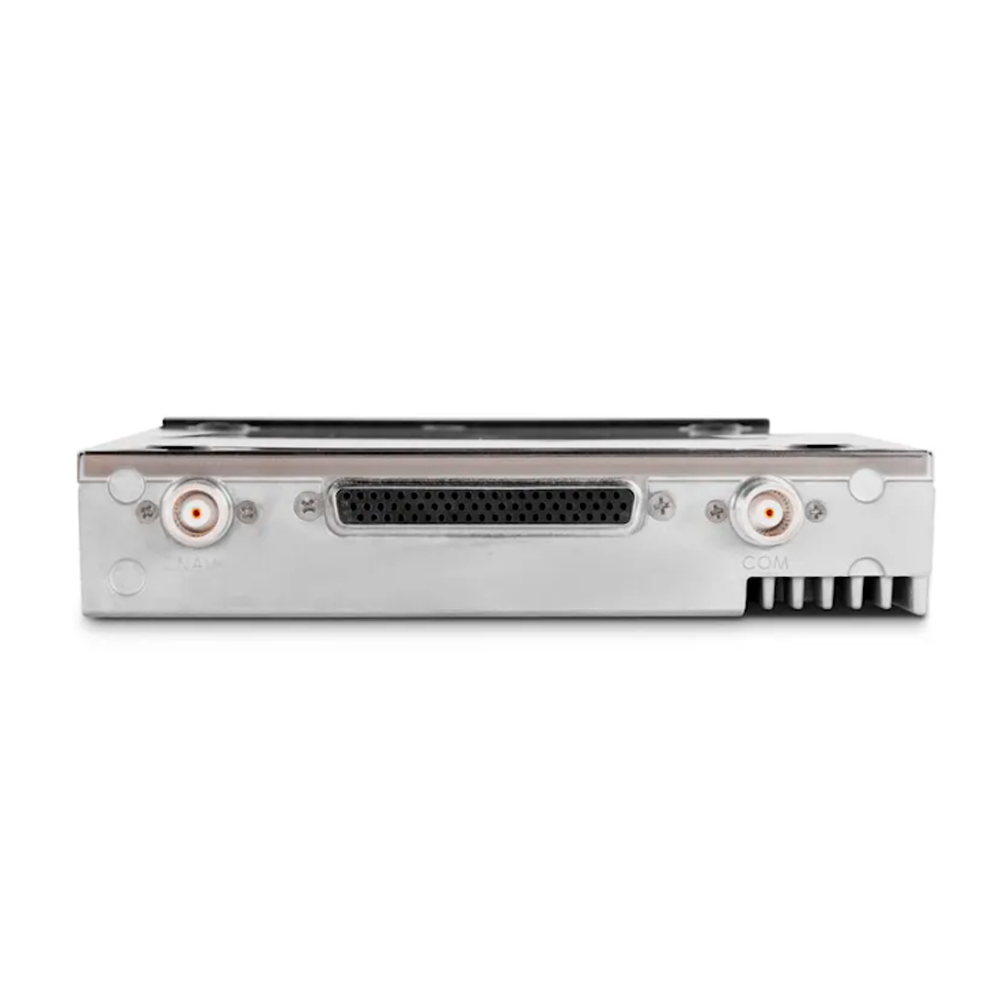

GNC 215 interfaces with most CDI, HSI and autopilot systems as well as Garmin primary flight displays.

Communicate with confidence.

VHF COMM TRANSCEIVER

The 2,280-channel capable VHF COMM radio offers standard 10 watts (or optional 16 watts with enablement) of transmit power plus pilot-selectable 25 kHz or 8.33 kHz channel spacing and automatic or manual squelch. Swap your active and standby frequencies with a single touch of a button.

FIND A FREQUENCY
Enter an airport identifier, and let the GNC 215 radio look up frequencies for that location (tower, ground, ATIS, clearance delivery, etc.) from its worldwide database. Then send the selected frequency to the standby position.

FREQUENCY ID
Pair with your compatible GPS source to enable frequency ID and show your tuned frequency’s identifier and type, including tower, ATIS, center and more. So you always know who you’re talking to.

STANDBY COMM MONITORING
Listen to a standby frequency, such as ATIS, without leaving your active channel.

INSTANT RECALL
With frequency memory and recall, you can quickly tune your most frequently or recently used frequencies. Plus, holding down the volume knob will dial up the 121.5 emergency frequency.

BUILT-IN TIMER
Use the built-in timer to assist with approaches, holds and other assigned maneuvers — with the option to count up or count down.

NVG COMPATIBLE
For demanding night missions, GNC 215 is available with an optional NVIS enablement.

REMOTE TUNING
Pair the GNC 215 radio with your G3X Touch™ flight display, and remotely tune your radio via your flight display touchscreen.

Specifications from GNC® 215 NAV/COMM Radio
