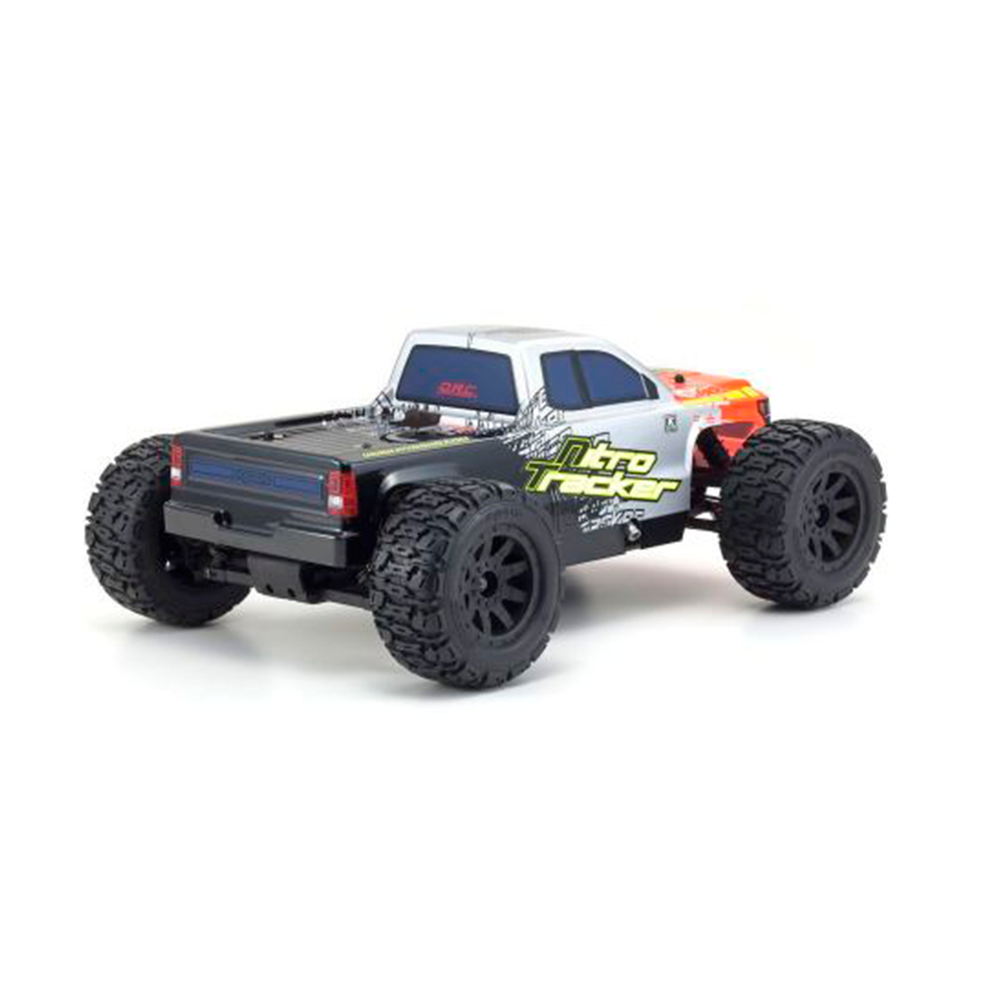

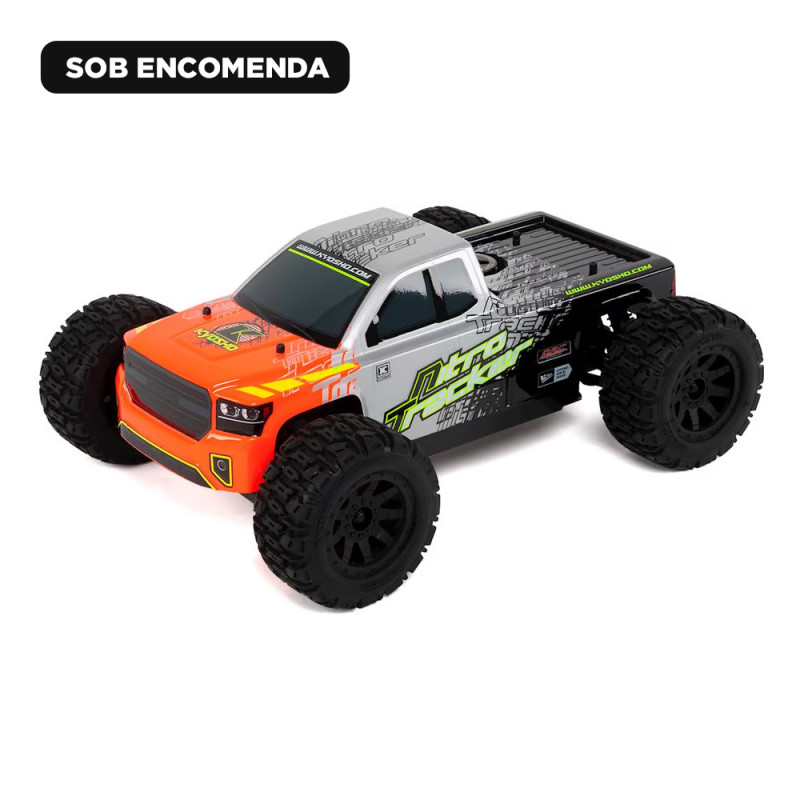

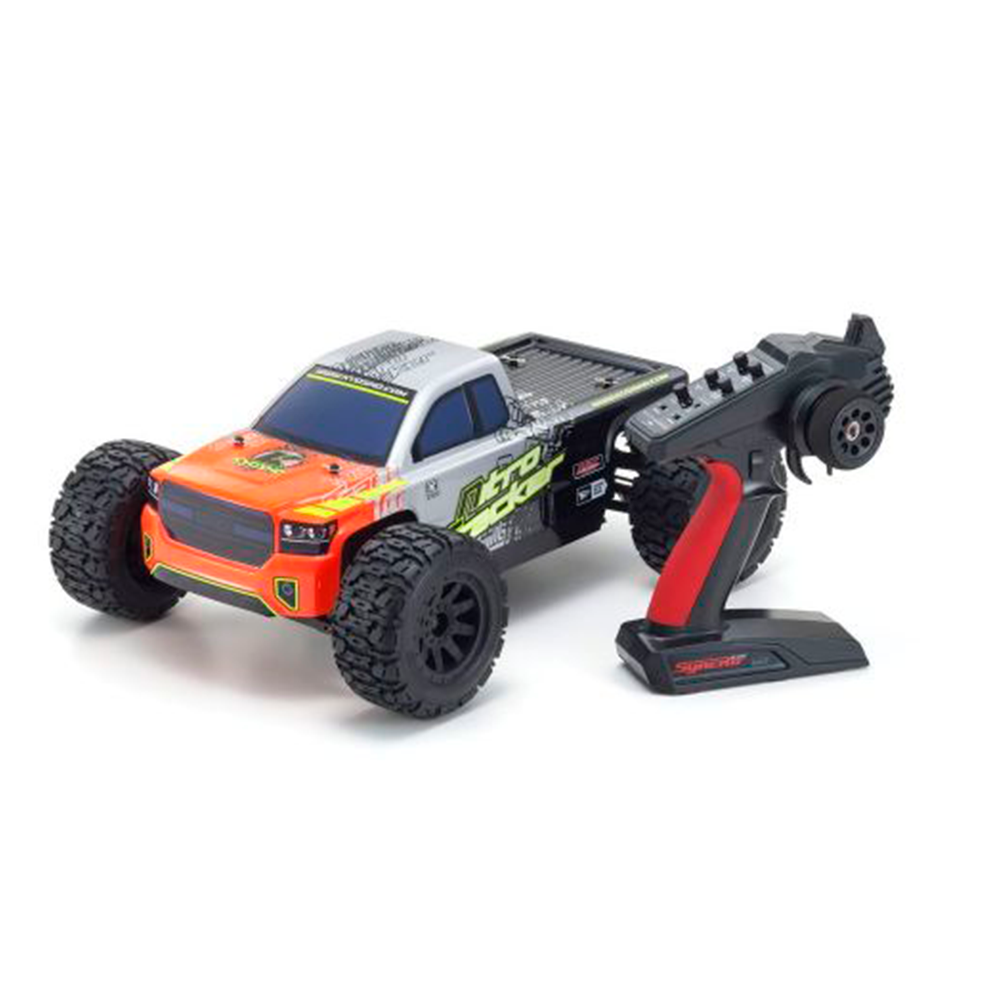

CARRO KYOSHO 1/10 NITRO TRACKER QRC .15 4WD READYSET W/KT-231P+ 33101

With the rock-solid running stability of a big tire machine with wide tread, the nearly square dimensions of the Nitro Tracker produces incredible driving capability. Take this 1/10 scale off-road truck anywhere you like to enjoy the advanced high-performance mechanics of this real engine-powered R/C car, such as the QRC (Quick Reverse Clutch) that enables forward, neutral and reverse operation. The 3rd channel on the KT-231P+ transmitter operates a servo to shift the gears on the QRC to change the drive gears between Forward-Neutral-Reverse, just like a real automobile. The pre-installed powerful KE15SP engine combines with the maintenance-friendly radio box and fuel pump that sends fuel efficiently to the carburetor from the fuel tank and engine-stop lever that safely brings the engine to a stop. With this Readyset, all you need is fuel, engine starting tools, and batteries to experience the dynamic realistic performance of the awesome Nitro Tracker.

Specifications:

• Length　418.5mm
• Width　321mm
• Height　194mm
• Weight 2,650g(approx.)
• Wheelbase　298.5mm
• Tread （F/R）　265mm
• Tires (F/R interchangeable)　φ120×56mm
• Gear Ratio　Forward (1st) 20.9:1 / (2nd) 13.9:1
• Reverse (1st) 24.1:1 / (2nd) 16.0:1
• Engine　KE15SP with recoil

Features:

• Readyset features pre-assembled 4WD chassis with shaft-driven 4 bevel gear diffs on front and rear and finished body set.
• 3rd channel operates the QRC system (Quick Reverse Clutch) to control forward, neutral and reverse.
• 2-speed transmission with adjustable shift timing makes maximum use of the KE15SP engine’s power band.
• One-piece stiffener and radio box increases chassis rigidity and provides dustproof cover for receiver and battery.
• Includes waterproof KS4031-06W servos for steering, throttle and shift change.
• Double wishbone suspension with adjustable camber and toe angle.
• Body post height can be adjusted in 2mm increments..

In the box:

• Completed chassis with R/C radio installed
• Transmitter (KT-231P +)
• Binding stick
• Hex wrench(1.5mm / 2mm / 2.5mm)
• Cross wrench (large)
• Instruction manual
• 2 nylon straps (for fixing air cleaner)

Required for Operation:

• Glow fuel
• 8 x AA batteries for transmitters and receivers
• Starting tool (fuel pump, plug heater)
