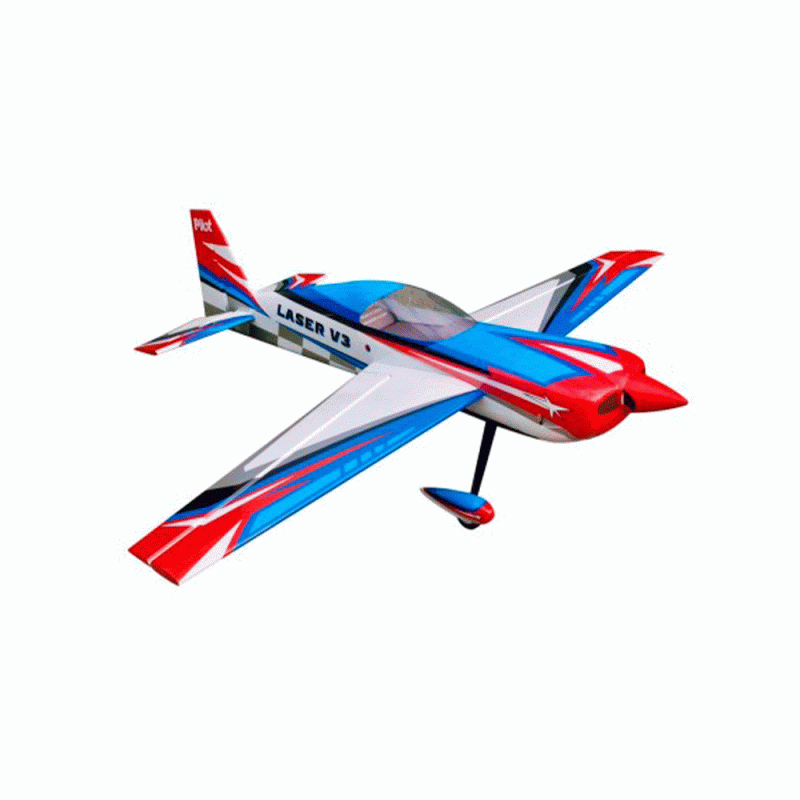

AVIAO PILOT RC LASER V3 103" (2.61M) 09 RYU

Description

The Laser has been fully designed from the ground up for out and out performance, keeping in line with current demand for faster, more aggressive and more agile models, while still keeping the well know great flying characteristics Pilot-RC models are known for.

Pilot-RC are non-stop development get feedback and listen from everyone both high level pilot and normal level pilot, for balance charactoristic of performance on this airframe, we upgrade everything even better aerodynamic shape of plane and new canopy look more modern shape as I say it is V3 and new wing design for roll more smooth more precise and still agile. also upgrade some structure for more lighter and improve quick release wing,canopy,and stabilizer for more convenient and reliable.

SPECIFICATIONS:

FEATURES:

• NEW! Full Carbon reinforced fuselage and wing using carbon laminated wood.
• Genuine German Oracover (Ultracote) covering
• Highly prefabricated, experienced builders can have air ready in under a day
• Pre-installed hinges (glued and pinned)
• Internally mounted cowling – so no external screws exposed
• Includes cooling baffles
• Easy canister installation due to open construction
• Removable rudder (as well as removable wings and stabs)
• Laser engraved motor mounting position
• Push-Pull system for Rudder servos

INCLUDED HARDWARE:

• Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
• Pre-installed hinges and pre-mounted canopy
• Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
• Wheels, axels and wheel pants
• Pre-prepared pull-pull wires and pushrods with ball links
• Matching carbon spinner, 5?

REQUIRED HARDWARE:

• Motor: 100-130cc or equivalent electric
• Servos: 7-8 high torque (minimum 20kg) plus throttle // Uses x2 per aileron, x1 per elevator and x1 or x2 on rudder
• Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

CENTER OF GRAVITY:

• 194mm - Measured back from leading edge of the wing at the fuselage.
• You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
