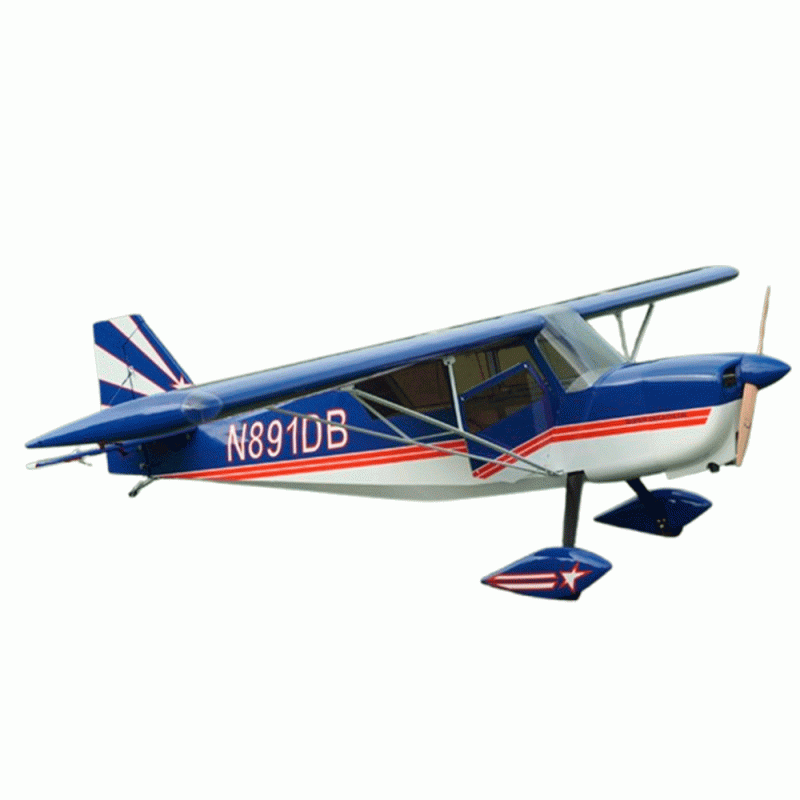

AVIAO PILOT RC DECATHLON 180" (4.58M) DE-04

SPECIFICATIONS:

Model: Decathlon – 47%
Wingspan: 180? (4.580mm)
Length: 125? (3.170mm)
Wing area: 5,283 “² (34,800 cm²)
Weight: 63.00 lbs (28.95kg)

FEATURES:

• Strong yet light weight design, good for acrobatic flying and can even hover!
• Genuine German Oracover (Ultracote) covering
• Fast to put together at the field
• Highly prefabricated, experienced builders can have air ready in under a day
• Pre-installed hinges (glued and pinned)
• Internally mounted cowling – so no external screws exposed
• Removable rudder (as well as removable wings and stabs)
• Laser engraved motor mounting position and multiple servo locations available for Rudder setup (pull pull or direct push pull)
• Optional LED Light Set

INCLUDED HARDWARE:

• Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
• Pre-installed hinges and pre-mounted canopy
• Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
• Wheels, axels and wheel pants
• Pre-preared pull-pull wires and pushrods with ball links
• Matching carbon spinner, 6?

REQUIRED HARDWARE:

• Motor: 150-220cc or equivalent electric
• Servos: 16 high torque (minimum 20kg) plus throttle // Uses x3 per aileron, x1 per flap, x2 per elevator and x4 on rudder
• Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.
