TRITON 2EQ AC/DC CHARGER BALANC.GPMM3156

TRITON 2EQ AC/DC CHARGER BALANC.GPMM3156

Ref: 41324

Estoque: Disponível

R$ 857,91

Comprar

Setting new standards in charger performance!

Everything that makes the Triton2 great is on the Triton2 EQ -- and then some! In addition to 10 battery memories and the ability to monitor heat-sensitive batteries with the optional Thermal Probe (GPMM3151), the Triton2 EQ features a built-in LiPo balancer, the convenience of a built-in AC power supply, compatibility with the latest battery technologies such as LiFe (A123) cells, an adjustable-angle LCD and an increased charge current of up to 8 amps!

Features

For LiPo, Li-Ion, LiFe (A123) NiCd, NiMH, and Pb batteries

Includes built-in balancer for up to 6S packs

Fast charge up to 8 amps

Built-in balancing for 1-6S LiPo, Li-Ion, or LiFe (A123) cells (ElectriFly and FlightPower adapters included)

0.1-8.0A adjustable charge current

Precision peak detection with adjustable sensitivity for NiCd and NiMH batts

Constant current / constant voltage charge method for Pb and lithiums

Temperature sensing capabilities (GPMM3151 Thermal Probe available separately)

Top-off charge feature fully charges NiMHs without overheating

0.1-3.0A adjustable discharge current

Adjustable discharge cutoff voltages for NiCd/MH, pre-set voltages for Pb and lithiums

Perform 1 to 10 cycles (NiCd/MH only), and recall all data

Configure up to 10 batteries in memory for instant, easy recall and charger set-up

Banana plugs on DC input, and includes mating alligator clips

Displays input and output volts, peak volts, average discharge volts, charge and discharge capacity, currents and time, data for 10 cycles, errors, and individual lithium cell voltages

Audible sound cues aid in programming and notification of function changes.

Warning messages for improper input voltage, poor connections, unsuitable battery condition, reverse polarity on output

Safety features include cool-off time delay, maximum NiMH charge input, fast charge safety timer, current overload and reverse polarity protection

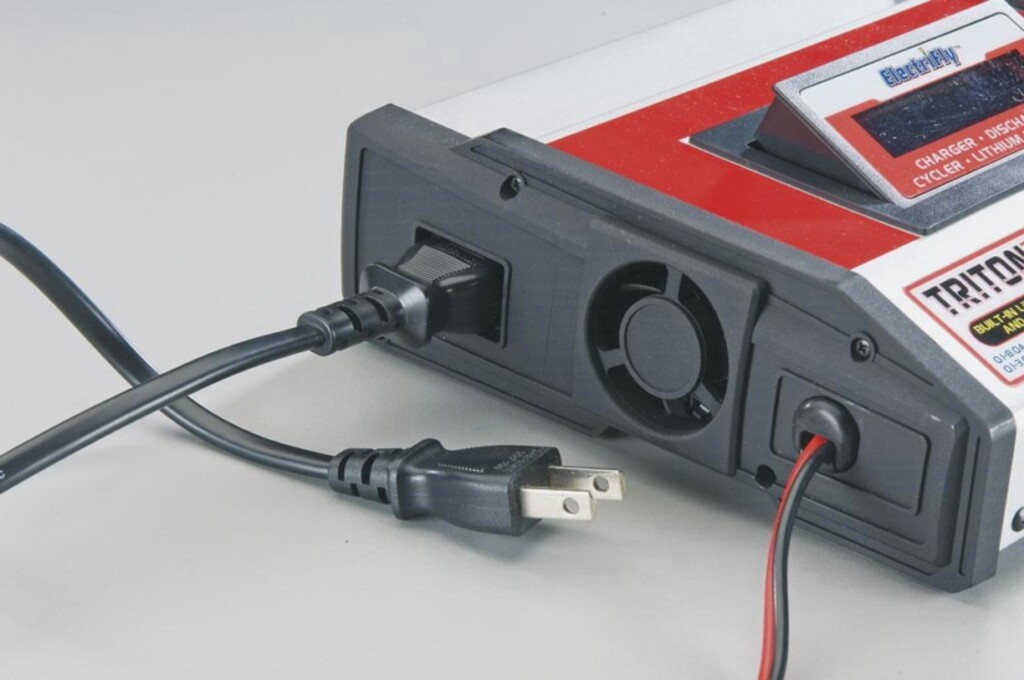

DC input makes the Triton2 EQ portable; a compact, built-in switching AC power supply makes it handy for indoor charging as well.

Balancing capability for up to 6S lithium packs is built in, so it's equally useful for the smallest indoor fliers as well as big outdoor aircraft.

Not only is the LCD reversed with a backlight, it also features a 0-45 degree adjustable view angle for easy reading.

Stock number: GPMM3156

Specs:

AC input voltage: 110V 60Hz -- 240V 50Hz

DC input: 11-15.0V, banana plugs with mating gator clips

Number of outputs: one

Battery types, # cells:

1-24 NiCd, NiMH (1.2-28.0V)
1-6 LiPo, Li-Ion, LiFe (3.3, 3.6 or 3.7V cells)
6, 12, 24V Pb (2V per cell)

Fast charge current:

0.1-8.0A linear NiCd, NiMH, auto mode
0.1-8.0A for lithiums and Pb (120W max DC, 100W max AC)

Fast charge termination:

peak detection for NiCd, NiMH
cc/cv for Pb and lithiums
optional thermal cutoff for all battery types

Fast charge safety timer:

0-990 minutes

Discharge current: 0.1-3.0A

Discharge cutoff voltage:

0.5-1.2V per cell NiCd/NiMH
2.8V per cell LiPo/Li-Ion
2.5V per cell LiFe
1.8V per cell Pb

Battery memories: ten

Programming controls: dial, 2 pushbuttons

Display type: 2x16 reverse LCD w/backlight and adjustable angle

Audible indicators: 10 melodies, on/off

Case material: aluminum and ABS plastic

Thermal cutoff: 50-150°F (10-65°C)**

Safety devices: solid-state overload

Cooling fan: built-in

Case size: 7.2 x 7.0 x 2.4 in (184 x 178 x 62 mm)

Weight: 39.4 oz. (1116g, w/o AC power cord)

NiCd/NiMH Specs

Trickle current: 0-300mA

Peak sensitivity: 5-20mV NiCd/3-15mV NiMH

Peak delay at start: 0-60 minutes

Cycle count: 1-10 cycles

Cycle delay: 1-60 minutes

Maximum charge cap: 0-9900mAh

NiMH top off charge: 0-1000mA

Lithium Specs

Balancing accuracy: 5mV per cell

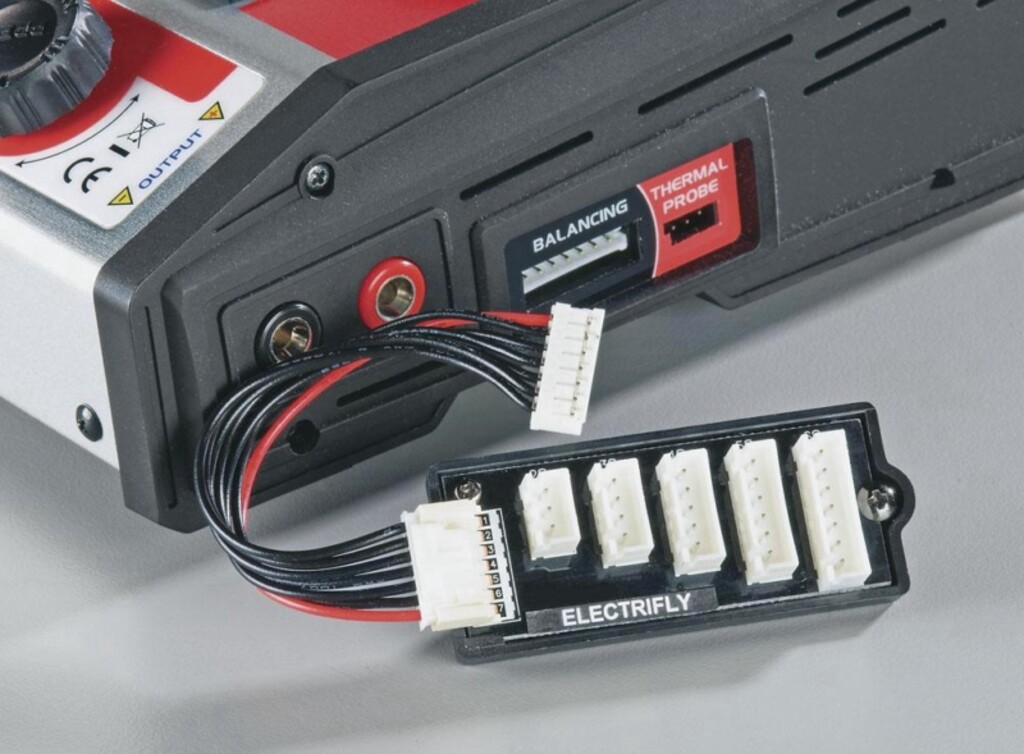

Balancing connector: FlightPower and ElectriFly adapters included

Maximum node current: 300mA

**GPMM3151 Triton Thermal Probe sold separately

* requires optional Thermal Probe (GPMM3151)

AMA Safety Recommendation

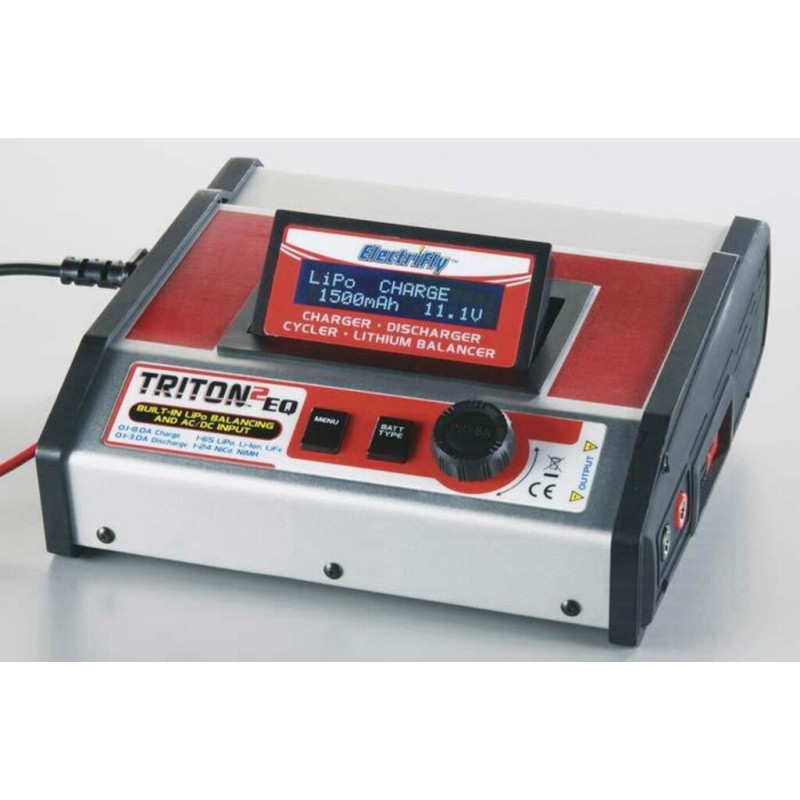

This is the ElectriFly AC/DC Triton2 EQ Computerized Charger, Discharger, Cycler and Balancer.

**Primary differences between the TritonEQ and the Triton2 EQ are as follows;** TritonEQ Triton2 EQ Handles 1-14 NiCd & NiMH cells 1-24 NiCd & NiMH cells 1-6 LiPo/LiIon 1-6 LiPo/LiIon 1-6 (2-12V)Pb 3-12 (6-24V)Pb Fast Charge Current: 0.1-5.0A 0.1-8.0A Linear 63W max DC, 50W max AC 120W max DC, 100W max AC Battery Memories: 1 Battery Memories: 10 Cycle Count (NiCd, NiMH only): 1-5 cycles 1-10 cycles No thermal probe port Thermal probe port

***Upgraded features over the ElectriFly Triton Jr. include;*** Lightweight built-in switching AC power supply, plus DC input capabilities New reversed character LCD with backlight and 0-45° adjustable view angle Built-in balancing for 1-6S LiPo, Li-Ion or LiFe (A123) cells with FlightPower and ElectriFly adapters Up to 8.0A charge current
