MOTOR DL ENGINE 35HD GAS UAV(DRONE) DLE35HD

MOTOR DL ENGINE 35HD GAS UAV(DRONE) DLE35HD

MOTOR DL ENGINE 35HD GAS UAV(DRONE) DLE35HD

MOTOR DL ENGINE 35HD GAS UAV(DRONE) DLE35HD

MOTOR DL ENGINE 35HD GAS UAV(DRONE) DLE35HD

MOTOR DL ENGINE 35HD GAS UAV(DRONE) DLE35HD

MOTOR DL ENGINE 35HD GAS UAV(DRONE) DLE35HD

MOTOR DL ENGINE 35HD GAS UAV(DRONE) DLE35HD

Ref: 405669

Estoque: Disponível

R$ 15.308,92

Comprar

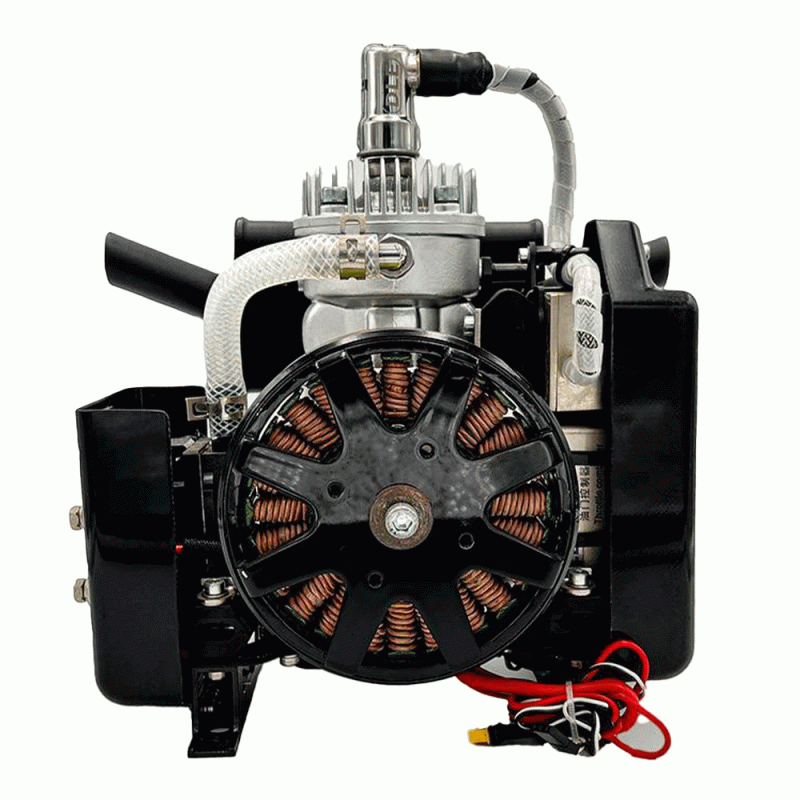

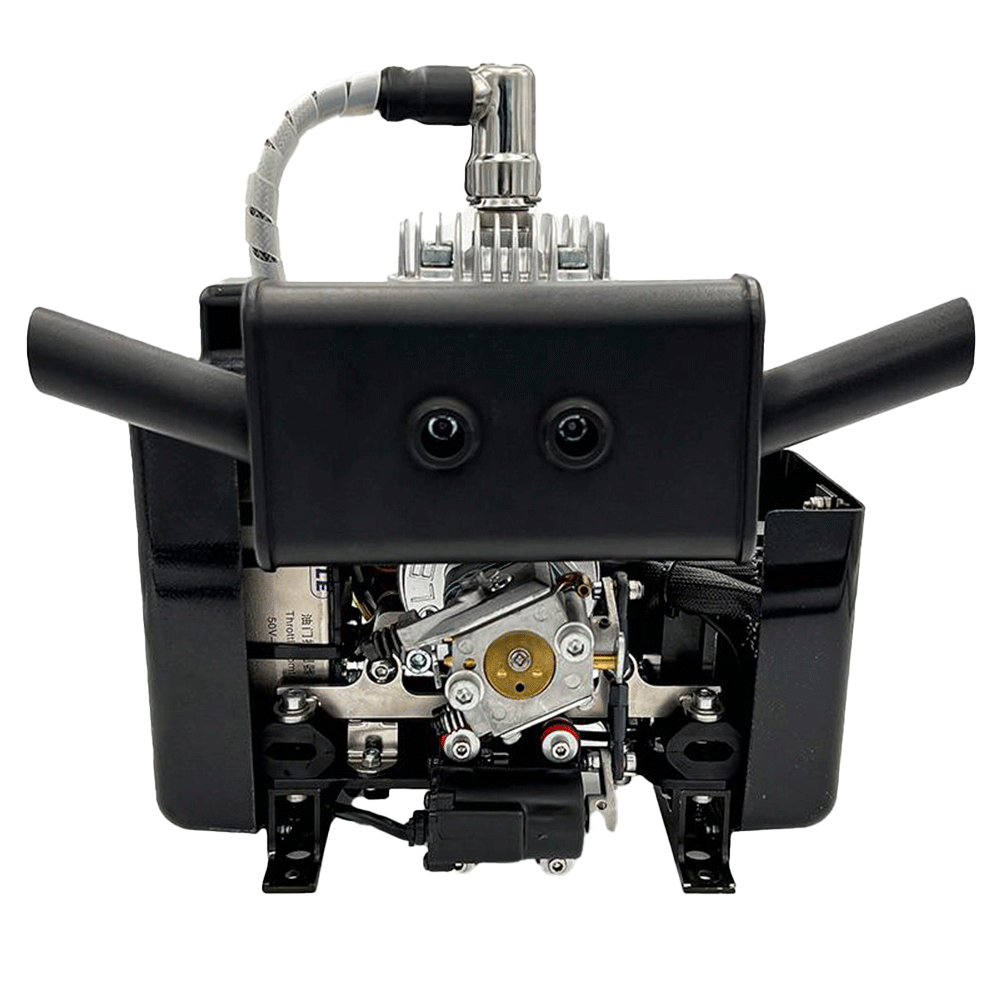

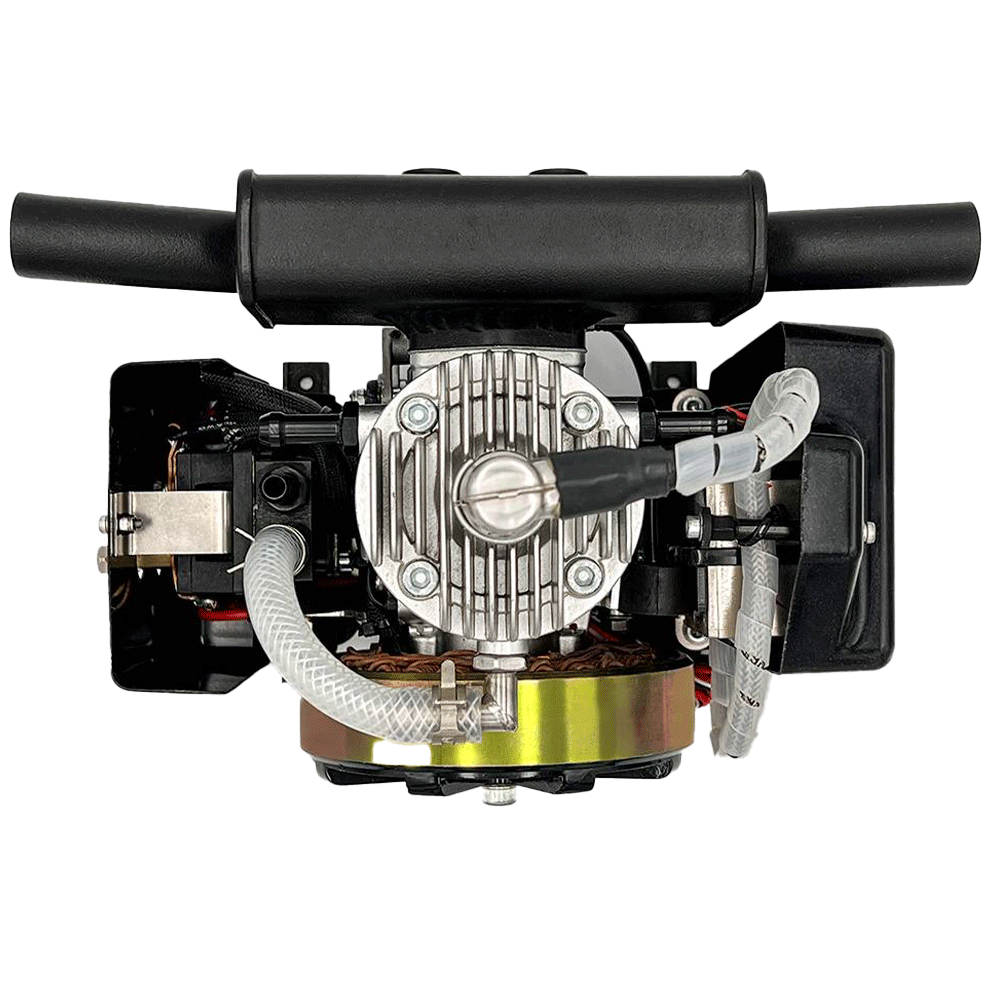

The DLE35HD hybrid engine, which was launched in April 2022, is a single cylinder two-stroke water-cooled piston engine. The efficient water-cooled cooling mode provides a more stable working mode for the engine.The engine is designed to provide power for aircraft. This power package is an independent and complete closed-loop system. It has nothing to do with the use and adjustment of remote control and flight control.

Generator parameters:

Three phase permanent magnet generator

Voltage: ac50v to dc50v

Frequency: non constant frequency type, which changes with the engine speed

Engine parameters:

Single cylinder water cooling

Displacement : 35cm3

Cylinder bore × trip：38.5mm×30mm

Power: 3.5hp/8500 RPM power: 2.5kW (0 altitude)

Idle speed: 5000-6000 rpm

Engine weight: 3.3kg

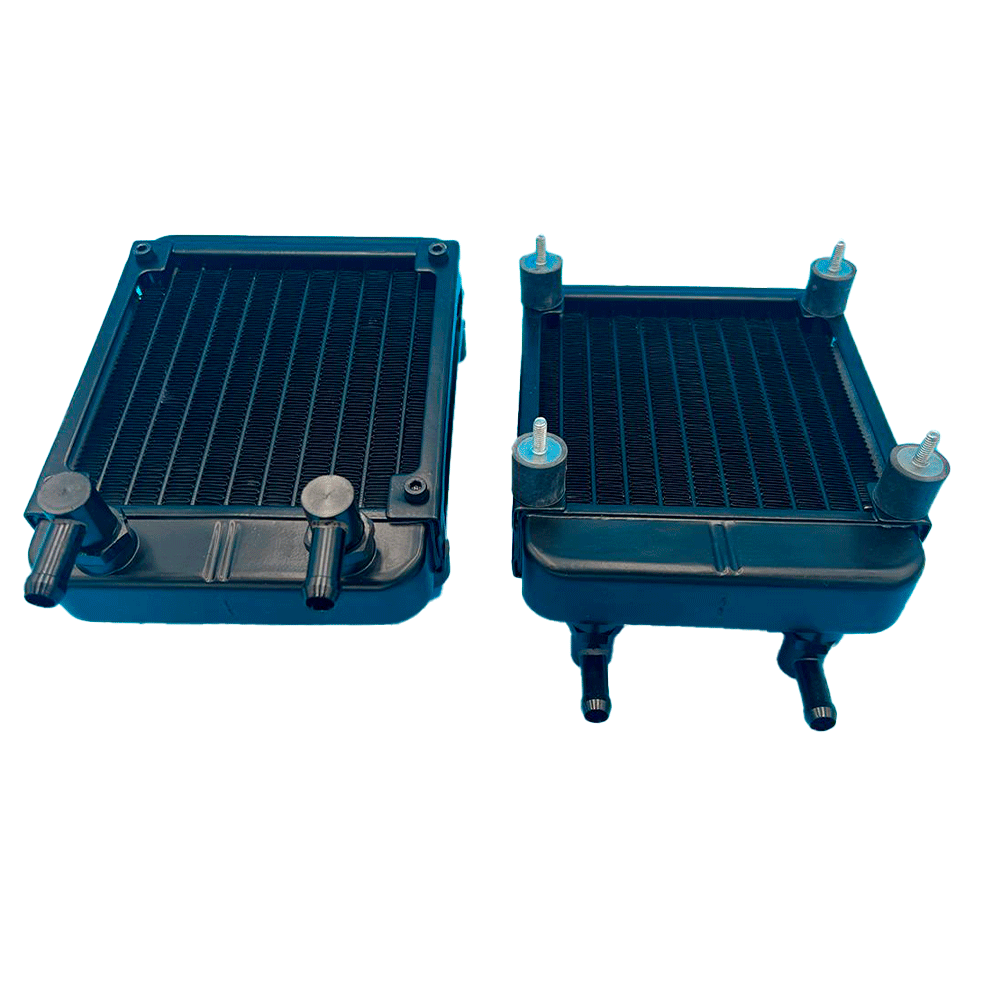

Weight of cooling system; 2kg (including 800ml coolant)
