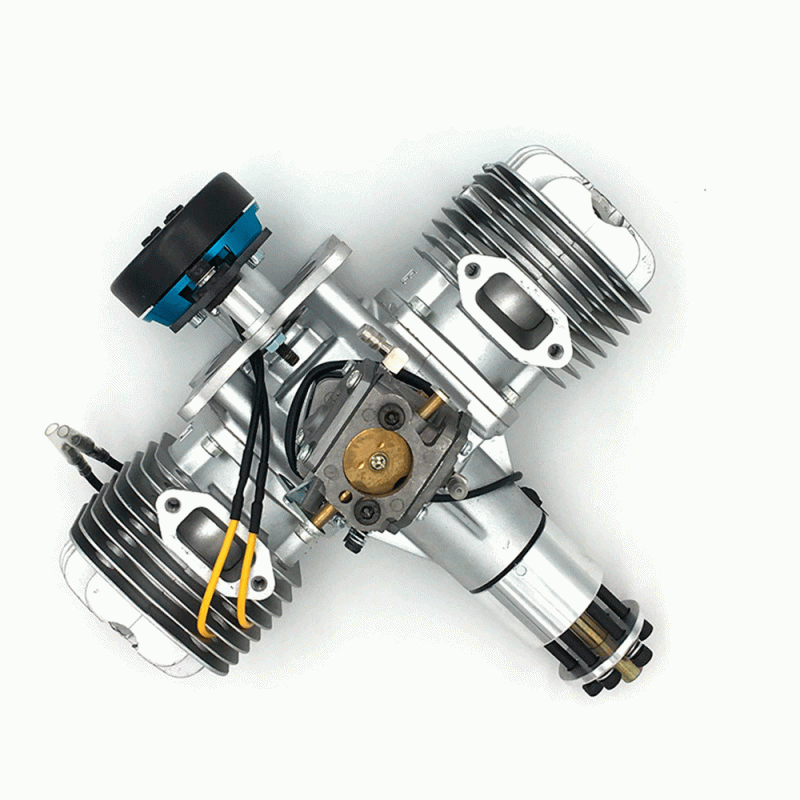

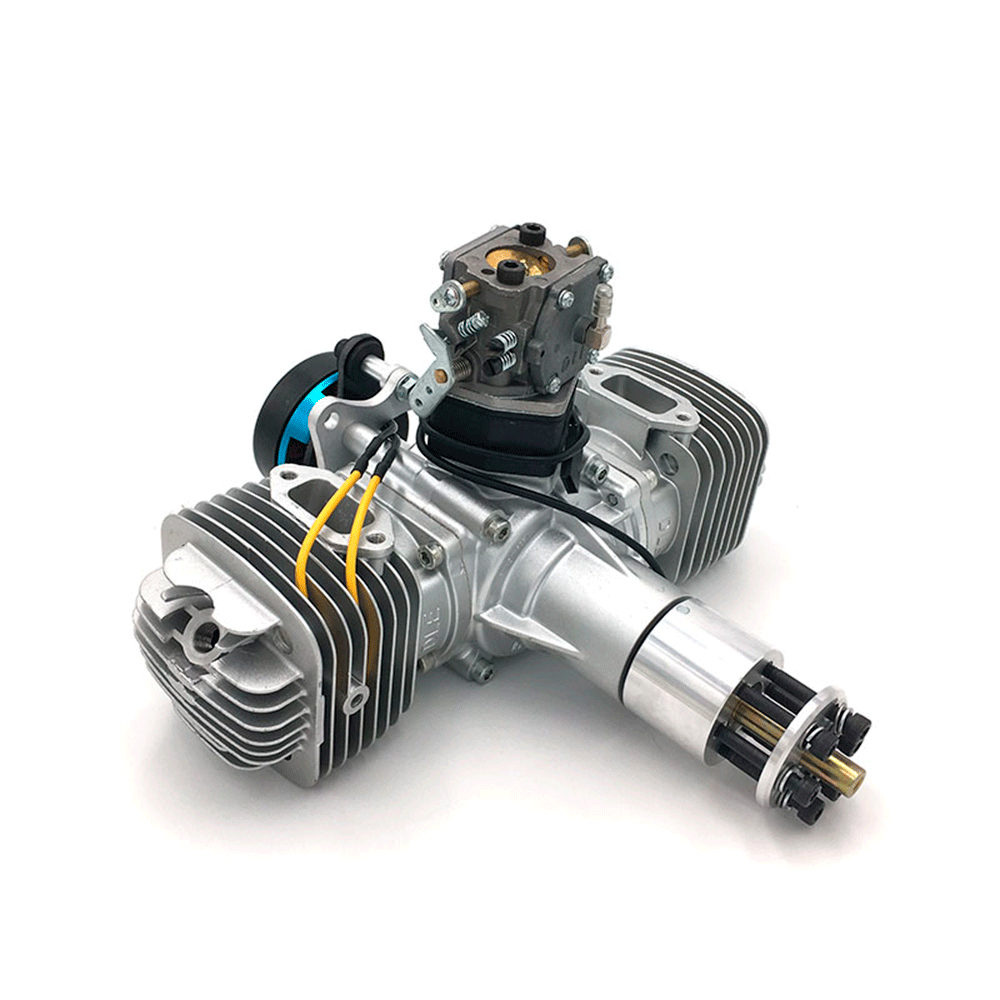

MOTOR DL ENGINE 120CC GAS W/ALTERNATOR 180W DLE120-T

MOTOR DL ENGINE 120CC GAS W/ALTERNATOR 180W DLE120-T

MOTOR DL ENGINE 120CC GAS W/ALTERNATOR 180W DLE120-T

MOTOR DL ENGINE 120CC GAS W/ALTERNATOR 180W DLE120-T

Ref: 405621

Estoque: Indisponível

R$ 8.079,67

Comprar

The power generating system designed to supply 14V & 180w power for equipment inside or integrated with UAV. For long-duration UAV, the power supply is very important for all the equipment inside. The complete DLE60 UAV engine includes the complete engine hardware and power generating system.

Alternator Features:

Alternator: dual channel output.

Output: 14+-0.5V (13.5-14.5V)

Output current: 13-15A.

2 yellow cables for module output.

Maximum input voltage for the module: 120V.

Maximum power for the module: 180W.

Maximum temperature: 200 C/degrees.

Engine Features:

Performance: 12HP / 7500rpm

Idle speed: 1300 rpm/min

Static thrust: 26.5 kg / 100 meters altitude | 23.5 kg / 1800 meters altitude

Recommended propeller: 26x10; 26x12 ; 27 x10 ; 28x10

Spark plug type: NGK CM6
