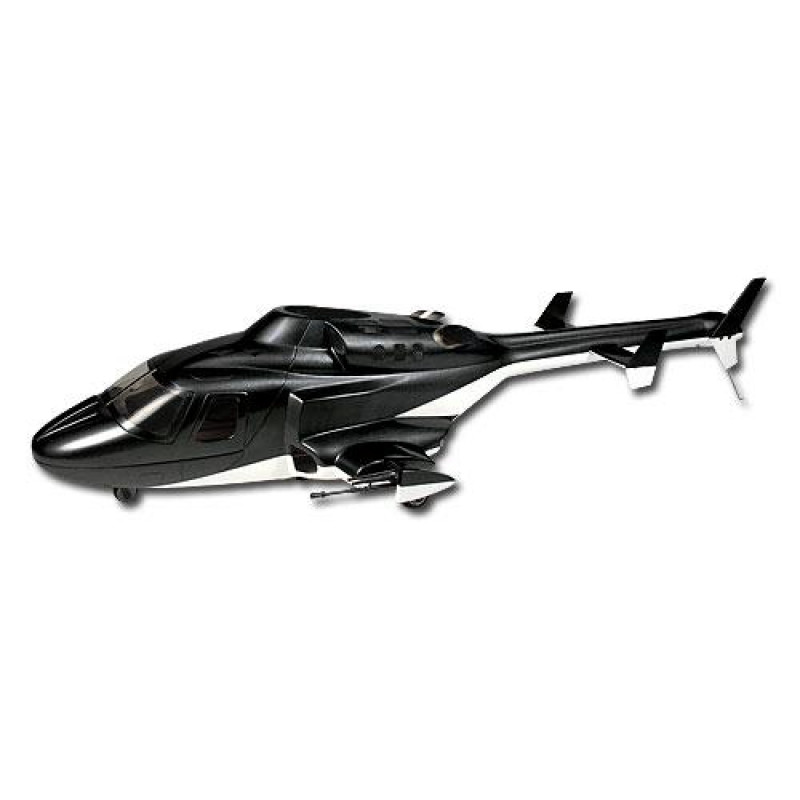

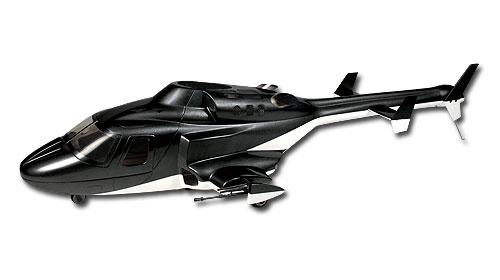

TR FUSELAGE SCALE FOR 450 KZ0820116TA

TR FUSELAGE SCALE FOR 450 KZ0820116TA

Ref: 40464

Estoque: Indisponível

R$ 720,82

Comprar

Length,Width,Height Lateral view:

Illustration1:Servo assembly for alloy retractable landing gears and linkage rod (suitable for 9g servo as like as DS410)

Illustration2:Retractable functionality

Illustration3:Machine gun

Illustration4:Rocket gun

Package:

Instructions:	Specification:
ÂœSuitable for T-REX450 Helicopter. ÂœRetractable functionality. ÂœRealistic military equipment refined version. ÂœEasy assembly, retractable landing gear with smart towbar design, just needs a single DS410 servo is enough to tow 3 sets of landing gears. ÂœNon screw canopy cover design which convenient for battery's maintenance.	ÂœBody length:790mm ÂœBody width:260mm ÂœBody high:220mm ÂœWeight:370g ÂœColor carton:77.5x28x15cm ÂœOuter carton:53.2x32.5x80.2cm ,4sets/ctn
	Accessory:

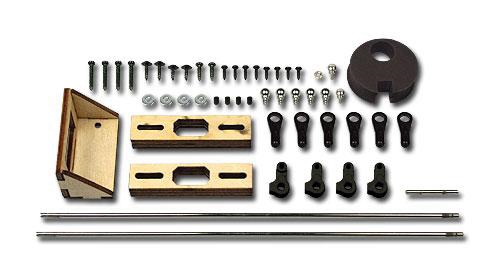

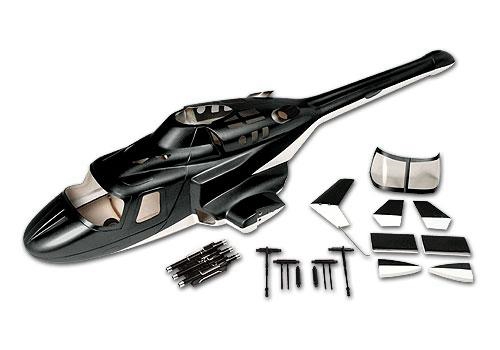

	ÂœFuselage x 1 ÂœCanopy cover x 1 ÂœWindow cover x 1 ÂœTail unit cover x 1 ÂœVertical stabilizer (B) x 1 ÂœVertical stabilizer (S) x 2 ÂœStabilizer x 2 ÂœMachine gun mount x 2 ÂœMachine gun(Long) x 2 ÂœMachine gun supporting tube(Short) x 2 ÂœMachine gun supporting tube x 2 ÂœRocket Launcher x 1 ÂœPipe mount x 1 ÂœServo mount x 1 ÂœFuselage Frame x 2 ÂœStainless steel linkage rod x 2(Φ2x173mm) ÂœStainless steel linkage rod x 1(Φ2x23mm) ÂœWheel control arm(A) x 3 ÂœWheel control arm(B) x 1 ÂœBall link x 6 ÂœLinkage ball A(T2.6x3.5) x 5(Φ4.75x8.18mm) ÂœLinkage ball A(M2x3.5) x1(Φ4.75x8.18mm) ÂœLinkage ball E(M2x2.5)x 1(Φ4.75x6.3mm) ÂœM2 nut x1 ÂœSet screw x 4(M3x3mm) ÂœWasher side self tapping screw x 2(T2x5mm) ÂœWasher side self tapping screw x 2(T2x8mm) ÂœSelf-tapping screw x 4(T1.8x6mm) ÂœSelf-tapping screw x 4(T2x14mm) ÂœSelf-tapping screw x 4(T2x5mm) ÂœSelf-tapping screw x 2(T2x8mm) ÂœWasher x 4(Φ2xΦ6x0.6mm)
