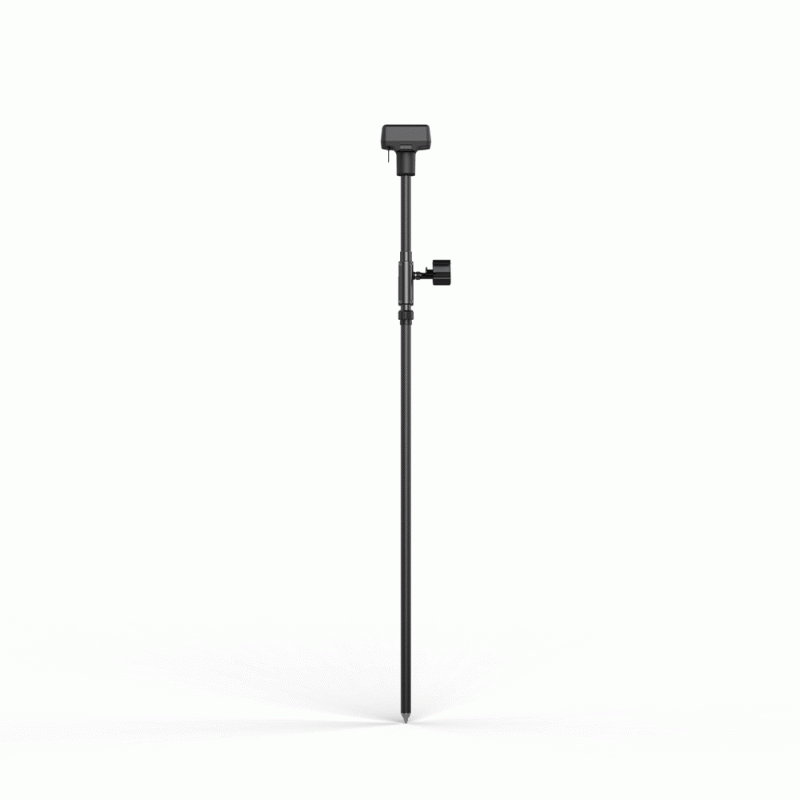

DJI D-RTK 2 HIGH PRECISION GNSS MOBILE STATION RB

Ref: 387897
Estoque: Indisponível
R$ 24.029,92
Comprar
(Refurbished Unit)


Overview

Supports four global satellite navigation systems — BeiDou, GPS, Galileo, GLONASS, and 11-frequency satellite reception, providing real-time differential corrections to facilitate the aircraft in centimeter-level precision positioning. It also supports coordinated operations involving multiple drones and an IP65 protection rating.


Highlights
  • Supports: GPS: L1 C/A, L2, L5; BEIDOU: B1, B2, B3; GLONASS: F1, F2; Galileo: E1, E5A, E5B
  • Connect multiple drones to conduct coordinated operations
  • IP65 Ingress Protection

In The Box
  • D-RTK 2 Body × 1
  • Extension Rod × 1
  • Charging Hub × 1
  • AC Power Adapter × 1
  • Intelligent Battery (WB37) × 2
  • Battery Cover × 1
  • AC Power Cable × 1
  • USB-C Cable × 1
  • USB-C OTG Cable × 1
  • Hex Key × 1

Specifications
  • Simultaneously receives:
  • GPS: L1 C/A, L2, L5
  • BeiDou: B1, B2, B3
  • GLONASS: F1, F2
  • Galileo: E1, E5A, E5B
  • Positioning Accuracy:
  • Single Point Horizontal: 1.5 m (RMS)
  • Vertical: 3.0 m (RMS)
  • Horizontal (RTK FIX): 1 cm+1 ppm (RMS)
  • Vertical (RTK FIX): 2 cm + 1 ppm (RMS)
  • 1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less. For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station.
  • IP65 Rating
  • Operating Temperature: -20° to 55° C (4° to 131° F )

Compatibility
  • DJI Inspire 3
  • Phantom 4 RTK
  • Matrice 350 RTK
  • Matrice 300 RTK
