AVIAO PILOT RC F86F JET 82" (2.1M) SCHEME 02

Ref: 386951
Estoque: Disponível
R$ 34.319,91
Comprar

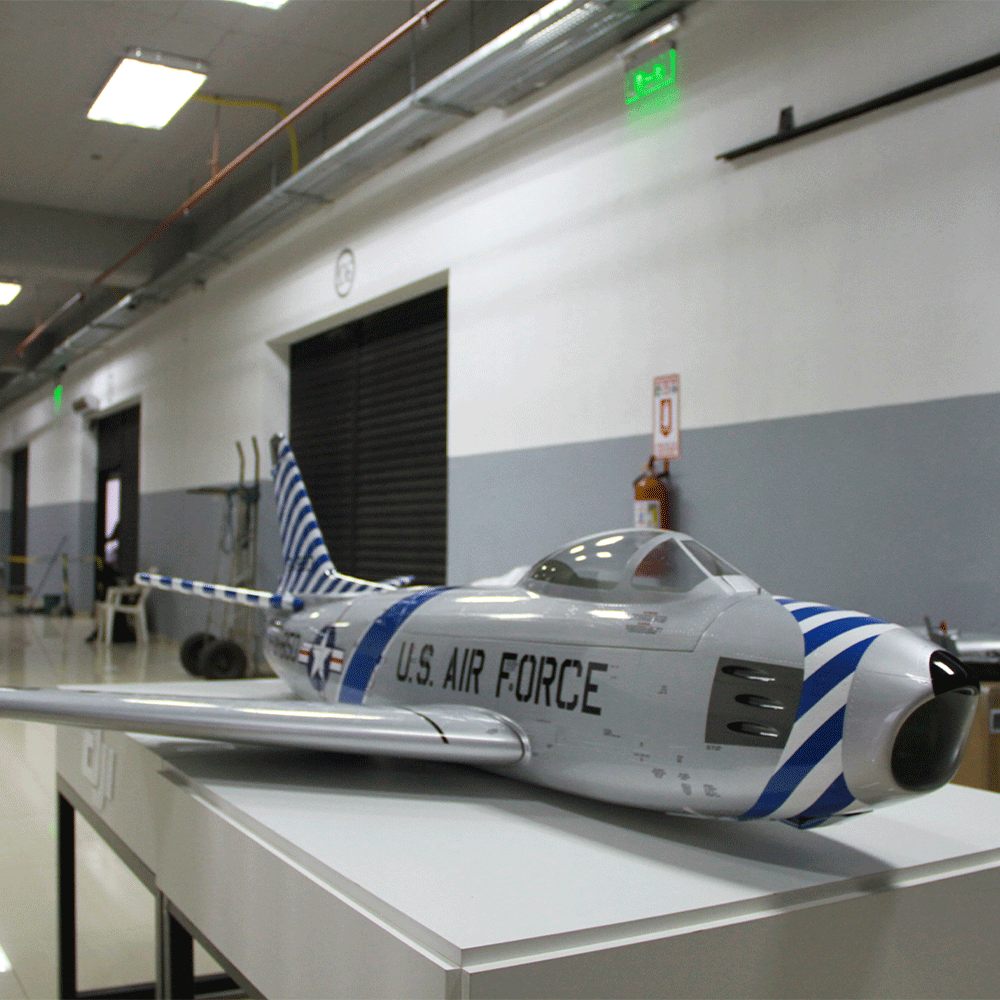

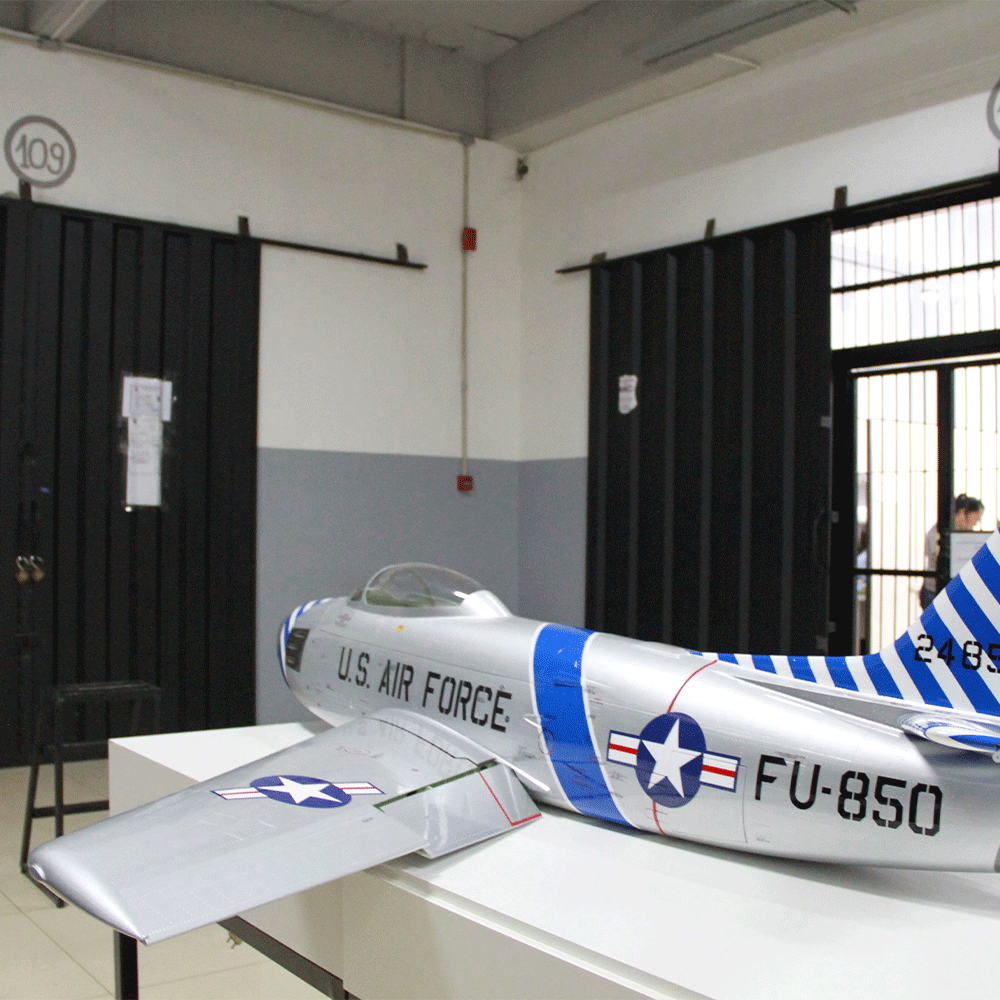

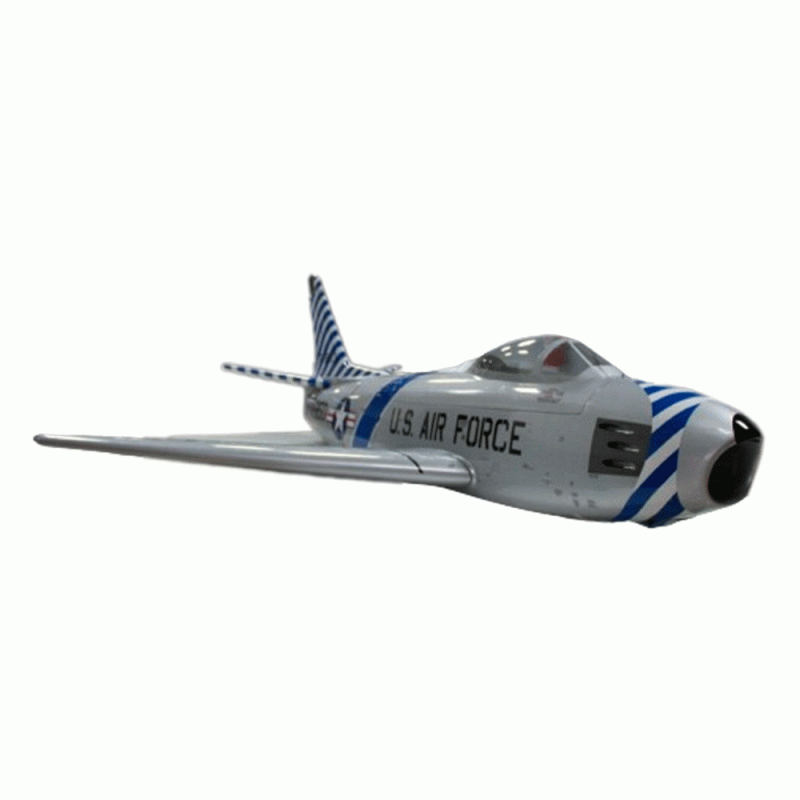

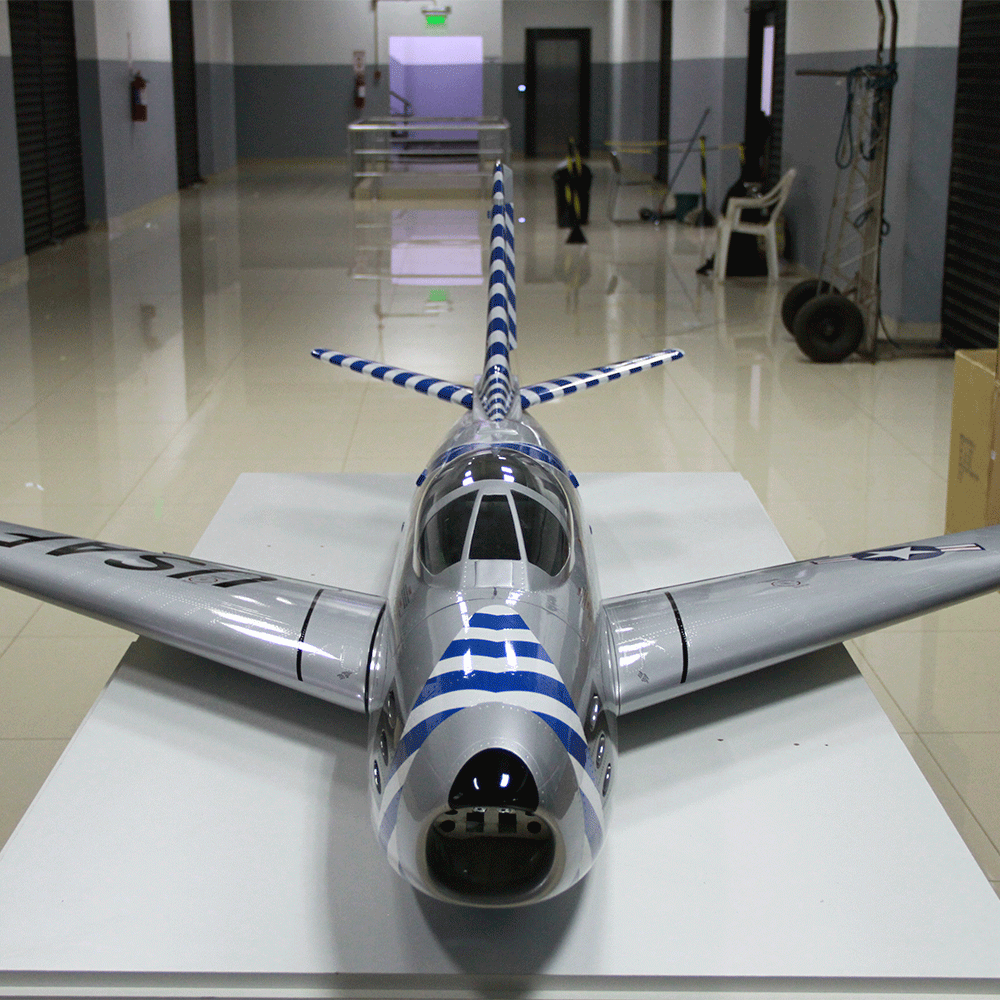

F86F 2.1m (82″)

Proud to present Pilot-RC’s first true scale plane. We wanted a model that was iconic, flies amazingly well, and had not been overly done already.

Following the success of our F86D, we are pleased to satisfy our F86F fans as well!



SPECIFICATIONS:

  • Model: F86F
  • Wingspan: 77″ (1,957mm)
  • Length: 82.3″ (2,090mm)
  • Wing area: 1,304″2 (8,414cm2)

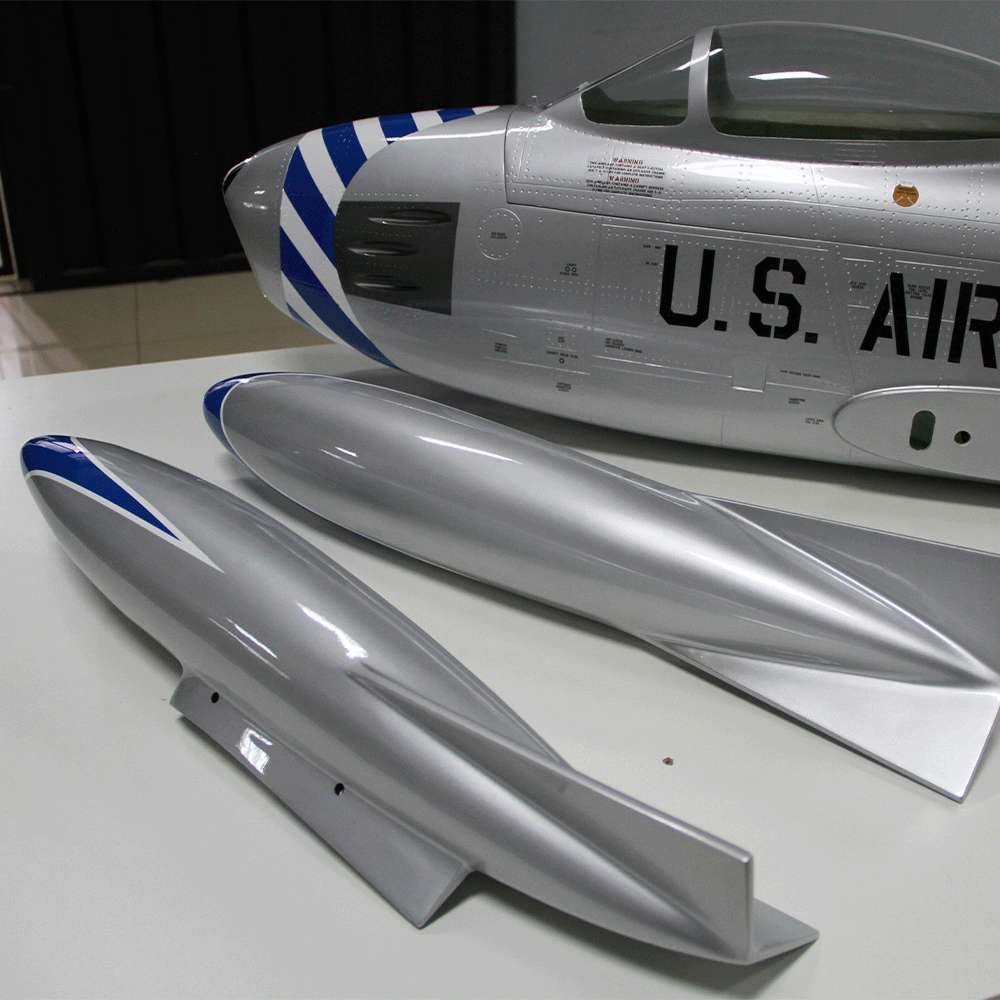

  • Weight: 31.5lbs (14.3kg) without speed brake, drop tank or cockpit



FEATURES:

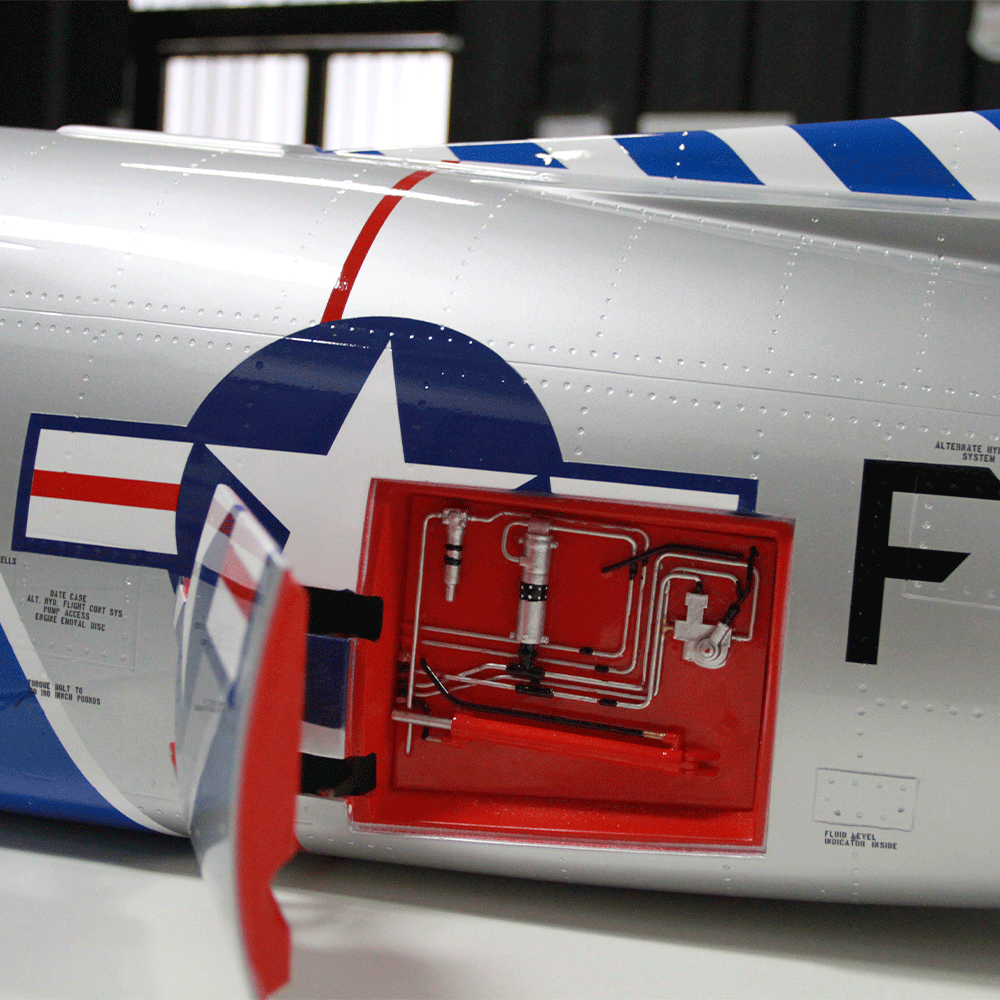

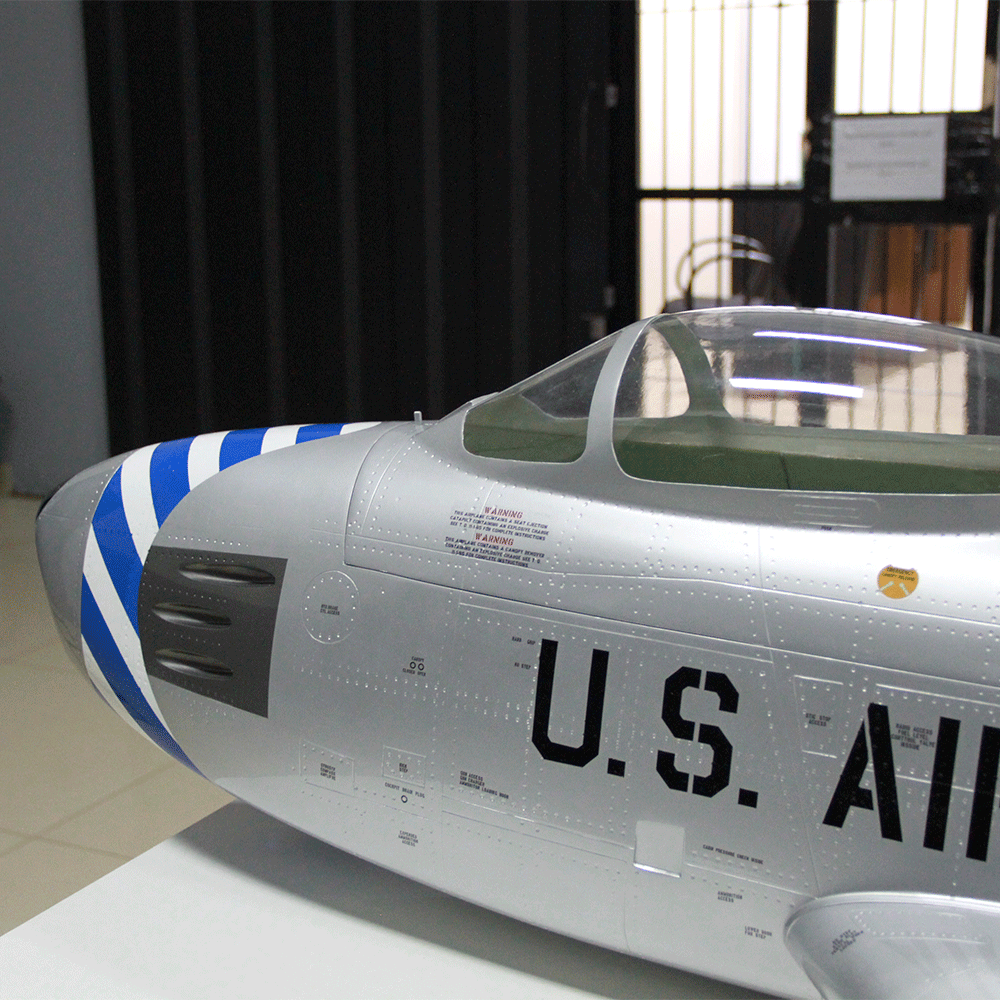

  • Full scale detail with rivets panel lines, simulated hatches, etc…
  • Full composite construction, lightweight and strong

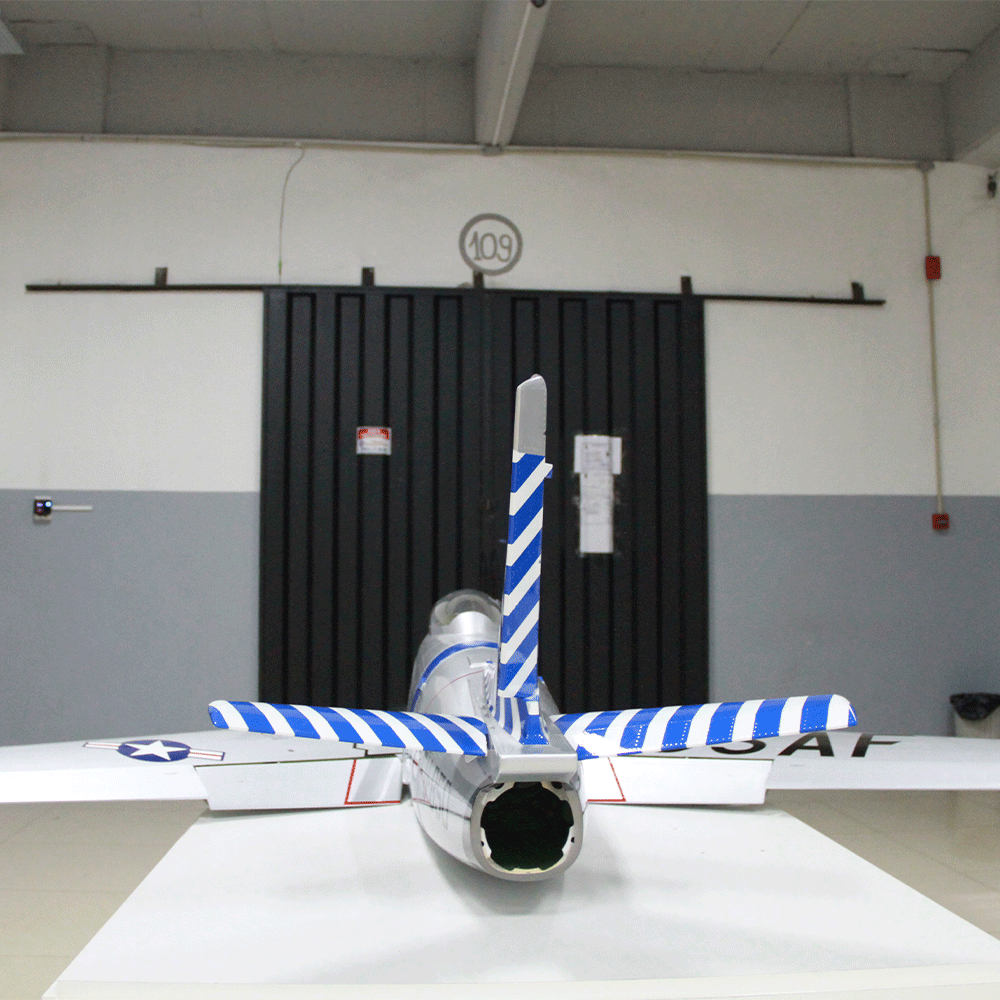

  • Two piece wing and two piece full flying stabiliser, all for easy transport
  • Quick release wings, no tools required
  • Quick release elevator system, clamp in place with a couple of turns to the bolt
  • Painted outside the mold so no seam lines
  • Fully hidden linkages for flap, rudder and ailerons; with no horn, servo arm, ball links or pushrods exposed

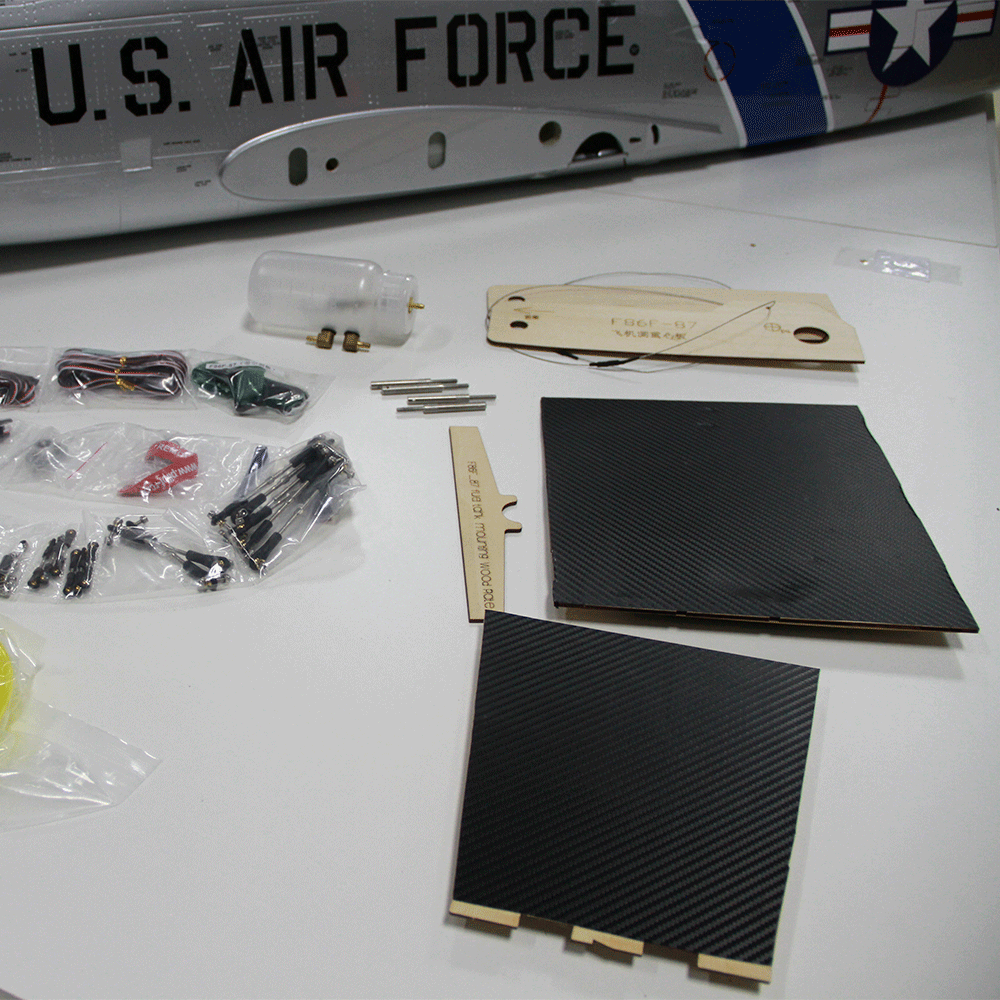

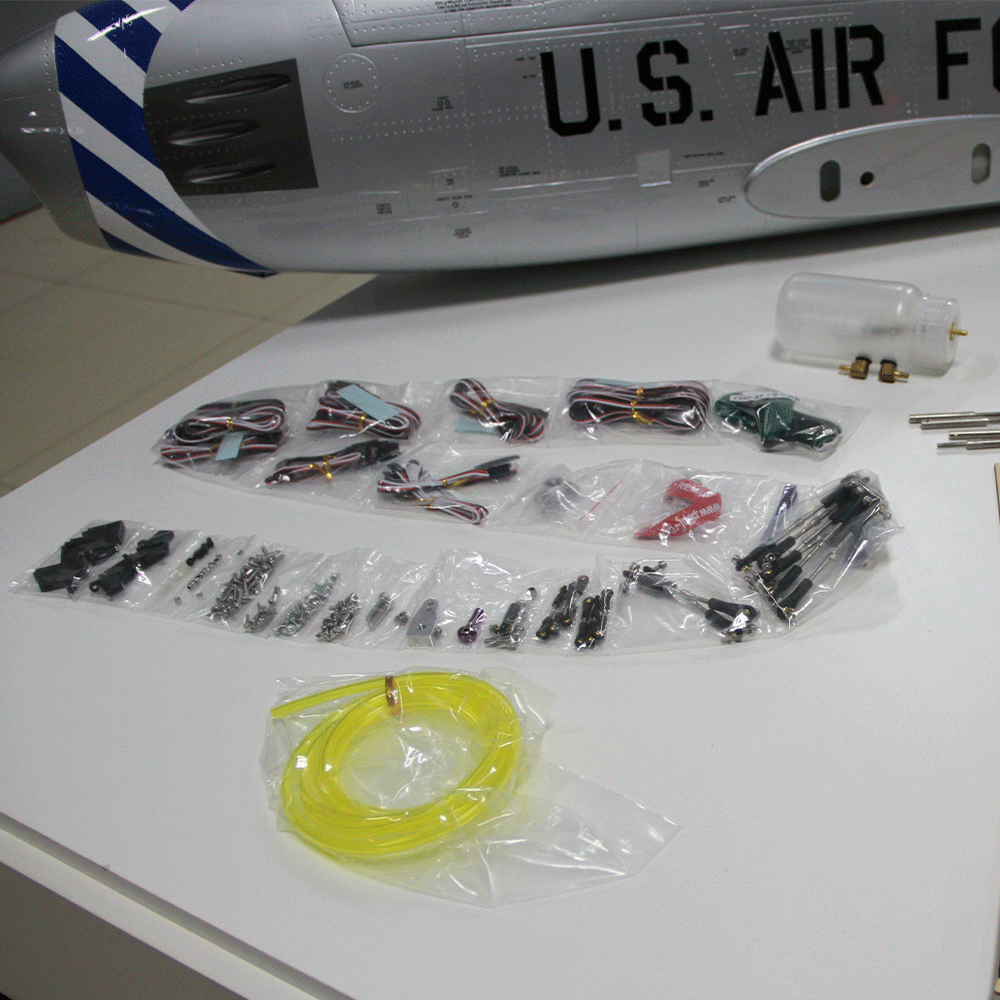

INCLUDED HARDWARE:

  • Complete air frame (including aluminium wing-tubes and fibreglass control horns)
  • Servo extension leads

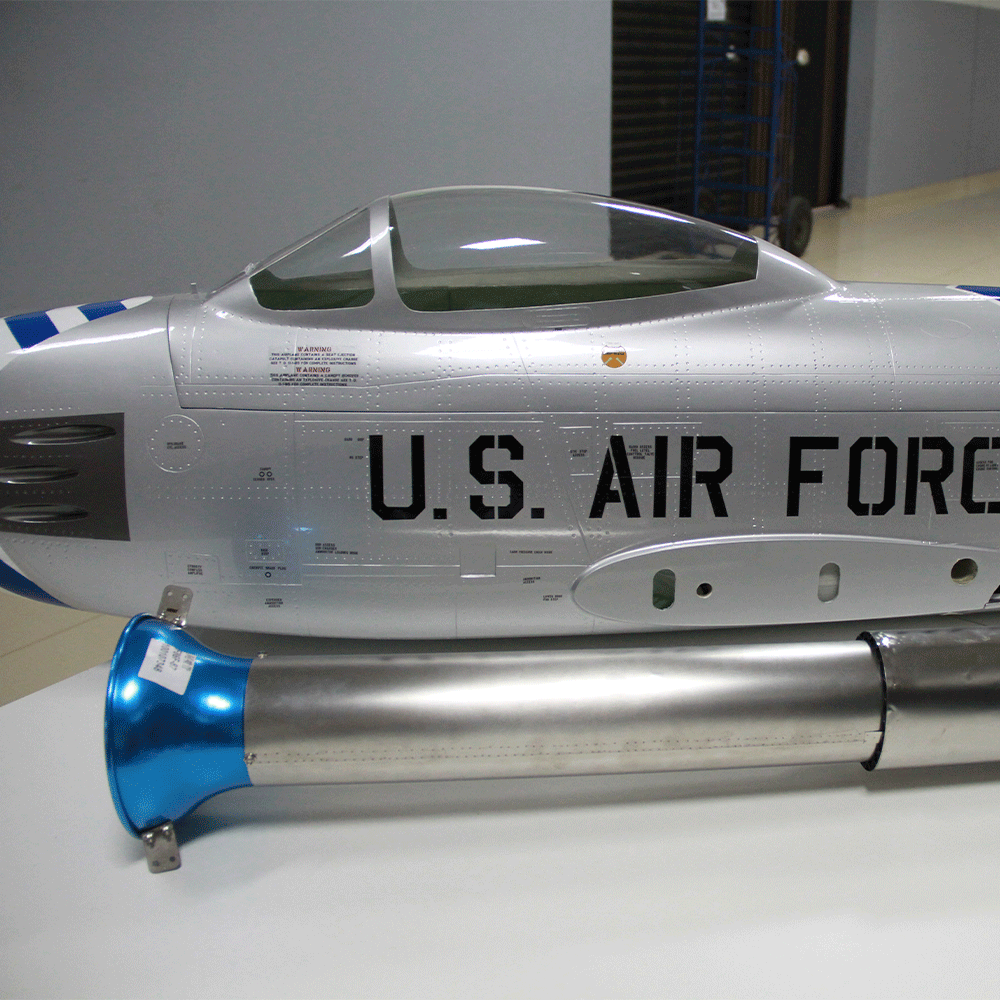

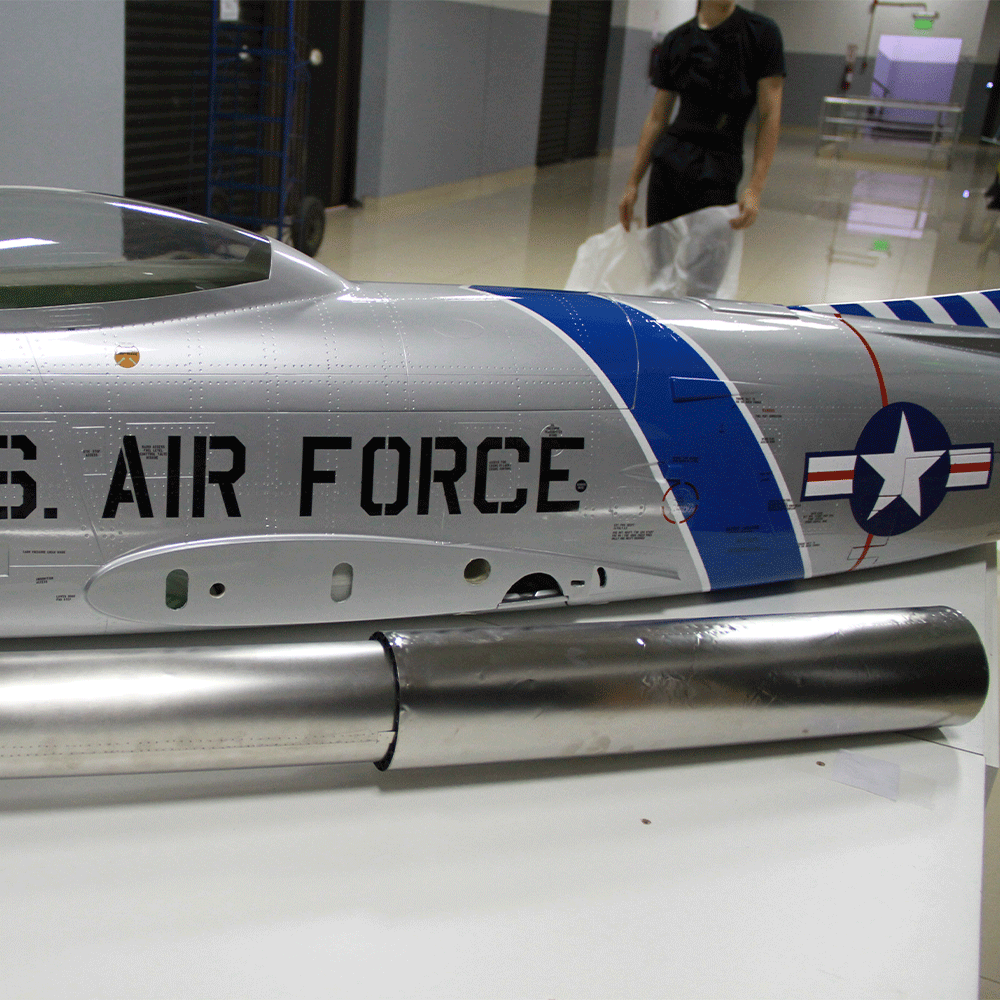

  • Dual wall tail pipe (for 120-180N turbines)
  • Fiberglass fuel tanks (2100ml x2) and UAT (250ml)
  • Pre-prepared pushrods with ball links
  • Pre-glued control horns
  • Comes with air intake and turbine port covers



REQUIRED HARDWARE:

Turbine: 120-180N

Servos: (x11 + 2 optional)

x5 super high torque (minimum 40kg) // Uses x1 per elevator, x1 per flap, x1 on rudder

x2 super high torque (minimum 25kg) // Uses x1 per aileron

x4 middle size servo, 35 x 15 x 30mm // Uses x3 for gear doors and x1 for steering

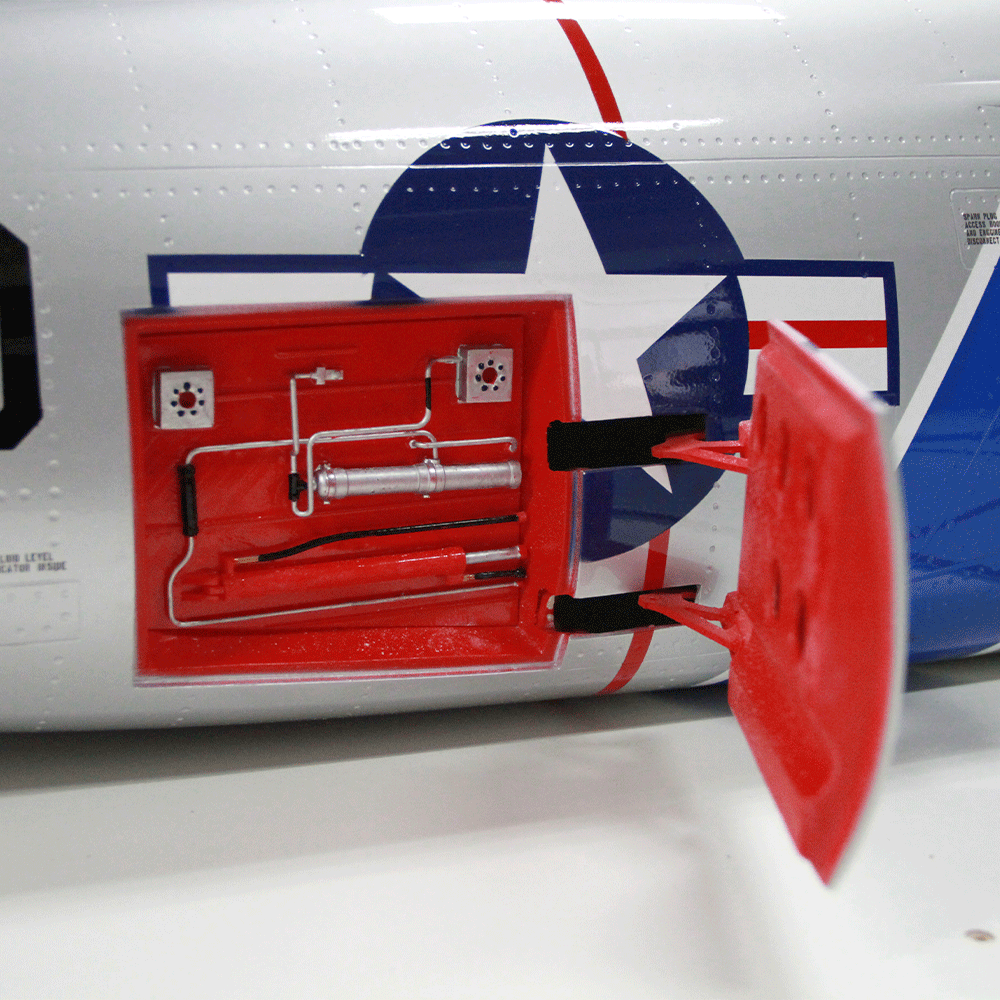

+2 super high torque (minimum 40kg) if installing Speed Brake

Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.
